Overhead Crane Bridge Crane End Carriage / End Beam

Shanghai Yiying Crane Machinery Co., Ltd.
  • Certification：CE
  • Condition：New
  • Operation Form：Remote Control
  • Maximum Lifting Height：<10m
  • Maximum Lifting Weight：3t
  • Main Girder Form：Single Girder

Base Info

  • Model NO.：POI
  • Type：Beam
  • Product：Overhead Crane Bridge Crane End Carriage , End Bea
  • Color：Red
  • Capacity：1-10ton
  • Motor：with Motor
  • Controller：with Remote Control
  • Transport Package：Wood Box
  • Specification：capacity 3ton
  • Trademark：hugo
  • Origin：China
  • Production Capacity：20pieces ,Week

Description

Basic Info.

Model NO. POI Type Beam Product Overhead Crane Bridge Crane End Carriage / End Bea Color Red Capacity 1-10ton Motor with Motor Controller with Remote Control Transport Package Wood Box Specification capacity 3ton Trademark hugo Origin China Production Capacity 20pieces /Week

Product Description

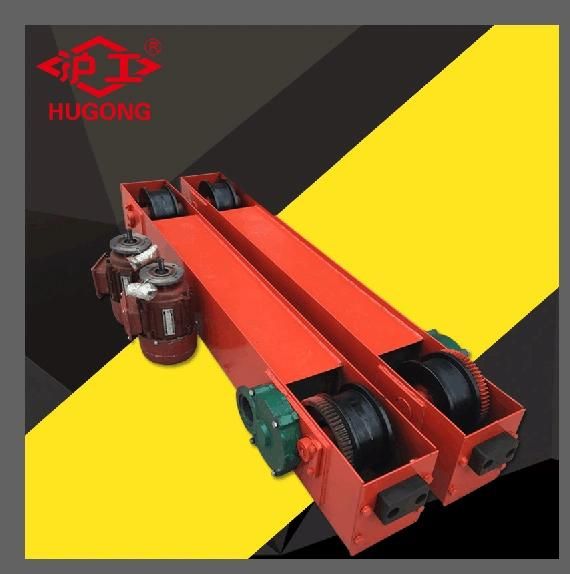

Overhead Crane Bridge Crane End Carriage / End Beam

Overhead Crane Bridge Crane End Carriage / End Beam

Overhead Crane Bridge Crane End Carriage / End Beam



Description Of Crane End Carriage

End carriage of European single girder crane using rectangular steel tube as components, NC boring milling customized machine , completes opening , boring , milling ,and F series reducer, hollow shaft drive. High work level, wide range of speed regulation, follow the word trend.
A complete set of end carriage including wheels, motors, main beam connecting plates, main beam connecting bolts, stamping plates , polyurethane buffers and so on.

Our end carriages are compact, rail-mounted travel units for direct connection to crane girders and other load-bearing structures. The end carriages consist of a torsionally rigid box section, wheel blocks and one of our geared motors. They offer excellent travel characteristics - also for high loads

Features Of  End Beam:

• optimum travel characteristics
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility
• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.

Overhead Crane Bridge Crane End Carriage / End Beam

Overhead Crane Bridge Crane End Carriage / End Beam


Main Features:

1.High rigidity

2.Torsionally rigid, enclosed box-section profile (reinforced connection, welded diaphragm plate)

3.Engineering tolerances in the crane girder connection area

4.Optimum travel characteristics thanks to precise travel wheel axle arrangement and exact adjustment of the crane span dimension

5.Low wear

6.Maintenance-free travel drives thanks to anti-friction bearings lubricated for life and travel wheels made of spheroidal-graphite cast iron

Usage:

Overhead Crane Bridge Crane End Carriage / End Beam

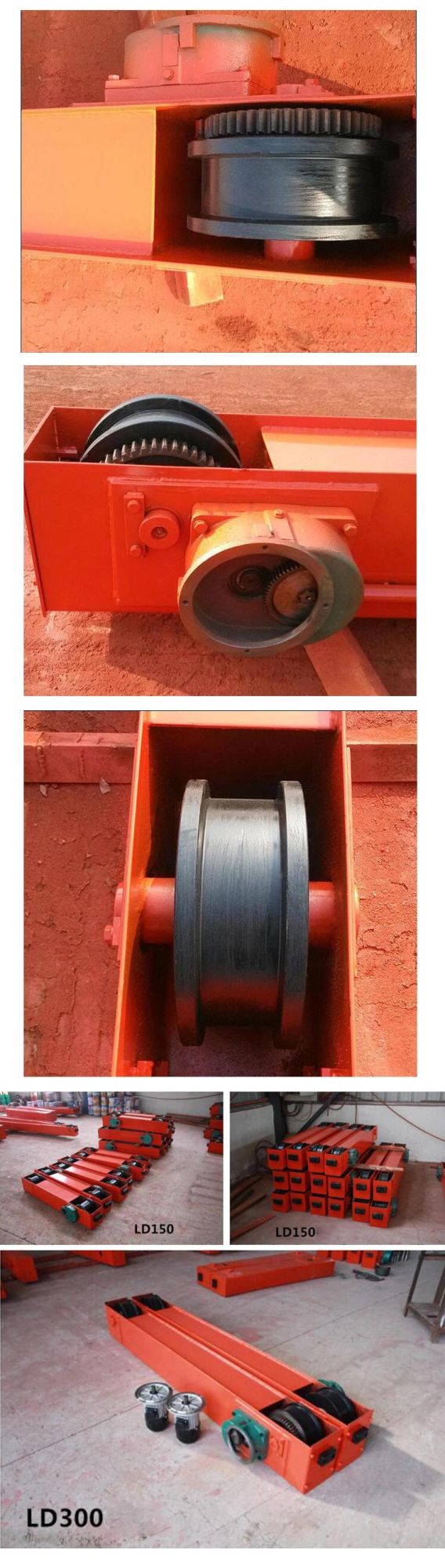

Detail and Factory show:

Overhead Crane Bridge Crane End Carriage / End Beam
