• Model NO.：QY30K5C
• Rated Lifting Moment：1132kn.M
• Engine Rated Power/Rpm：221,2200kw,(R,Min)
• Transport Package：Comply with Export Packaging Requirements
• Specification：12850*2550*3480mm
• Trademark：XCMG
• Origin：Jiangsu, China
• HS Code：87059091
• Production Capacity：10000,Year

DescriptionUnitParameter valueOverall lengthmm12850Overall widthmm2550Overall Heightmm3480Wheel Basemm4500+1350Trackmm2059/2074/1834Total vehicle mass in travel configurationkg33000Axle load   1st axlekg74002nd axle12800Engine Model SC9DF300.1Q5Engine rated powerkw/(r/min)221/2200Engine rated torqueN.m/(r/min)1250/1400Max. travel speedkm/h≥90Min. turning diameterm≤21Min. ground clearancemm250Max. grade ability%≥40Approach angle°11Departure angle°13.5Braking distance (at 30 km/h, full load )m≤10

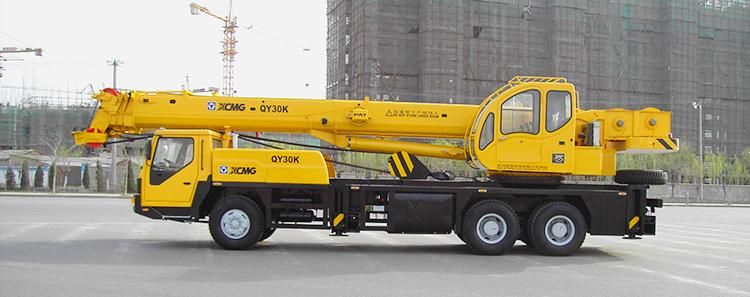

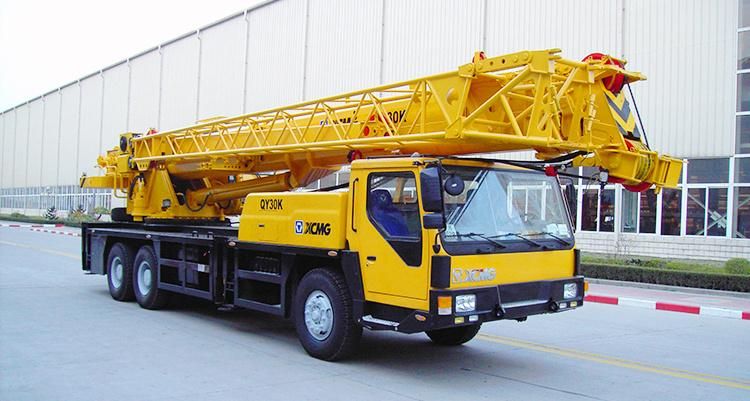

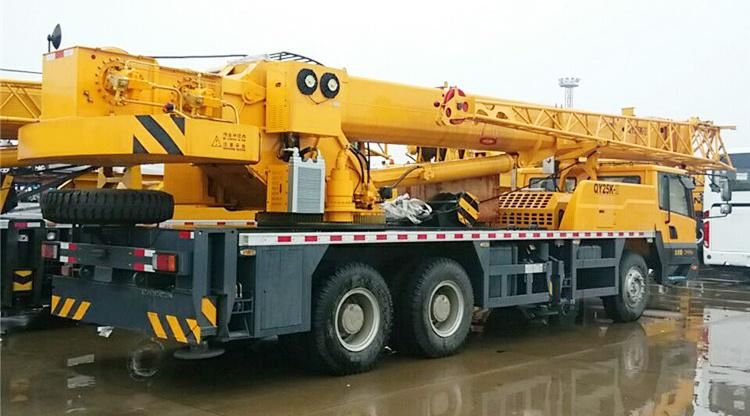

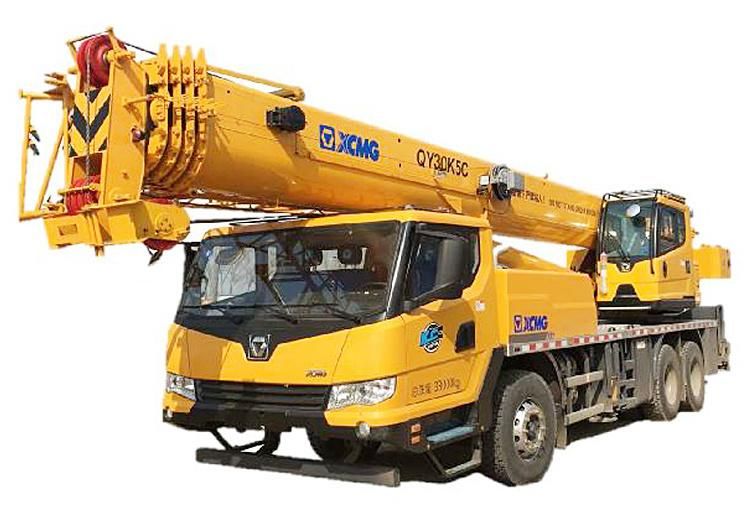

[Product Picture]





[Company Information]

[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
