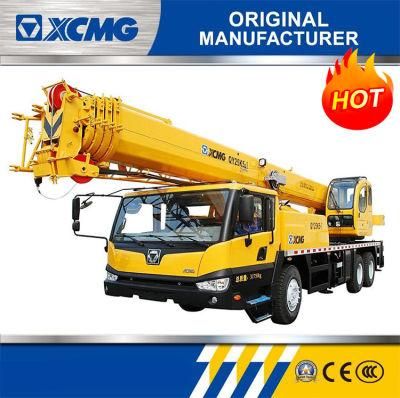

Factory Qy25e Telescopic Boom Mounted Truck Crane Factory Price
Newindu Construction Engineering (Shanghai) Co., Ltd.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Three-Arm
Base Info
- Model NO.：QY25E
- Type：Straight Arm
- Max. Lifting Height：41.5m
- Rated Lifting Moment：962kn.M
- Span：5.3m * 6.2m

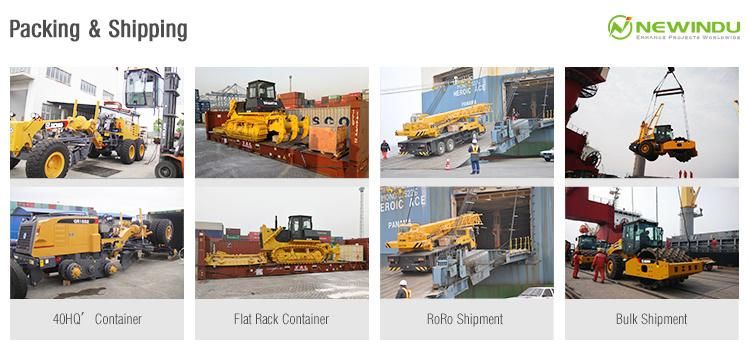

- Transport Package：Nude Packing by Roro Shipment
- Specification：25ton
- Trademark：Newindu
- Origin：China
- HS Code：8705109100
- Production Capacity：100sets,Month
Description
Lifting performanceMax. total rated lifting capacity t 25 Min. rated working radius m 3 Turning radius at turntable tail m ≤3.56 Max. load moment Base boom kN.m 806 Fully extended boom kN.m 521 Fully extended boom + Jib kN.m 280 Outrigger span Longitudinal m 4.8 Lateral m 6 Lifting height Base boom m ≥10.5 Fully extended boom m ≥31.5 Fully extended boom + Jib (jib offset 5°) m ≥39.2 Fully extended boom + Jib (jib offset 30°) m ≥38 Working speed Boom raising time s ≤72 Boom full extension time s ≤115 Max. swing speed r/min 3 Hoist speed Main winch Full load m/min ≥90 (single line at 3rd layer) No load m/min ≥120 Aux. winch Full load m/min ≥90 No load m/min ≥120 Noise limit Crane exterior noise dB (A) ≤120 At seated position dB (A) ≤90
