• Model NO.：XCT8L4
• Shaft Number：3
• Crane Jib：Two-Arm
• Type：Folding
• Engine Model：Yc4e140-42,Bf4m2012-14e4
• Overall Length：9375mm
• Overall Width：2400mm
• Overall Height：3240,3170mm
• Engine Rated Power：103,2600 106,2500(R,Min)
• Engine Rated Torque：430,(1300-1600) 500,1500n.M,(R,Min)
• Max. Travel Speed：90km,H
• Max. Grade Ability：35%
• Fuel Consumption for 100km：18L
• Max. Rated Total Lifting Capacity：8t
• Transport Package：Nude Packing
• Specification：8t
• Trademark：Maxizm
• Origin：Jiangsu, China
• HS Code：8705109200
• Production Capacity：10000 Units,Year

Basic Info.

Model NO. XCT8L4 Shaft Number 3 Crane Jib Two-Arm Type Folding Engine Model Yc4e140-42/Bf4m2012-14e4 Overall Length 9375mm Overall Width 2400mm Overall Height 3240/3170mm Engine Rated Power 103/2600 106/2500(R/Min) Engine Rated Torque 430/(1300-1600) 500/1500n.M/(R/Min) Max. Travel Speed 90km/H Max. Grade Ability 35% Fuel Consumption for 100km 18L Max. Rated Total Lifting Capacity 8t Transport Package Nude Packing Specification 8t Trademark Maxizm Origin Jiangsu, China HS Code 8705109200 Production Capacity 10000 Units/Year

Product Description

8 Ton XCT8L4 Mini Truck Crane RC Mobile Hydraulic Machins

Product Description

 8 ton Truck Crane XCT8L4.

1.High performance

Overall optimized matching technology is adopted with high strength boomed optimized aspect ratio, which reduces boom torsion, side-bending, etc. New single-cylinder pinning telescoping system brings higher telescoping reliability. Inserted sliders may efficiently increase the overlapping length of adjacent boom sections and eliminate point contact or line contact between slider and boom, thus local buckling phenomenon is effectively avoided. Compact boom tail structure improves boom telescoping ratio, which effectively contributes to longer boom length. The boom with six sections can be extended up to 64m, 1mhigher than the longest boom in the class in the industry, with performance improved by 15~20%.

XCT100 is also the first four-wheel drive truck crane domestically, which can meet the need under various road conditions. Driving mode can be chosen automatically according to road conditions. Axles 2, 3, 4 are used for driving on the normal road to save fuel. Axles 1, 2, 3, 4 are used for driving on the rough road to realize a more flexible chassis with higher pass-ability.



2.Energy-saving

Equipped with high-precision sensors and large power radiator, new energy-saving hydraulic system adopts large displacement electric proportional variable pump with intelligent engine control technology to achieve higher energy utilization, lower heat production, improved system reliability and 15%fuel conservation. At the same time of improving manipulation smoothness, valve control technology advantage is also made full use of to realize higher operation stability, finer control, faster speed and perfect manipulation feeling.

Taken power and economy into consideration, matching low-speed large-torque power system perfectly combines optimal power and economy.



3.Intelligent

The latest control technology platform is adopted to update the system with the realization of intelligent crane operations and travel control, such as automatic planning of working conditions, winch servo control technology, lifting elevating compensation control technology, and other in-house developed intelligent boom technologies, contributing to improved automation of boom control and higher lifting safety to a large degree.

Road traveling and tight turning radius modes are available through rear-axle hydraulic control servo steering technology to ensure stable high-speed driving and flexible low-speed driving.



4.Appearance and ergonomics

The crane has newly designed G generation appearance of truck crane, which looks more sturdy and elegant. The entire crane has been ergonomically improved. The air suspensions equipped for the low-noise driver's cab improve driver comfort. New designed aluminums deck presents aesthetic.

Oriemac men-machine interactive system with the level of family car, i.e. Ergonomically designed work space, 13 intelligent and informative interactive techniques and user friendly men-machine interaction are available with vehicle condition clear at a glance

Specification


Dimension	Unit	XCT8L4
Overall length	mm	9375
Overall width	mm	2400
Overall height	mm	3240/3170
Weight
Total weight in travel	kg	12300/12100
Power
Engine model		YC4E140-42/BF4M2012-14E4
Engine rated power	kW/(r/min)	103/2600 106/2500
Engine rated torque	N.m/(r/min)	430/(1300-1600) 500/1500
Travel
Max. travel speed	km/h	90
Min. turning diameter	m	16
Min. ground clearance	mm	260
Approach angle	°	18
Departure angle	°	13
Max. grade ability	%	35
Fuel consumption for 100km	L	18
Main performence
Max. rated total lifting capacity	t	8
Min. rated working radius	m	3
Turning radius at turntable tail	m	2.327
Max. lifting torque	kN.m	302
Base boom	m	8.5
Max.main boom	m	25.6
Working speed
Boom lifting time	s	-
Boom full extension time	s	-
Max. swing speed	r/min	-
Max. speed of main winch (single rope)	m/min	-
Max. speed of aux. winch (single rope)	m/min	-

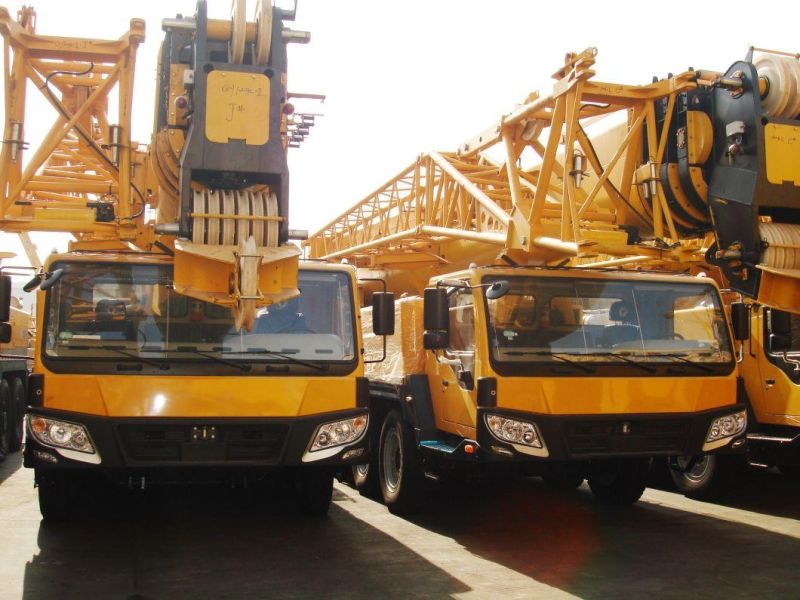

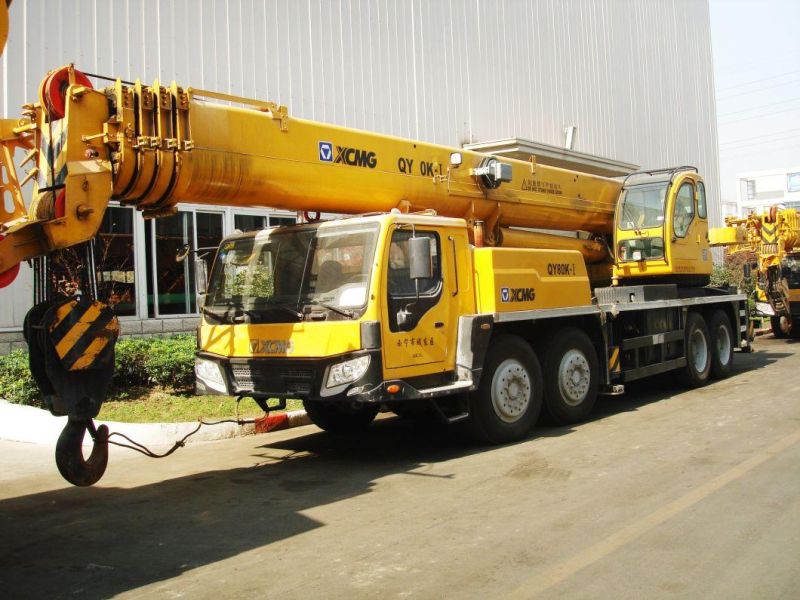

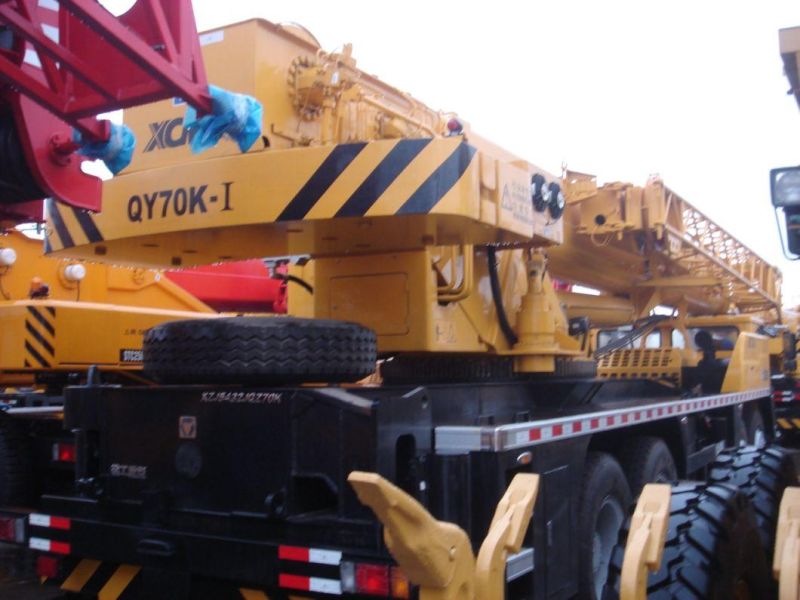

Product Photos
