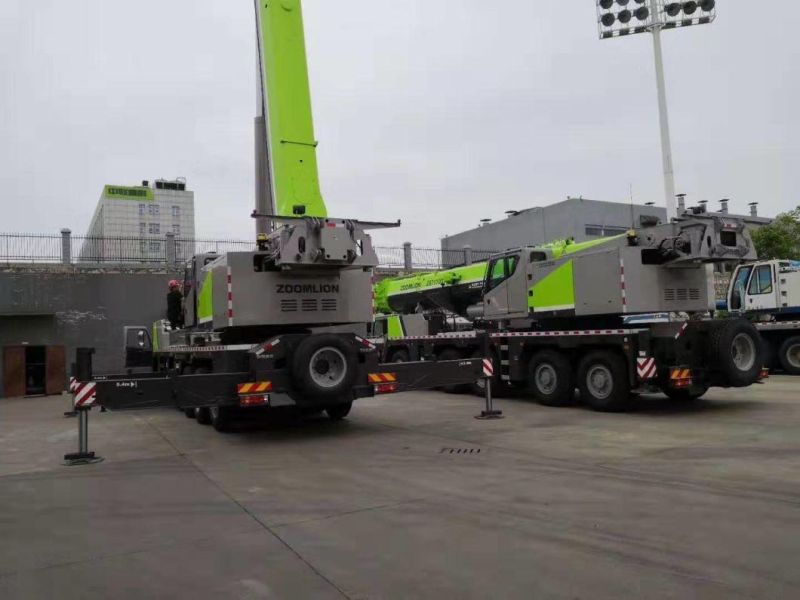

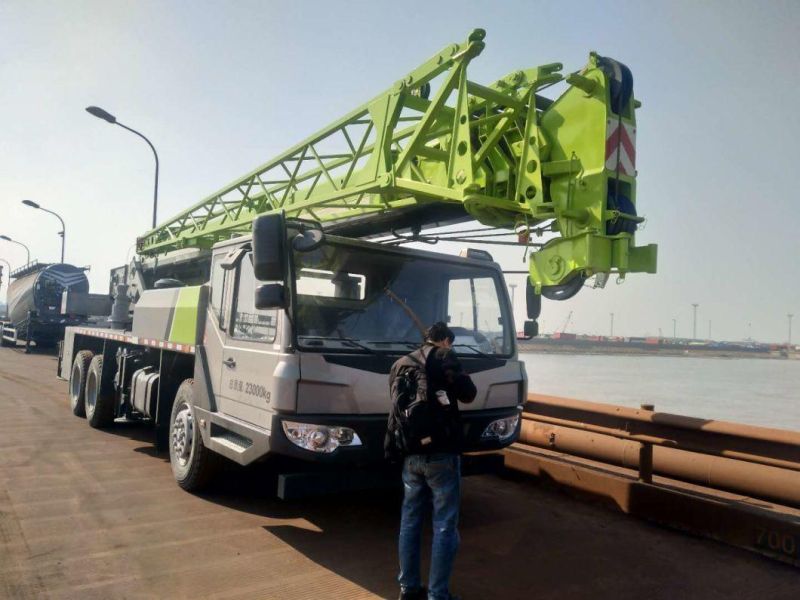

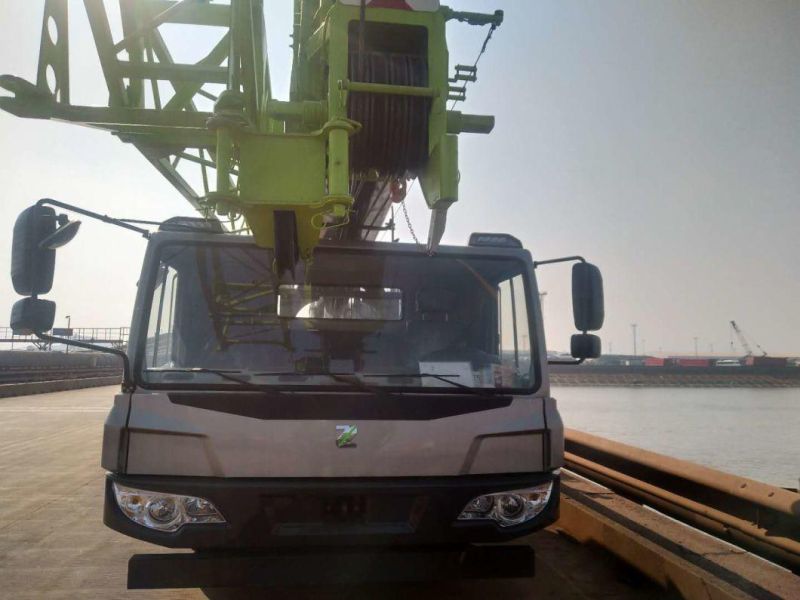

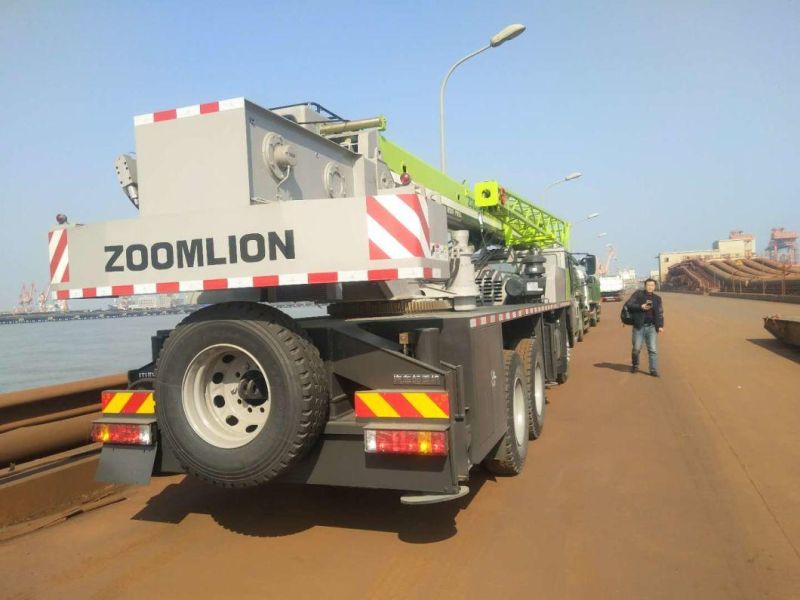

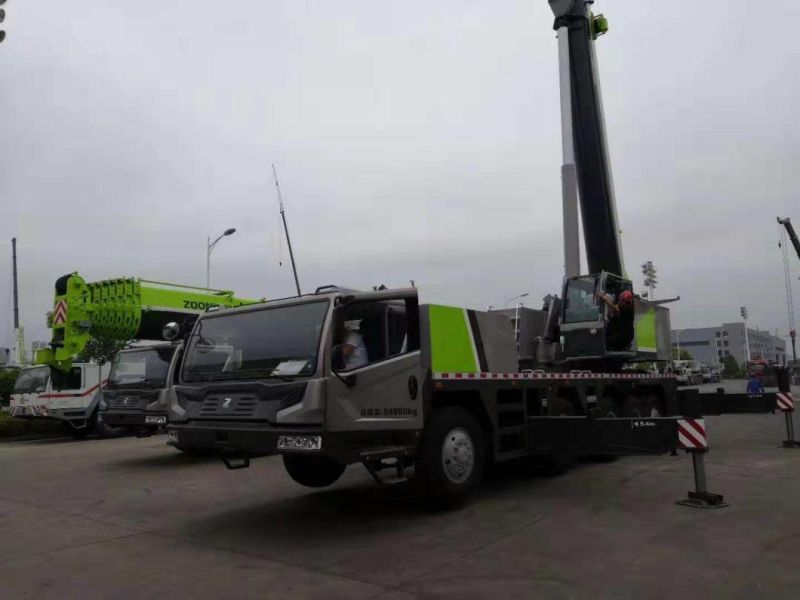

Zoomlion Truck Crane 25 Ton New Truck Crane Ztc250A552 Cheap Price
Evangel Industrial (Shanghai) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：49m
- Maximum Lifting Weight：25t
- Shaft Number：3
- Crane Jib：Five-Arm
Base Info
- Model NO.：ZTC250A552
- Type：Straight Arm
- Operating Type：Mechanical
- Rated Lifting Moment：494 Kn.M
- Chassis Model：Zlj5330jqz
- Boom Length：41m
- Jib Length：8m
- Transport Package：Nude
- Specification：ISO
- Trademark：ZOOMLION
- Origin：China
- HS Code：8705109100
- Production Capacity：50 Sets,Month
Description
Item
Value
Remarks
Working performance
Max. rated lifting capacity
kg
25000
Max. load moment of basic boom
kN.m
980
Max. load moment of main boom(fully extended)
kN.m
573
Max. load moment of basic boom
m
11.5
Max. lifting height of main boom
m
33.8
These parameters do not include deflection of main boom and jib
Max. lifting height of jib
m
41.6
Working speeds
Max. hoist rope speed(Main winch)
m/min
120
At the 4th layer
Max. hoist rope speed(Auxiliary winch)
m/min
100
At the 2nd layer
Boom demrricking up time
s
40
Boom demrricking up time
s
66.5
Slewing speed
r/min
0~2.2
Driving parameters
Maximum use altitude
m
2000
Max. driving speed
km/h
78
Max. gradeability
%
37
Turning diameter
m
≤22
Min. ground clearance
mm
220
Oil consumption per hundred kilometers
L
32
Mass
Deadweight in driving condition
kg
30000
Complete vehicle kerb mass
kg
29870
Front axle load
kg
6800
Rear axle load
kg
23200
Dimensions
Overall dimensions(L×W×H)
mm
12800×2500×3430
Outrigger spread(L)
m
5.36
Outrigger spread(W)
m
Fully extended:6.1,Intermediately extended:4.2
Tail slewing radius
mm
3385
Main boom length
m
10.5~33.3
Boom angle
°
-2~80
jib length
m
8
Offset
°
0 , 30
