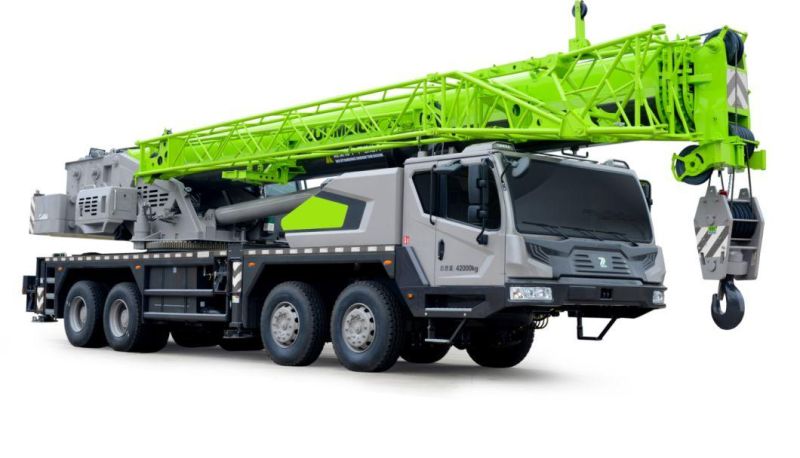

35ton Qy35V5 Ztc350h Hoist Machinery Zoomlion Mobile Truck Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
- Condition：New
- Maximum Lifting Height：52m
- Maximum Lifting Weight：35ton
- Shaft Number：3
- Crane Jib：5 Arms + 2 Jib
Base Info
- Model NO.：QY35V542
- Type：Straight Arm
- Boom Length：11.2-44m
- Jib：9.5m 16m
- Transport Package：RO-RO or Bulk Ship
- Specification：ISO, CE
- Trademark：ZOOMLION
- Origin：Hunan
- HS Code：8426120000
- Production Capacity：50000PCS,Year
Description
ItemValue Working performance specification Max. rated total lifting capacity kg 35000 Max. load moment of basic boom kN. m 1430 Max. load moment with max. main boom length kN. m 720 Max. lifting height of basic boom m 12.0 Max. lifting height of main boom m 41.7 Max. lifting height of fly jib m 56.4 Working speed Max. speed of single rope on main winch m/min 120 Max. speed of single rope onauxiliary winch m/min 100 Derricking time of boom s 45 Telescopic time of boom s 110 Slewing speed r/min 0~2 Traveling specification Max. traveling speed km/h 75 Max. gradeability % 34 Min. turning circle diameter m 24 Min. ground clearance mm 272 Oil consumption per hundred kilometers L 42 Mass specification Deadweight of crane in traveling condition kg 35700 Complete vehicle kerb mass kg 35570 Front axle load kg 7688 Rear axle load kg 28012 Dimension specification Overall dimensions(L- W- H)mm
mm 13200- 2650- 3625 Base on outriggers m 5.695 Distance between outriggers m 6.60 Main boom length m 10.9~41.0 Main boom angle° -2~80 Fly jib length m 9, 15 Offset angle of fly jib ° 0, 30
