20 Tons Mini Truck Crane Stc200c5/Stc200s Sale in India

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • After-sales Service：Spare Parts Available
  • Warranty：One Year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：STC200C5,STC200S
  • Shaft Number：3
  • Crane Jib：Four-Arm
  • Type：Folding
  • Max. Lifting Height：42m
  • Hydraulic Parts：Telescopic Boom Mobile Crane Made
  • Max. Lifting Load：20t
  • Span：7.6m
  • Total Weight in Travel：29400kg
  • Transport Package：Nude Package
  • Specification：20t
  • Trademark：SNAY
  • Origin：Henan, China
  • HS Code：8705109100
  • Production Capacity：100pieces,Month

Description

CapacityMax. lifting capacity20 tDimensionsOverall length12590mm Overall width2500mm Overall height3645mm Axles3 Axle distance-1,24280mm Axle distance-2,31350mmWeightOverall weight29400kg Front axle load6800kg Rear axle load19600kgEngineModelCumins Rated power213kw/2100r/min Rated torque1050N·m/1200~1400r/min Emission standardEuro IIITravelingMax. traveling speed80km/h Min.turning radius10m Min. ground clearance220mm Approach angle19° Departure angle13° Max. gradeability38% Fuel consumption per 100km35LMain PerformanceTemperature range-30~+60 Min.lifting radius3m Tail swing radius of superstructure3m Boom section4 Boom shapeU-shaped Max. lifting moment-Base boom880kN·m Max. lifting moment-Full-extend boom504kN·m Max. lifting moment-Full-extend boom+jib246kN·m Length-Base boom10.55m Length-Full-extend boom33.5m Length-Full-extend boom+jib41.5m Outrigger span(Longitudinal/Transversal)5.1mx6mWorking SpeedMax. single rope lifting speed of main winch(no load)120m/min Max. single rope lifting speed of auxiliary winch(no load)105m/min Full extend/retract time of boom55/45s Full raise/lower time of boom50/50s Swing speed0~2.2 r/minAirconditionHVAC in up cabCooling HVAC in low cabCooling and Heating
More pictures:

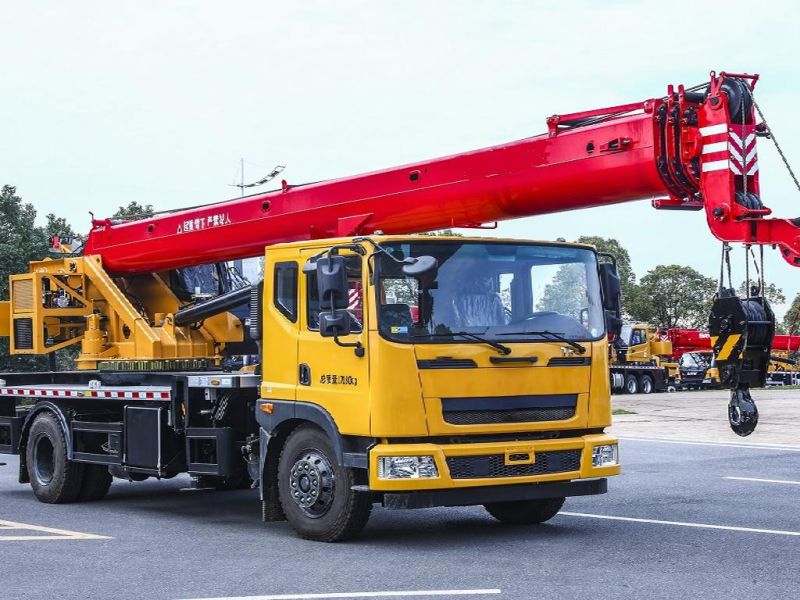

20 Tons Mini Truck Crane Stc200c5/Stc200s Sale in India20 Tons Mini Truck Crane Stc200c5/Stc200s Sale in India20 Tons Mini Truck Crane Stc200c5/Stc200s Sale in India20 Tons Mini Truck Crane Stc200c5/Stc200s Sale in India20 Tons Mini Truck Crane Stc200c5/Stc200s Sale in India
