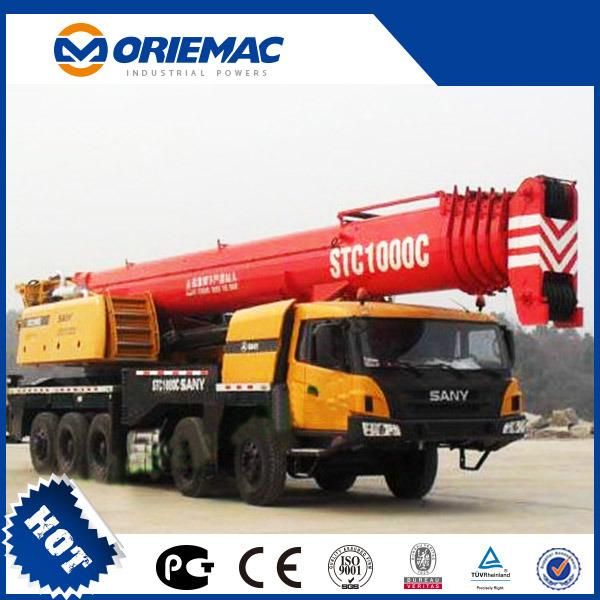

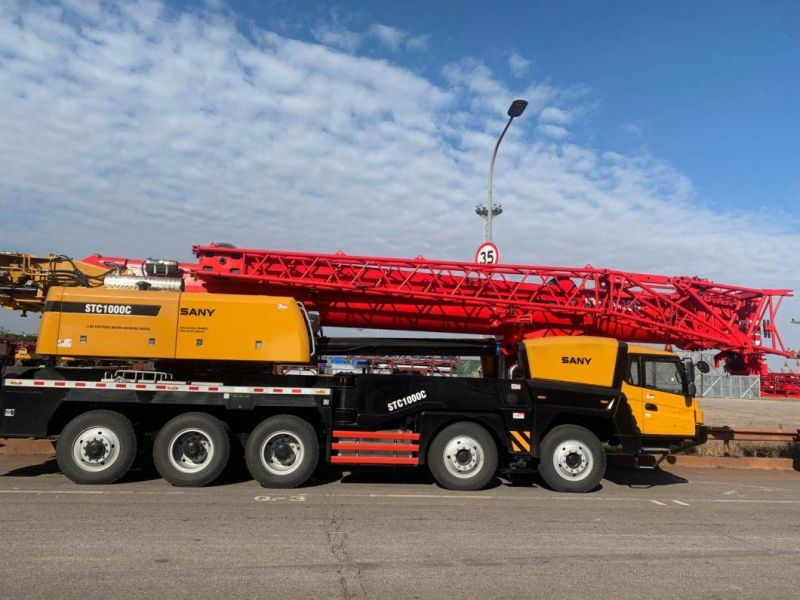

• Model NO.：stc1000c
• Shaft Number：5
• Crane Jib：Five-Arm
• Type：Single Girder Crane
• Max. Rated Lifting Weight：100 Ton
• Engine：350kw,1800rpm
• Max.Lifting Height(Including Aux.Boom)：78.1m
• Application：Construction Usage, Workshop Usage
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Main Girder Form：Single Girder
• Power Source：Hydraulic
• Installation：Assembled
• Transport Package：Nude Packing
• Specification：CE, ISO9001
• Trademark：oriemac
• Origin：Hunan, China
• HS Code：87051092
• Production Capacity：1000 Set,Sets , Month

Max. lifting capacity

100t

Dimensions

Overall length

15400mm

Overall width

3000mm

Overall height

4000mm

Axles

5

Axle distance-1,2

1980mm

Axle distance-2,3

3120mm

Axle distance-3,4

1450mm

Axle distance -4, 5

1500mm

Weight

Overall weight

54950kg

Front axle load

18500kg

Rear axle load

36450kg

Engine

Model

Germany original

Rated power

350kw/1800rpm

Rated torque

2300N·m/1080rpm

Emission standard

Euro III

Traveling

Max. traveling speed

85km/h

Min.turning radius

11m

Min.turning radius of boom head

14m

Drive train

10 × 6 × 6

Min. ground clearance

310mm

Approach angle

21 °

Departure angle

18 °

Max. gradeability

45%

Fuel consumption per 100km

≤ 70 L

Main Performance

Temperature range

- 20 ºC ~ + 40 ºC

Min.lifting radius

3m

Tail swing radius of superstructure

4.695m

Boom section

6

Boom shape

U-shaped

Max. lifting moment-Base boom

4320kN·m

Max. lifting moment-Full-extend boom

1800kN·m

Length-Base boom

13.25m

Length-Full-extend boom

60m

Length-Full-extend boom+jib

78.1m

Outrigger span(Longitudinal/Transversal)

7.6×7.6m

Jib offset

0 ° 15 ° 30 °

Working Speed

Max. single rope lifting speed of main winch(no load)

135m/min

Max. single rope lifting speed of auxiliary winch(no load)

123m/min

Full extend/retract time of boom

480 / 500s

Full raise/lower time of boom

60 / 110s

Swing speed

0~1.6 r/min

Aircondition

HVAC in up cab

Cooling / Heating

HVAC in low cab

Cooling / Heating
