180t Knuckle Crane Hoist 90 Tons at 4 Meters, 45 Tons at 8 Meters,   22 Tons at 13.2 Meters 3600kn. M Sq3600zb6 Intelligent Remotely Control Folding Boom
Hubei Dong Runze Special Vehicle Equipment Co., Ltd.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：15-20m
- Type：Folding
- Crane：180 T Knuckle Boom
- Engine：380~440HP
Base Info
- Model NO.：SQ3600ZB6
- Max Lifting Height：14.7 M
- Max Working Radius：17.7m
- Max Lifting Moment：3600kn.M
- Outrigger Span：8m
- Rotation Angle：360
- Application：Construction Usage, Workshop Usage, Co
- Material：Hg785D
- Crane Weight：26000kg
- Max Lifting：51700kg,6.54m ,30375kg,9.74m ,21900kg,13.2m
- Max Boom Radius Max Lifting：22 Tons at 13.2 Meters.
- Transport Package：Nil
- Specification：Knuckle Boom 180T Crane
- Trademark：DZR,JW,HBQZ
- Origin：China
- HS Code：842691
- Production Capacity：8000
Description
Max Lifting Capacity90000/4.0 51700/6.5 26100/11.3 21900/13.2 Max Lifting Height 14.7m Max Working Radius 13.2m Boom Section 6stages Rotation Angle 360°All Rotaion Rated Working Pressure 28mpa Oil tank Capacity 400L Related Oil Flow 110 L/min Outrigger Span 2170-8000mm Outrigger adjustable, Hydraulic operating. Crane Weight 26000kg Installation Space 2910mm Swing type Planetary gear reduction Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. Options Aux.winch,Aux.Boom,Remote control Material HG785D Truck brand Dongfeng (other truck brand can be customized) Cabin Driving type: 8x4, Left hand drive (Right hand drive type can be customized) Color is optional Vehicle Main Dimensions Overall size (L x W x H) 11950x2500x3800 mm Wheel base 1800+4600+1350 mm Cargo Body 6800x2350x500 mm Weight in KGS GVW 31000 kg Tare weight 14500 kg Front axle loading capacity 2 x 7000 kg Rear axles loading capacity 2 x 16000 kg Engine Type Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Horse Power 371HP (273kw) Max Torque 1500N.m Emission standard Euro II Max Speed 102 km/h Gearbox manual gearbox with 10 forwards & 2 reverses, with PTO Tire 12R22.5 tubeless tire, 13 pieces including one spare tire
180 ton crane (sq3600zb6), 6 hydraulic, one hand pull jib, 6 hydraulic legs, the maximum working radius is 15 meters, the maximum lifting height 14.7 or 18 meters, hoist 90 tons at 4 meters, 45 tons at 8 meters, and 22 tons at 13.2 meters.
Model # SQ3600ZB6/knuckle crane 180 ton at 2 m
180Ton SQ3600ZB6 Knuckle Crane
Hoist 90 Tons At 4 Meters,
45 Tons At 8 Meters,
22 Tons At 13.2 Meters 3600Kn.m
Intelligent Folding Boom Max Lifting Moment 3600 Kn.m
Max Lifting Capacity(kg/m)90000/4.0 51700/6.54 30375/9.74 21900/13.2 Max Lifting Height 14.7 m Working Radius 13.2m Boom Section 6 stages Rotation Angle 360º continuous Working Pressure 28 Mpa Rated Oil Flow 110 L/min Outrigger Span 2170-8000mm Outrigger 5,Extension, Hydraulic operating. Swing Type Planetary gear reduction. Options Aux.winch,Aux.Boom,Remote control Crane Weight 24700 kg Installation Space 2910mm Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. Material HG785

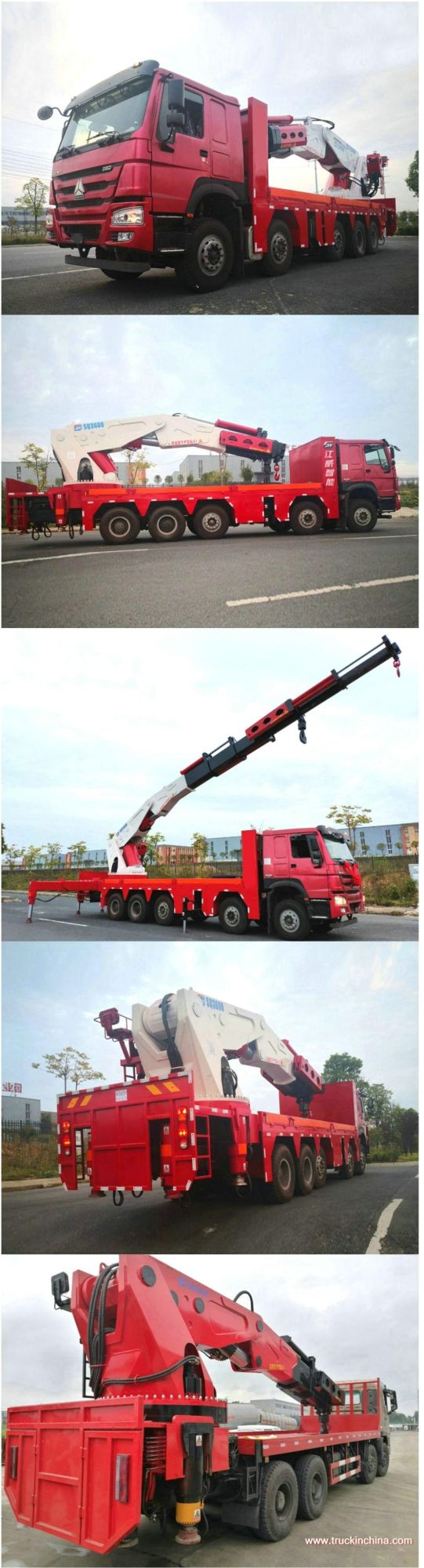

Vehicle parameters: heavy truck HOWO five axle truck mounted crane, total weight: 50t, curb weight: 47.8t, vehicle length: 12250 × 2550 × 3850 (mm)
Chassis configuration: heavy truck HOWO chassis, five axle vehicle, heavy truck 340 HP engine, flat top cab, electric adjustment, electric heating rearview mirror, airbag seat, air conditioner, wheelbase 1950 + 3075 + 1375 + 1350, HOWO 12 gear transmission, 300 (8 + 8) girder, 12.00R20 steel tire.
Upper loading configuration: Jiangwei 130t (sq5200zb6f1 + 1), half folding boom crane, six arms, plus a hand-held arm, the maximum working radius is 13.8m, the maximum lifting height is 16.8m, 5 outriggers, the front outrigger span is 2.25-8m, the 4-meter position is 130 tons, and all of them are extended to lift 25 tons
Max Lifting Capacity260000/2.0 75000/6.7 60000/8.2 32000/14 Max Lifting Height 17.8m Max Working Radius 15.3m Boom Section 6 stages Rotation Angle 360°All Rotaion Rated Working Pressure 28mpa Capacity 130t Driving height 3.45m Outrigger 4 ,adjustable, Hydraulic operating. Crane Weight 52000kg Installation Space 8000mm Swingtype Planetary gear reduction Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. Options Aux.winch,Aux.Boom,Remote control Material HG785D Truck for reference Truck brand Dongfeng (other truck brand can be customized) Cabin Driving type: 8x4, Left hand drive (Right hand drive type can be customized) Color is optional Vehicle Main Dimensions Overall size (L x W x H) 11950x2500x3800 mm Wheel base 1800+4600+1350 mm Cargo Body 6800x2350x500 mm Weight in KGS GVW 31000 kg Tare weight 14500 kg Front axle loading capacity 2 x 7000 kg Rear axles loading capacity 2 x 16000 kg Engine Type Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Horse Power 371HP (273kw) Max Torque 1500N.m Emission standard Euro II Max Speed 102 km/h Gearbox manual gearbox with 10 forwards & 2 reverses, with PTO Tire 12R22.5 tubeless tire, 13 pieces including one spare tire 30000 /2.0 13600/4.4 8600/4.07 6538/7.89 Max Lifting Height 14.7m Max Working Radius 11.5m Hydraulic extension boom No.s 4 stages Rotation Angle 360º continuous Rated Working Pressure 28 Mpa Oil Tank Capacity 250L Related Oil Flow 80 L/min Outrigger Span 2308-6120mm Outrigger 4 ,Extension, Hydraulic operating. Crane Weight 6900kg Installation Space 1450mm Swing Type Planetary gear reduction Safety Device Load Indicator,Hydraulic Safety Valve,Counter Balance Valve,
Overwinding Alanm Device,Automatic Swing Brake,Hook Safety Device Options Aux.winch,Aux.Boom,Remote control Material HG785
Max Lifting Capacity ( kg / m)25000/3.0 6500/9.5 4200/12.9 3500/14.7 Max Lifting Height 17.5m Max Working Radius 14.7m Boom Section 6stages Rotation Angle 360 continuous Rated Working Pressure 28 Mpa Oil Tank Capacity 250L Related Oil Flow 80 L/min Outrigger Span 2330-7100mm Outrigger Extension, Hydraulic operating. Crane Weight 8200kg Installation Space 1800mm Swing Type Planetary gear reduction Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device. Options Aux.winch,Aux.Boom,Remote control Material HG785
Max Lifting Capacity ( kg / m)40000/4.0 23500/6.26 14500/9.56 5000/15.1 Max Lifting Height 17m Max Working Radius 15.2m Boom Section 6 stages Rotation Angle 360 continuous Rated Working Pressure 28 Mpa Oil Tank Capacity 400L Related Oil Flow 110 L/min Outrigger Span 2220-7985mm Outrigger Extension, Hydraulic operating. Crane Weight 14100kg Installation Space 2540mm Swing Type Planetary gear reduction Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device. Options Aux.winch,Aux.Boom,Remote control Material HG785
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

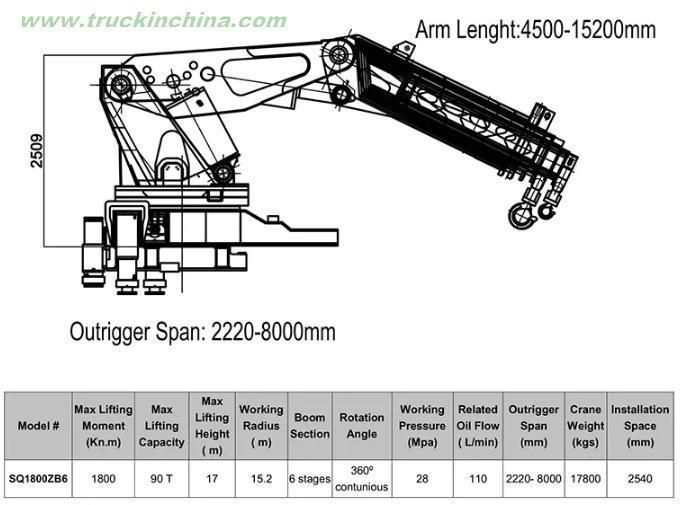

SQ1800ZB6(45T) at 4 m Knuckle Boom Truck Mounted Crane
Max Lifting Capacity(kg/m)45000/4 21000/7.86 13500/11.26 6100/15.1 Max Lifting Height 17m Max Working Radius 15.2m Boom Section 6 stages Rotation Angle 360 continuous Rated Working Pressure 28 Mpa Oil Tank Capacity 400L Related Oil Flow 110 L/min Outrigger Span 2220-8000mm Outrigger Extension, Hydraulic operating. Crane Weight 17800kg Installation Space 2540mm Swing Type Planetary gear reduction Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device. Options Aux.winch,Aux.Boom,Remote control Material HG785
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

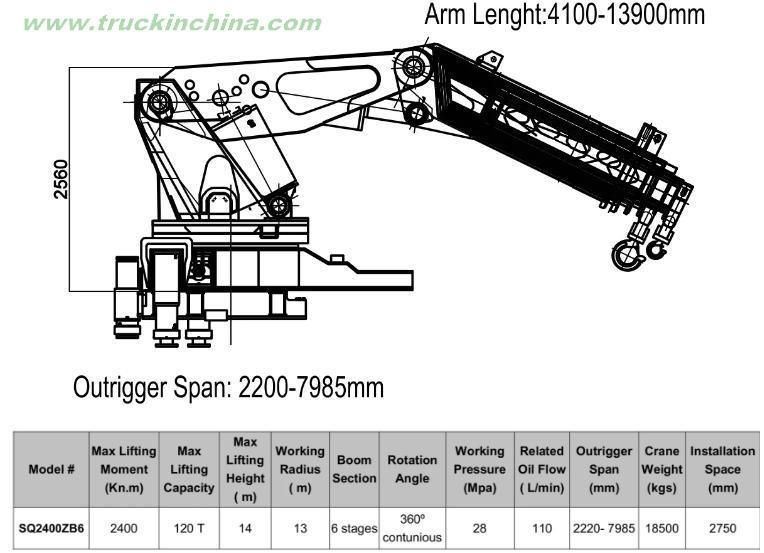

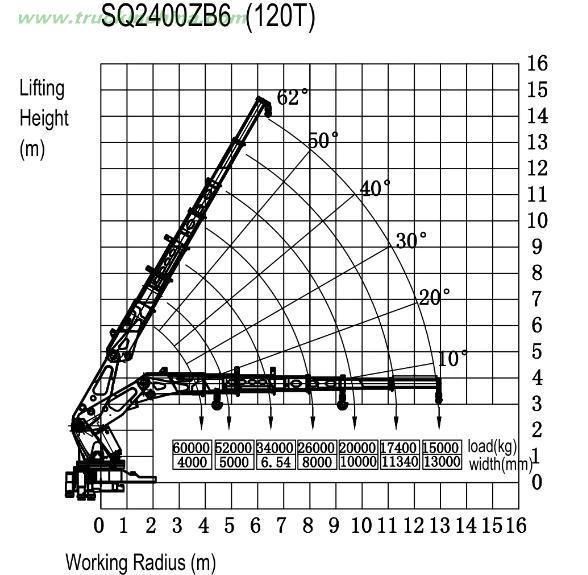

SQ2400ZB6 / 2400 KN.M 120 Ton Mounted Truck Crane
Max Lifting Capacity(kg/m)60000/4.0 26000/8 17400/11.34 15000/13 Max Lifting Height 14m Working Radius 13m Boom Section 6 stages Rotation Angle 360 continuous Working Pressure 28Mpa Oil Tank Capacity 400L Rated Oil Flow 110L/min Outrigger Span 2220- 7985mm Outrigger 5,Extension, Hydraulic operating. Swing Type Planetary gear reduction. Options Aux.winch,Aux.Boom,Remote control Crane Weight 18500kg Installation Space 2750mm Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device. Material HG785
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

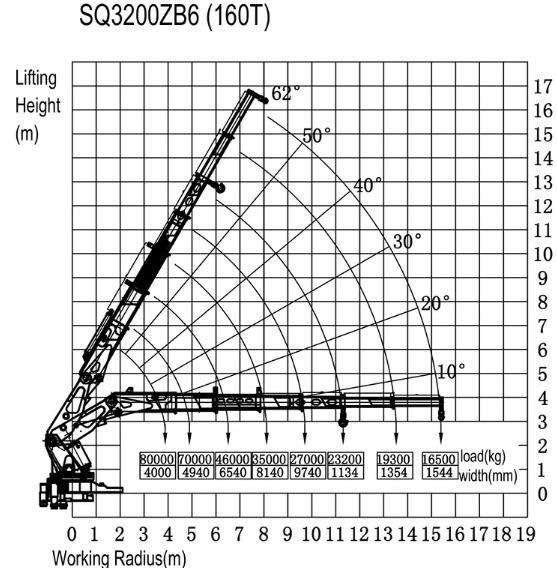

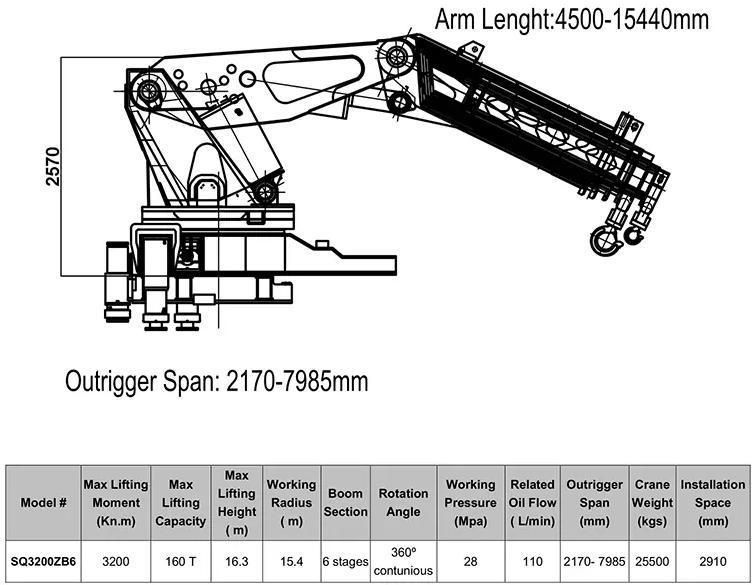

SQ3200ZB6 /knuckle crane 160 ton at 2 m
Max Lifting Capacity (kg/m)80000/4.0 70000/4.94 27000/9.74 16500/15.4 Max Lifting Height 14.7m Max Working Radius 13.2m Boom Section 6 stages Rotation Angle 360 continuous Rated Working Pressure 28 Mpa Oil Tank Capacity 400L Related Oil Flow 110 L/min Outrigger Span 2170-8000mm Outrigger Extension, Hydraulic operating. Crane Weight 24700kg Installation Space 2910mm Swing Type Planetary gear reduction Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device. Options Aux.winch,Aux.Boom,Remote control Material HG785
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

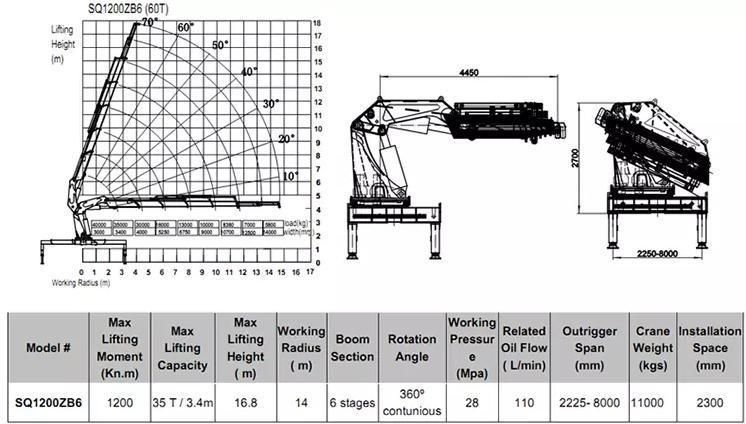

SQ1200ZB6 /Knuckle Crane 60 Ton At 2 m
Max Lifting Capacity (kg/m)40000/3.0 18000/5.25 7000/12.5 5000/15.5 Max Lifting Height 18.5m Max Working Radius 15.5m Boom Section 7 stages Rotation Angle 360 continuous Rated Working Pressure 28 Mpa Oil Tank Capacity 400L Related Oil Flow 110 L/min Outrigger Span 2250-8000mm Outrigger Extension, Hydraulic operating. Crane Weight 11600kg Installation Space 2300mm Swing Type Planetary gear reduction Safety Device Load Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device. Options Aux.winch,Aux.Boom,Remote control Material HG785
1,Use HG70 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
All Price For Refer Only . Final Price Will Confirm Order With Discount 3~5%.
excellent performance with reasonable price.
180 ton crane (sq3600zb6), 6 hydraulic, one hand pull jib, 6 hydraulic legs, the maximum working radius is 15 meters, the maximum lifting height 14.7 or 18 meters, hoist 90 tons at 4 meters, 45 tons at 8 meters, and 22 tons at 13.2 meters.
180Ton SQ3600ZB6 Knuckle Crane
Hoist 90 Tons At 4 Meters,
45 Tons At 8 Meters,
22 Tons At 13.2 Meters 3600Kn.m
Intelligent Folding Boom
Max Lifting Capacity(kg/m)
Vehicle parameters: heavy truck HOWO five axle truck mounted crane, total weight: 50t, curb weight: 47.8t, vehicle length: 12250 × 2550 × 3850 (mm)
Chassis configuration: heavy truck HOWO chassis, five axle vehicle, heavy truck 340 HP engine, flat top cab, electric adjustment, electric heating rearview mirror, airbag seat, air conditioner, wheelbase 1950 + 3075 + 1375 + 1350, HOWO 12 gear transmission, 300 (8 + 8) girder, 12.00R20 steel tire.
Upper loading configuration: Jiangwei 130t (sq5200zb6f1 + 1), half folding boom crane, six arms, plus a hand-held arm, the maximum working radius is 13.8m, the maximum lifting height is 16.8m, 5 outriggers, the front outrigger span is 2.25-8m, the 4-meter position is 130 tons, and all of them are extended to lift 25 tons
Max Lifting Capacity
Our advantages:
1.The material of truck mounted crane is used HG785D international standard high-strength steel to reduce the weight of crane.
2.The boom of the knuckle boom crane is used hexagonal structure,reducing the lateral.
3. The balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts of truck mounted crane to ensure the micro-mobility,security and stability is Italian brand
4.Our oil seal and gasket for hydraulic pump of truck mounted crane is Parker brand
5.The remote control operate of truck mounted crane is Sweden Brand scanreco.
6. Truck crane ,also called crane truck ,truck with crane ,truck mounted crane ,truck with telescopic boom crane ,truck with folding arm crane ,truck with knucle crane ,truck with hydraulic crane ,mobile crane truck ,truck with crane arm .Our manufacturer mainly wants to sell a large number of telescopic boom truck cranes and folding boom truck cranes. The straight arm lifting capacity is mainly 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 14 tons, 16 tons; the knuckle boom crane can provide 3.2 to 300 tons. Truck cranes are also called truck-mounted cranes. It can include two types of knuckle boom cranes and telescopic cranes. We are a one-stop manufacturer of truck-mounted cranes in the factory, which can provide inexpensive cranes.
Overwinding Alanm Device,Automatic Swing Brake,Hook Safety Device
Max Lifting Capacity ( kg / m)
Automatic Swing Brake, Hook Safety Device.

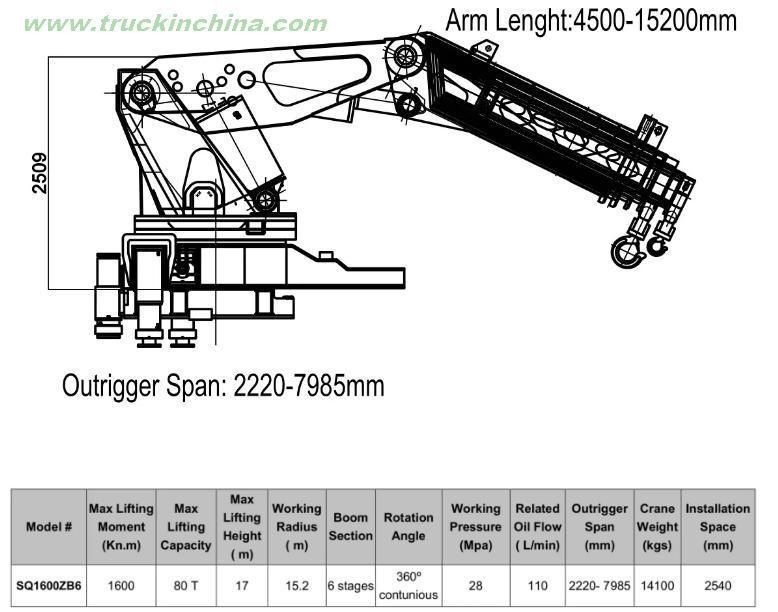

1600KN.M 80ton mounted truck crane SQ1600ZB6
Automatic Swing Brake, Hook Safety Device.
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ1800ZB6(45T) at 4 m Knuckle Boom Truck Mounted Crane
Max Lifting Capacity(kg/m)
Automatic Swing Brake, Hook Safety Device.
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ2400ZB6 / 2400 KN.M 120 Ton Mounted Truck Crane
Max Lifting Capacity(kg/m)Automatic Swing Brake, Hook Safety Device.
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ3200ZB6 /knuckle crane 160 ton at 2 m
Max Lifting Capacity (kg/m)Automatic Swing Brake, Hook Safety Device.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
SQ1200ZB6 /Knuckle Crane 60 Ton At 2 m
Max Lifting Capacity (kg/m)Automatic Swing Brake, Hook Safety Device.
1,Use HG70 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability
| Truck Model | 5311JSQLV | 5311JSQB | 5310JSQH7FB |
| Chassis | EQ1311GLJ(24) | STQ1311L16Y3B5 (24) | LZ1310M5FBT(33) |
| Engine | YC6A290- | YC6A270- | YC6L350- |
| Transmission | 9JS119TA | 9JS119TA | 10JSD120TB |
| Wheelbase | 2150+4400+1350 | 2150+4300+1350 | 1950+4500+1350 |
| Front Axle | 5.5Tx 2 | 6.5T x 2 | 6.5T x 2 |
| Rear Axle | 12T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) |
| Tire | 11.00R20*13 | 11.00R20*13 | 11.00R20*13 |
| Crago box(mm) | 8000*2300*550 | 8000*2300*550 | 8000*2470*550 |
| Crane 30T 600 Kn.m | SQ600ZB4 /30T at 2m $88800FOB ~$103800CIF | $88800FOB ~$103800CIF | $103000FOB ~$118000CIF |
| Crane 38T 760 Kn.m (25T at 3m) | SQ760ZB6/ 38 ton at 2 m $93800FOB ~$108800CIF | $93800FOB ~$108800CIF | $108000FOB ~$123000CIF |
| Crane 60T 1200 Kn.m 40T at 3m | SQ1200ZB6 /60 Ton At 2 m 35T at 3.4m ,40T at 3m $112900FOB ~$127900CIF | $112900FOB ~$127900CIF | $127000FOB ~$142000CIF |
| Crane 80T 1600 Kn.m (40T at 4m) | SQ1600ZB6 / 80 ton at 2 m $116000FOB ~$131000CIF | $116000FOB ~$131000CIF | $130000FOB ~$145000CIF |
| Crane 90T 1800 Kn.m (45T at 4m) | SQ1800ZB6 /90T at 2 m $131000FOB ~$146000CIF | $131000FOB ~$146000CIF | $136000FOB ~$151000CIF |
| Crane 120T 2400 Kn.m (60T at 4m) | SQ2400ZB6/ 120ton at 2m $142000FOB ~$157000CIF | $142000FOB ~$157000CIF | $156500FOB ~$171500CIF |
| Crane 160T 3200 Kn.m | SQ3200ZB6(160T) at 2m (80T at 4m) $164000FOB ~$179000CIF | $164000FOB ~$179000CIF | $169000FOB ~$184000CIF |
| Truck Model | 8x4 | 8x4 | 8x4 | 8*8 | 10*4 |
| Chassis | HINO /ISUZU /HYUNDAI | BEIBEN / SHACMAN /FOTON/SINOTRUCK | JAC /FAW/DFL /IVECO/ CAMC / C&C | BEIBEN / SHACMAN / SINOTRUCK | SINOTRUCK HOWO / DFL/C&C |
| Engine | 380HP /460HP | 380HP /420HP/460HP | 380HP /420HP | 336HP / 380HP | 380HP /420HP |
| Wheelbase | **** | **** | **** | **** | ***** |
| Front Axle | 7Tx 2 | 7.5T x 2 | 7.5T x 2 | 7.5T x 2 | 7.5T x 2+6.5T |
| Rear Axle | 16T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) | 18T x 2 (tandem axle) |
| Tire | 11.00R20*13 | 12.00R20*13 | 12.00R20*13 | 12.00R20*13 | 12.00R20*13 |
| Crago box(mm) | 8000*2300*550 | 8000*2300*550 | 8000*2470*550 | 8000*2300*550 | 8000*2470*550 |
| Crane 30T 600 Kn.m | SQ600ZB4 /30T at 2m $126000FOB ~$141000CIF | $103000FOB ~$118000CIF | $103000FOB ~$118000CIF | $113000FOB ~$128000CIF | $108000FOB ~$123000CIF |
| Crane 38T 760 Kn.m (25T at 3m) | SQ760ZB6/ 38 ton at 2 m $131000FOB ~$146000CIF | $108000FOB ~$123000CIF | $108000FOB ~$123000CIF | $118000FOB ~$133000CIF | $113000FOB ~$128000CIF |
| Crane 60T 1200 Kn.m 40T at 3m | SQ1200ZB6 /60 Ton At 2 m 35T at 3.4m , $150000FOB ~$165000CIF | $127000FOB ~$142000CIF | $127000FOB ~$142000CIF | ||
| Crane 80T 1600 Kn.m | SQ1600ZB6 / 80 ton at 2 m (40T at 4m) $153000FOB ~$168000CIF | $130000FOB ~$145000CIF | $130000FOB ~$145000CIF | $140000FOB ~$155000CIF | $135000FOB ~$150000CIF |
| Crane 90T 1800 Kn.m | SQ1800ZB6 /90T at 2 m (45T at 4m) $159000FOB ~$174000CIF | $136000FOB ~$151000CIF | $136000FOB ~$151000CIF | $146000FOB ~$151000CIF | $141000FOB ~$156000CIF |
| Crane 120T 2400 Kn.m | SQ2400ZB6/ 120ton at 2m (60T at 4m) $$179500FOB ~$194500CIF | $156500FOB ~$171500CIF | $156500FOB ~$171500CIF | ||
| Crane 160T 3200 Kn.m | SQ3200ZB6(160T) at 2m (80T at 4m) $192000FOB ~$207000CIF | $169000FOB ~$184000CIF | $169000FOB ~$184000CIF | $179000FOB ~$194000CIF | $174000FOB ~$189000CIF |
