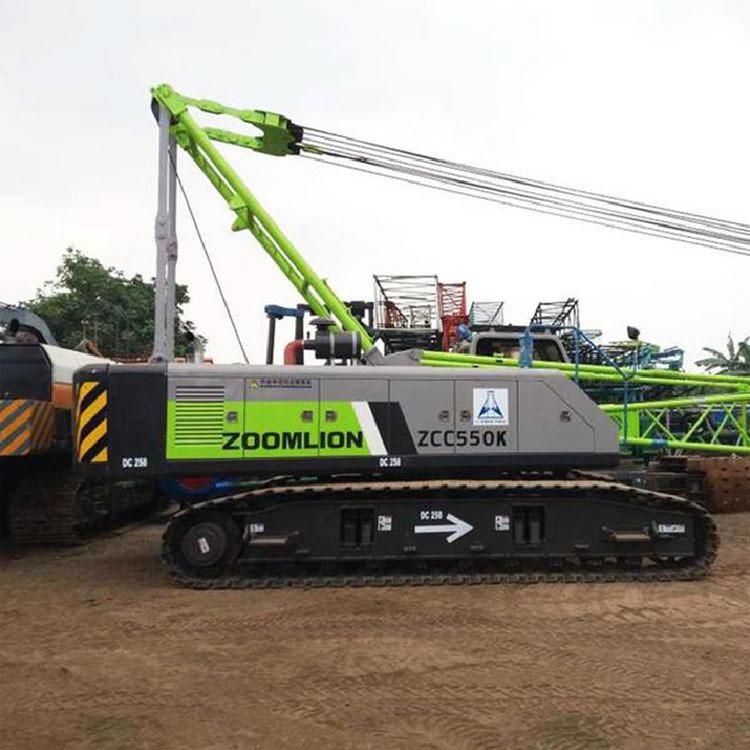

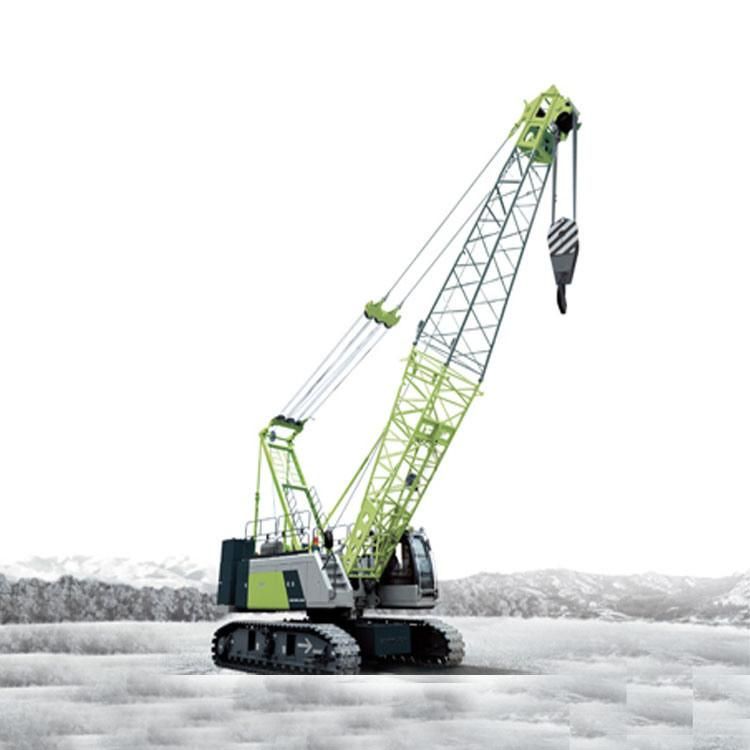

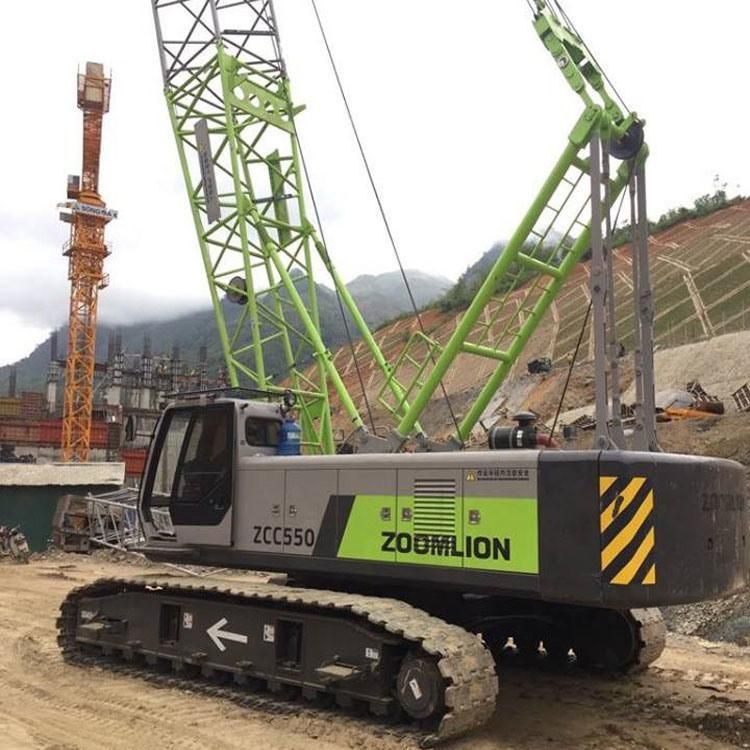

Zoomlion Quy180 Crawler Crane 180 Ton Jib Crane
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Max. Lifting Height：13-52m
- Rated Loading Capacity：180ton
- Certification：ISO9001, CE, BV
- Condition：New
- Warranty：1 Year
- Main Boom Length：13 - 52m
Base Info
- Model NO.：Quy180
- Fixed Jib Length：6 - 15m
- Max. Lifting Capacity × Radius：55*3.7
- Traveling Speed：0-1.6km,H
- Max. Gradeability：30
- Deadweight：50.5t
- Slewing Speed：0-2.1rpm
- Rated Power：140,1900
- Transport Package：Nude Packing
- Specification：12800*4600(3300)*3120
- Trademark：Zoomlion
- Origin：China
- HS Code：84262000
- Production Capacity：1000 Unit Per Year
Description
Maximum lifting capacity × radiust × m180 × 5 Deadweight of crane with basic boomt167 Length of main boomHeavy duty boomm20-83 Light duty boomm86-92 Length of fixed jibm13-31 Maximum lifting capacity with fixed jibt22 Fixed jib angle.10,30 Maximum length of main boom + fixed jibm71+31Length of main boom 47-71Length of luffing jibm24-51 Maximum lifting capacity with luffing jibt38 Working angle of main boom in crane operation with luffing jib.85,75,65 Maximum length of main boom + luffing jibm56+51Length of main boom 38-56Single rope speed of winchesMain winch(hoisting winch 1)m/min110Sixth layer of drumAuxiliary Winch(hosting winch 2)) m/min110Sixth layer of drumderricking winchm/min30Fifth layer of drumSlewing speedrpm1.4 Traveling speedkm/h1.2 Gradeability%30 Ground pressureMPa0.1 Overall dimensions(L × W × H)m10.6×7.1×3.65Without A-frame and boom frameEngineRated power/rotational speedKw/rpm227/2000QSL9-C305Max. output torque/rotational speedNm/rpm1505/1400 Exhaust emission standard U.S.EPA Tier 3 and EU Stage 3 Distance between track center × crawler contact length × crawler shoe widthmm6000×7750×1100
