• Model NO.：SQ5200ZB6
• Tire：11.00-20, 12.00-20
• Crane：30t ~260 T Knuckle Boom
• Engine：380~440HP
• Max Lifting Height：17.8m
• Max Working Radius：15.3m
• Max Lifting Moment：5200kn.M
• Outrigger Span：8m
• Rotation Angle：360
• Max Lifting Capacity：130t,4m Knuckle Boom Truck Crane
• Application：Construction Usage, Workshop Usage, Co
• Material：Hg785D
• Crane Weight：52000kg
• Overall Size (L x W x H)：11950X2500X3800 mm
• Max Lifting：260t,2m,130t,4m,
• Max Boom Radius Max Lifting：27t@15.7m
• Transport Package：Nil
• Specification：Knuckle Boom 130T -260T Crane
• Trademark：DZR,JW,HBQZ
• Origin：China
• HS Code：842691
• Production Capacity：8000

Model #SQ5200ZB6 /knuckle crane 130ton at 4mMax Liftingmoment5200Kn.mMax Lifting Capacity260000/2.075000/6.760000/8.232000/14Max Lifting Height17.8mMax Working Radius15.3mBoom Section6 stagesRotation Angle360°All RotaionRated Working Pressure28mpaCapacity130tDriving height3.45mOutrigger4 ,adjustable, Hydraulic operating.Crane Weight52000kgInstallation Space8000mmSwingtypePlanetary gear reductionSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.OptionsAux.winch,Aux.Boom,Remote controlMaterialHG785DTruck for referenceTruck brandDongfeng (other truck brand can be customized)CabinDriving type: 8x4, Left hand drive (Right hand drive type can be customized)Color is optionalVehicle Main DimensionsOverall size (L x W x H)11950x2500x3800 mmWheel base1800+4600+1350 mmCargo Body6800x2350x500 mmWeight in KGSGVW31000 kgTare weight14500 kgFront axle loading capacity2 x 7000 kgRear axles loading capacity2 x 16000 kgEngineTypeDiesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Horse Power371HP (273kw) Max Torque1500N.m Emission standardEuro IIMax Speed102 km/hGearboxmanual gearbox with 10 forwards & 2 reverses, with PTOTire12R22.5 tubeless tire, 13 pieces including one spare tire

Our advantages:
1.The material of truck mounted crane is used HG785D international standard high-strength steel to reduce the weight of crane.
2.The boom of the knuckle boom crane is used hexagonal structure,reducing the lateral.
3. The balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts of truck mounted crane to ensure the micro-mobility,security and stability is Italian brand
4.Our oil seal and gasket for hydraulic pump of truck mounted crane is Parker brand
5.The remote control operate of truck mounted crane is Sweden Brand scanreco.
6. Truck crane ,also called crane truck ,truck with crane ,truck mounted crane ,truck with telescopic boom crane ,truck with folding arm crane ,truck with knucle crane ,truck with hydraulic crane ,mobile crane truck ,truck with crane arm .Our manufacturer mainly wants to sell a large number of telescopic boom truck cranes and folding boom truck cranes. The straight arm lifting capacity is mainly 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 14 tons, 16 tons; the knuckle boom crane can provide 3.2 to 300 tons. Truck cranes are also called truck-mounted cranes. It can include two types of knuckle boom cranes and telescopic cranes. We are a one-stop manufacturer of truck-mounted cranes in the factory, which can provide inexpensive cranes.

 Max Lifting Capacity( kg / m)30000 /2.0 13600/4.48600/4.076538/7.89Max Lifting Height14.7mMax Working Radius11.5mHydraulic extension boom No.s4 stagesRotation Angle360º continuousRated Working Pressure28 MpaOil Tank Capacity250LRelated Oil Flow80 L/minOutrigger Span2308-6120mmOutrigger4 ,Extension, Hydraulic operating.Crane Weight6900kgInstallation Space1450mmSwing TypePlanetary gear reductionSafety DeviceLoad Indicator,Hydraulic Safety Valve,Counter Balance Valve,
Overwinding Alanm Device,Automatic Swing Brake,Hook Safety DeviceOptionsAux.winch,Aux.Boom,Remote controlMaterialHG785

 Max Lifting Capacity  ( kg / m)25000/3.06500/9.54200/12.93500/14.7Max Lifting Height17.5mMax Working Radius14.7mBoom Section6stagesRotation Angle360 continuousRated Working Pressure28 MpaOil Tank Capacity250LRelated Oil Flow80 L/minOutrigger Span2330-7100mmOutriggerExtension, Hydraulic operating.Crane Weight8200kgInstallation Space1800mmSwing TypePlanetary gear reductionSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.OptionsAux.winch,Aux.Boom,Remote controlMaterialHG785

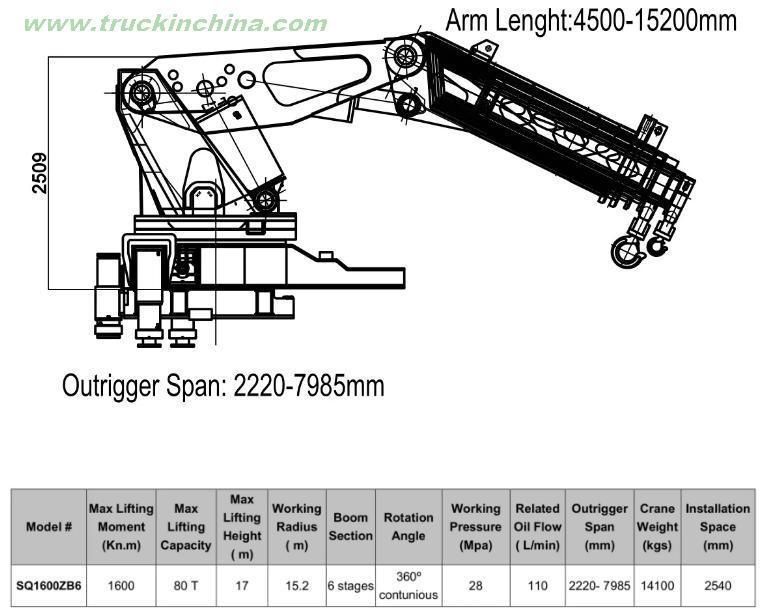

1600KN.M 80ton mounted truck crane SQ1600ZB6

 Max Lifting Capacity ( kg / m)40000/4.023500/6.2614500/9.565000/15.1Max Lifting Height17mMax Working Radius15.2mBoom Section6 stagesRotation Angle360 continuousRated Working Pressure28 MpaOil Tank Capacity400LRelated Oil Flow110 L/minOutrigger Span2220-7985mmOutriggerExtension, Hydraulic operating.Crane Weight14100kgInstallation Space2540mmSwing TypePlanetary gear reductionSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.OptionsAux.winch,Aux.Boom,Remote controlMaterialHG785
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

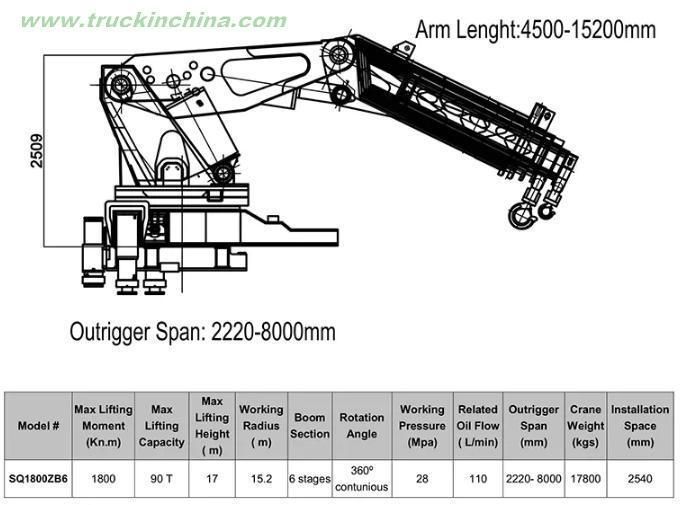

SQ1800ZB6(45T) at 4 m Knuckle Boom Truck Mounted Crane


 Max Lifting Capacity(kg/m)45000/421000/7.8613500/11.266100/15.1Max Lifting Height17mMax Working Radius15.2mBoom Section6 stagesRotation Angle360 continuousRated Working Pressure28 MpaOil Tank Capacity400LRelated Oil Flow110 L/minOutrigger Span2220-8000mmOutriggerExtension, Hydraulic operating.Crane Weight17800kgInstallation Space2540mmSwing TypePlanetary gear reductionSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.OptionsAux.winch,Aux.Boom,Remote controlMaterialHG785


1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

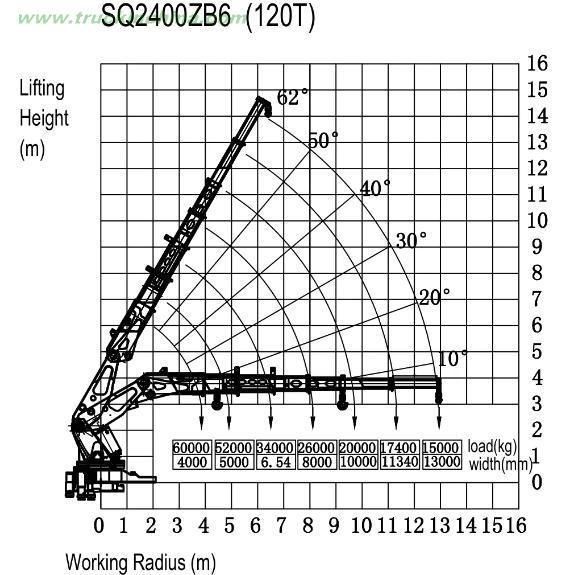

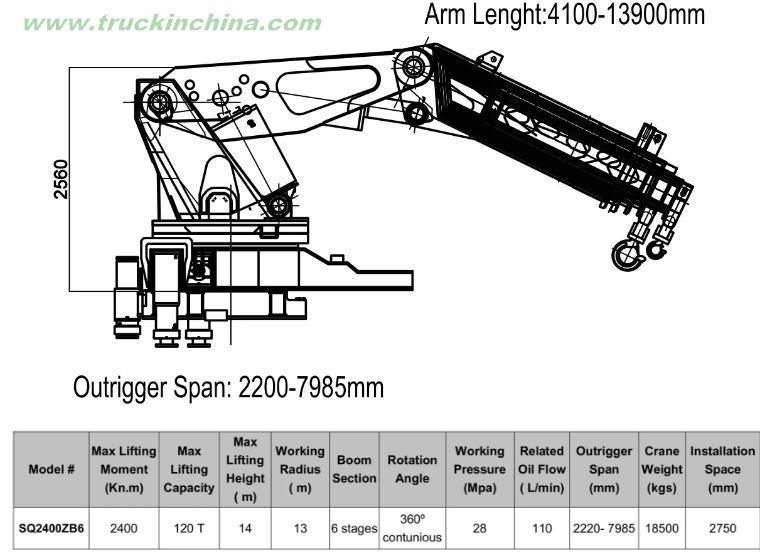

SQ2400ZB6 / 2400 KN.M 120 Ton Mounted Truck Crane
Max Lifting Capacity(kg/m)60000/4.026000/817400/11.3415000/13Max Lifting Height14mWorking Radius13mBoom Section6 stagesRotation Angle360 continuousWorking Pressure28MpaOil Tank Capacity400LRated Oil Flow110L/minOutrigger Span2220- 7985mmOutrigger5,Extension, Hydraulic operating.Swing TypePlanetary gear reduction.OptionsAux.winch,Aux.Boom,Remote controlCrane Weight18500kgInstallation Space2750mmSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.MaterialHG785
1,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

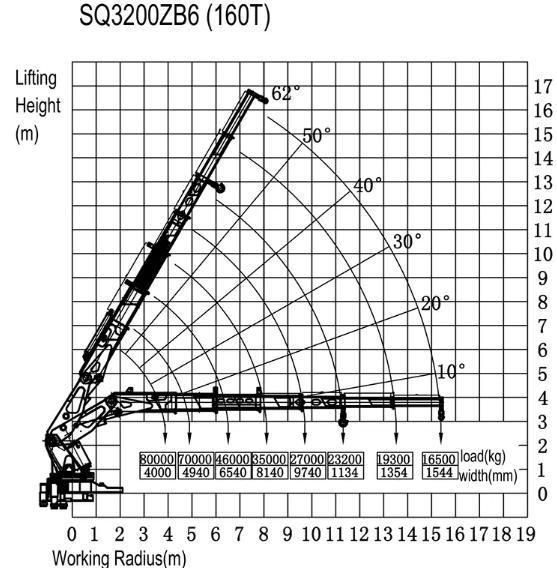

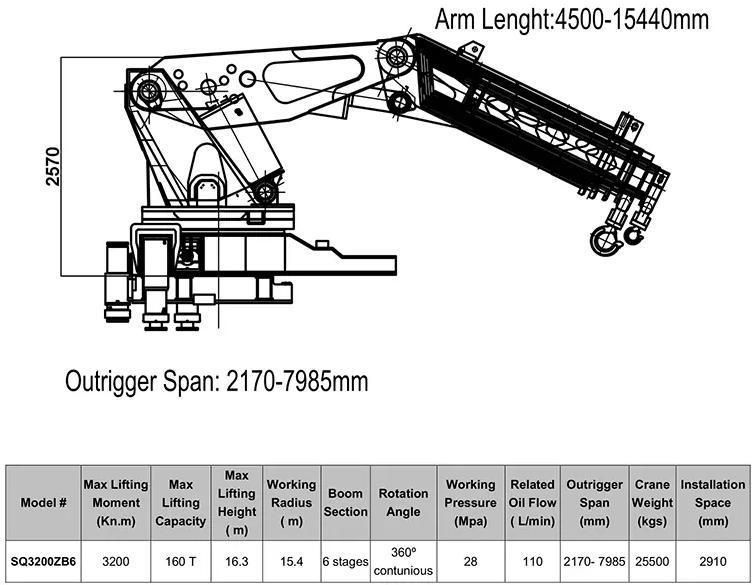

SQ3200ZB6  /knuckle crane 160  ton at 2 m
Max Lifting Capacity (kg/m)80000/4.070000/4.9427000/9.7416500/15.4Max Lifting Height14.7mMax Working Radius13.2mBoom Section6 stagesRotation Angle360 continuousRated Working Pressure28 MpaOil Tank Capacity400LRelated Oil Flow110 L/minOutrigger Span2170-8000mmOutriggerExtension, Hydraulic operating.Crane Weight24700kgInstallation Space2910mmSwing TypePlanetary gear reductionSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.OptionsAux.winch,Aux.Boom,Remote controlMaterialHG7851,Use HG785 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability

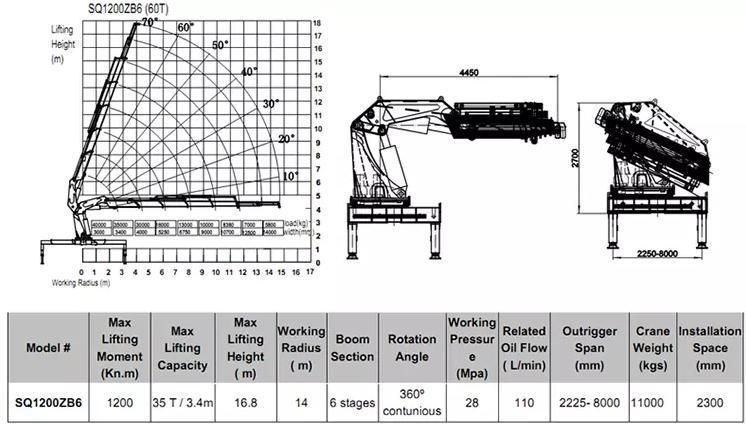

SQ1200ZB6 /Knuckle Crane 60 Ton At 2 mMax Lifting Capacity (kg/m)40000/3.018000/5.257000/12.55000/15.5Max Lifting Height18.5mMax Working Radius15.5mBoom Section7 stagesRotation Angle360 continuousRated Working Pressure28 MpaOil Tank Capacity400LRelated Oil Flow110 L/minOutrigger Span2250-8000mmOutriggerExtension, Hydraulic operating.Crane Weight11600kgInstallation Space2300mmSwing TypePlanetary gear reductionSafety DeviceLoad Indicator, Hydraulic Safety Valve, Counter Balance Valve,
Automatic Swing Brake, Hook Safety Device.OptionsAux.winch,Aux.Boom,Remote controlMaterialHG785
1,Use HG70 international standard high-strength steel to reduce the weight.
2,Boom one time welding technique,improving the lifting capacity.
3,Boom using hexagonal structure,reducing the lateral sway.
4,Brand scanreco remote control from Sweden.
5,Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts,to ensure the micro-mobility security and stability





Truck Model	5311JSQLV	5311JSQB	5310JSQH7FB
Chassis	EQ1311GLJ(24)	STQ1311L16Y3B5 (24)	LZ1310M5FBT(33)
Engine	YC6A290-	YC6A270-	YC6L350-
Transmission	9JS119TA	9JS119TA	10JSD120TB
Wheelbase	2150+4400+1350	2150+4300+1350	1950+4500+1350
Front Axle	5.5Tx 2	6.5T x 2	6.5T x 2
Rear Axle	12T x 2  (tandem axle)	18T x 2 (tandem axle)	18T x 2 (tandem axle)
Tire	11.00R20*13	11.00R20*13	11.00R20*13
Crago box(mm)	8000*2300*550	8000*2300*550	8000*2470*550
Crane  30T  600 Kn.m	SQ600ZB4 /30T at 2m   $88800FOB ~$103800CIF	$88800FOB ~$103800CIF	$103000FOB ~$118000CIF
Crane  38T 760 Kn.m (25T at 3m)	SQ760ZB6/ 38 ton at 2 m   $93800FOB ~$108800CIF	$93800FOB ~$108800CIF	$108000FOB ~$123000CIF
Crane  60T 1200 Kn.m 40T at 3m	SQ1200ZB6 /60 Ton At 2 m  35T at 3.4m ,40T at 3m  $112900FOB ~$127900CIF	$112900FOB ~$127900CIF	$127000FOB ~$142000CIF
Crane  80T 1600 Kn.m (40T at 4m)	SQ1600ZB6 / 80 ton at 2 m  $116000FOB ~$131000CIF	$116000FOB ~$131000CIF	$130000FOB ~$145000CIF
Crane  90T 1800 Kn.m (45T at 4m)	SQ1800ZB6 /90T at 2 m  $131000FOB ~$146000CIF	$131000FOB ~$146000CIF	$136000FOB ~$151000CIF
Crane  120T 2400 Kn.m (60T at 4m)	SQ2400ZB6/ 120ton at 2m  $142000FOB ~$157000CIF	$142000FOB ~$157000CIF	$156500FOB ~$171500CIF
Crane  160T 3200 Kn.m	SQ3200ZB6(160T) at 2m (80T at 4m)  $164000FOB ~$179000CIF	$164000FOB ~$179000CIF	$169000FOB ~$184000CIF



Truck Model	8x4	8x4	8x4	8*8	10*4
Chassis	HINO /ISUZU /HYUNDAI	BEIBEN / SHACMAN /FOTON/SINOTRUCK	JAC /FAW/DFL /IVECO/  CAMC / C&C	BEIBEN / SHACMAN / SINOTRUCK	SINOTRUCK HOWO / DFL/C&C
Engine	380HP /460HP	380HP /420HP/460HP	380HP /420HP	336HP / 380HP	380HP /420HP
Wheelbase	****	****	****	****	*****
Front Axle	7Tx 2	7.5T x 2	7.5T x 2	7.5T x 2	7.5T x 2+6.5T
Rear Axle	16T x 2  (tandem axle)	18T x 2 (tandem axle)	18T x 2 (tandem axle)	18T x 2 (tandem axle)	18T x 2 (tandem axle)
Tire	11.00R20*13	12.00R20*13	12.00R20*13	12.00R20*13	12.00R20*13
Crago box(mm)	8000*2300*550	8000*2300*550	8000*2470*550	8000*2300*550	8000*2470*550
Crane  30T  600 Kn.m	SQ600ZB4 /30T at 2m   $126000FOB ~$141000CIF	$103000FOB ~$118000CIF	$103000FOB ~$118000CIF	$113000FOB ~$128000CIF	$108000FOB ~$123000CIF
Crane  38T  760 Kn.m  (25T at 3m)	SQ760ZB6/ 38 ton at 2 m $131000FOB ~$146000CIF	$108000FOB ~$123000CIF	$108000FOB ~$123000CIF	$118000FOB ~$133000CIF	$113000FOB ~$128000CIF
Crane  60T  1200 Kn.m 40T at 3m	SQ1200ZB6 /60 Ton At 2 m  35T at 3.4m , $150000FOB ~$165000CIF	$127000FOB ~$142000CIF	$127000FOB ~$142000CIF
Crane  80T 1600 Kn.m	SQ1600ZB6 / 80 ton at 2 m  (40T at 4m) $153000FOB ~$168000CIF	$130000FOB ~$145000CIF	$130000FOB ~$145000CIF	$140000FOB ~$155000CIF	$135000FOB ~$150000CIF
Crane  90T 1800 Kn.m	SQ1800ZB6 /90T at 2 m  (45T at 4m) $159000FOB ~$174000CIF	$136000FOB ~$151000CIF	$136000FOB ~$151000CIF	$146000FOB ~$151000CIF	$141000FOB ~$156000CIF
Crane  120T 2400 Kn.m	SQ2400ZB6/ 120ton at 2m  (60T at 4m) $$179500FOB ~$194500CIF	$156500FOB ~$171500CIF	$156500FOB ~$171500CIF
Crane  160T 3200 Kn.m	SQ3200ZB6(160T) at 2m (80T at 4m) $192000FOB ~$207000CIF	$169000FOB ~$184000CIF	$169000FOB ~$184000CIF	$179000FOB ~$194000CIF	$174000FOB ~$189000CIF

All Price For Refer Only . Final Price Will Confirm Order With Discount 3~5%.

 excellent performance with reasonable price.
