• Model NO.：ZTC600V532
• Type：Straight Arm
• Transport Package：Nude, Spare Parts and Tools Into Standard Cases
• Specification：12600*2500*3450mm
• Trademark：Zoomlion
• Origin：China
• HS Code：87051091
• Production Capacity：5000PCS,Year

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg60000 Max. load moment of basic boomkN.m2033 Max. load moment of main boom(fully extended)kN.m1235 Max. lifting height of main boomm45.7These parameters do not include deflection of main boom and jibMax. lifting height of jibm61.5 Working speeds             Max. hoist rope speed(Main winch)m/min125At 4th layerMax. hoist rope speed(Auxiliary winch)m/min125At 2nd layerBoom demrricking up times45 Boom telescoping out times95 Slewing speedr/min2.2 DrivingMax. driving  speedkm/h90 Max. gradeability%47 Turning diameterm23 Min.  ground clearancemm

285

 Oil consumption per hundred kilometersL43 MassDeadweight in driving conditionkg42000 Complete vehicle kerb masskg41805 Front axle loadkg16000 Rear axle loadkg26000 DimensionOverall dimensions(L×W×H)mm13950×2800×3710 Longitudinal distance between outriggersm5.92 Transversal distance between outriggersmFor completely extended: 7.10 m;
For half extended: 4.8 m Tail slewing radiusmm3930 Main boom lengthm11.6 - 45.0 Main boom angle°-2 - 80 jib lengthm9.2, 14.6 Offset°5 / 25 / 45

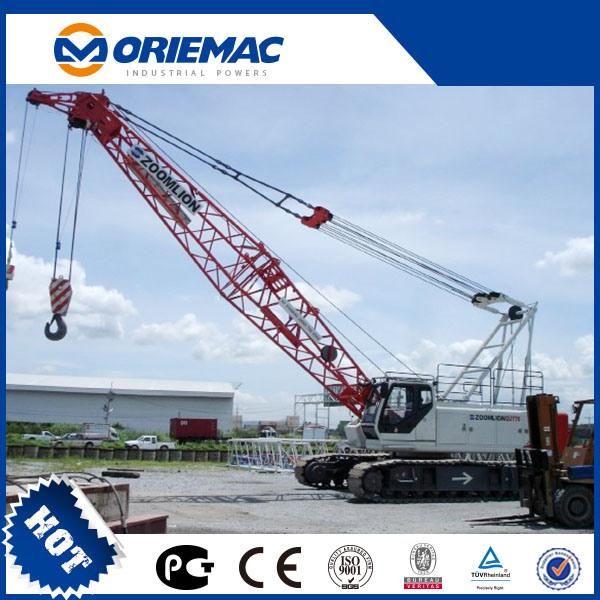

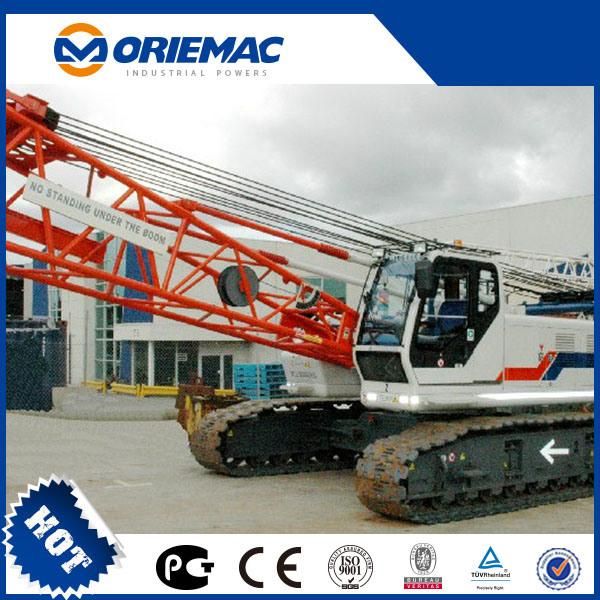

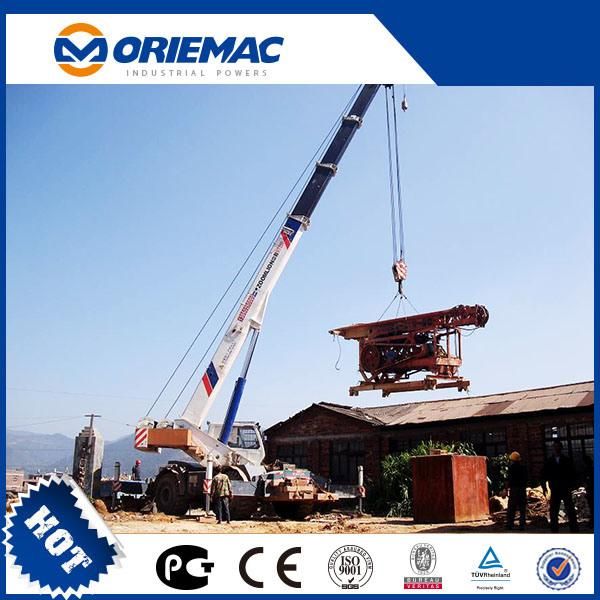

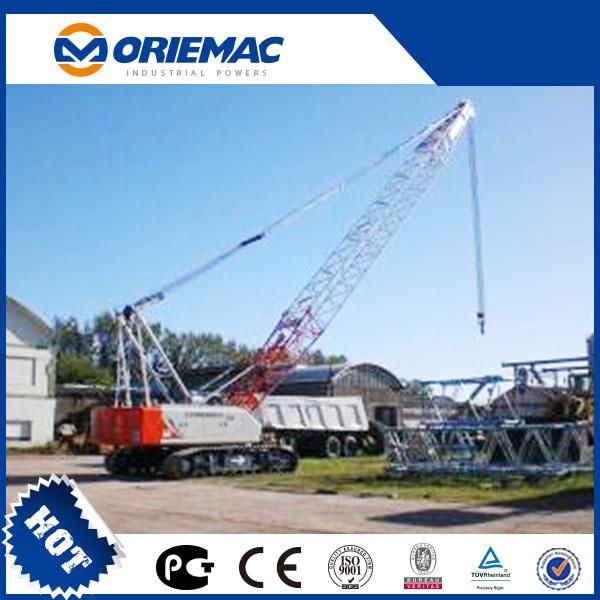

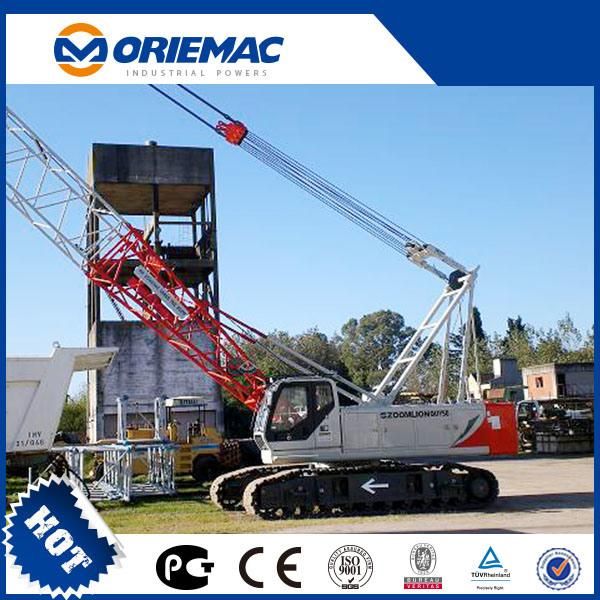

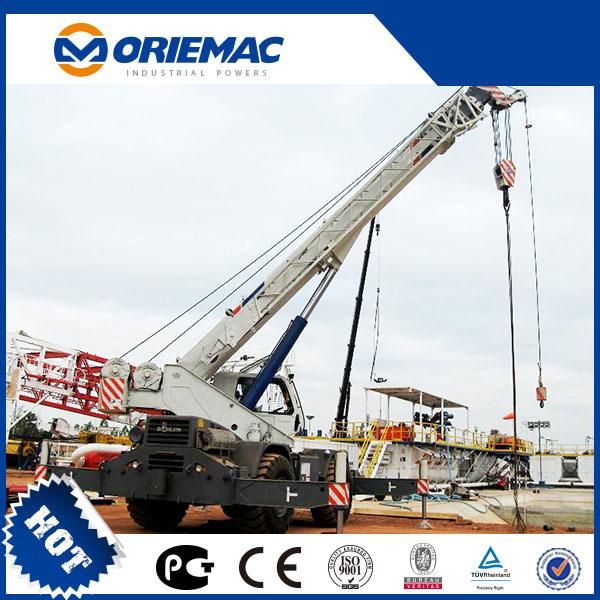

Product Pictures
