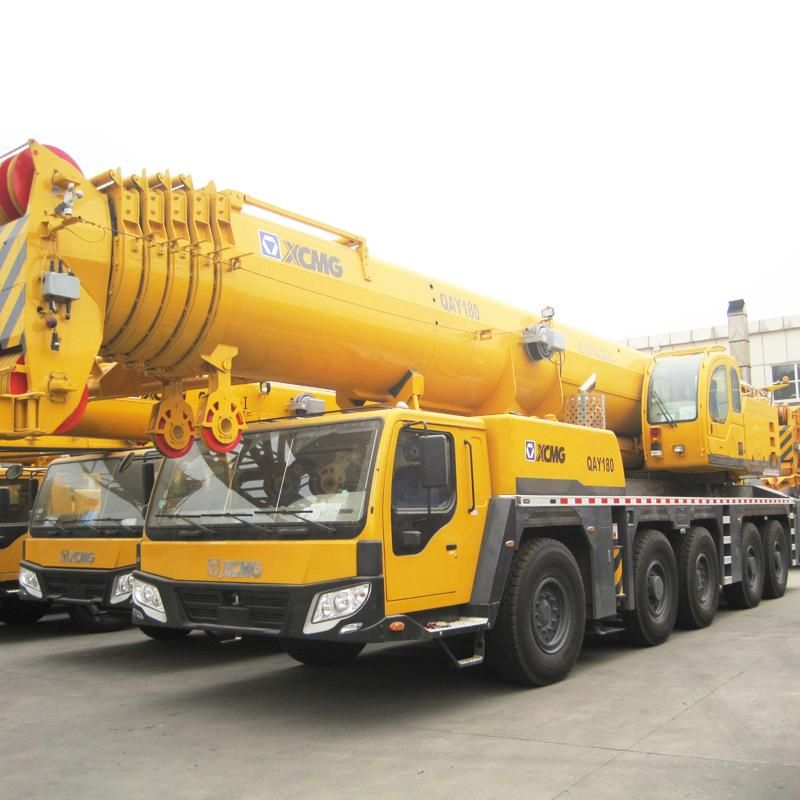

Good Quality Big Discount 180t Qay180 All Terrain Crane
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification:CE, ISO9001
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
- Shaft Number:3
- Crane Jib:Five-Arm
Base Info
- Model NO.:QAY180
- Type:Straight Arm
- Overall Weight in Transport:60000 Kg
- Engine Rated Power:162,2100 Kw,(R,Min)
- Max. Travel Speed:80 Km,H
- Min. Turning Diameter:20 M
- Max. Grade Ability:50%
- Max. Rated Total Lifting Capacity:180 T
- Max. Lifting Torque:5420 Kn.M
- Fully Extended Boom:62 M
- Transport Package:Nude
- Specification:,
- Trademark:Acntruck
- Origin:China, Hunan
- HS Code:8705102300
- Production Capacity:200 Units, Month
Description
Basic Info.
Model NO. QAY180 Type Straight Arm Overall Weight in Transport 60000 Kg Engine Rated Power 162/2100 Kw/(R/Min) Max. Travel Speed 80 Km/H Min. Turning Diameter 20 M Max. Grade Ability 50% Max. Rated Total Lifting Capacity 180 T Max. Lifting Torque 5420 Kn.M Fully Extended Boom 62 M Transport Package Nude Specification / Trademark Acntruck Origin China, Hunan HS Code 8705102300 Production Capacity 200 Units/ MonthProduct Description
Good Quality Big Discount 180t QAY180 All Terrain CraneQAY180 new terrain crane integrates 222 patent techniques, adopts 38 new patents techniques, and shows 8 technical highlights.
• The overall length in travel is only 15.77m, the weight is 60t, the chassis length is 13.77m, and the minimum turning radius is 10m. The whole configuration includes 6-segment boom with the length of 62m and 3-segment jib with the length of 28m. 6 counterweight combinations can finish nearly 30000 working conditions.
• Adopt the imported Benz EFI engine with strong power system and imported 12-gear automatic control transmission. The 2nd, 4th, and 5th axles are the drive axle. The steering form is 10x10 full-axle steering.
• Adopt new single cylinder retractable technique and high-intensity imported steel, featuring lighter dead-weight and stronger performance.
• The self-combination counterweight technique developed by ourselves can effectively improve the lifting performance by 30%.
• The electrohydraulic proportion control multi-axle steering mode can realize many kinds of steering modes.
• The new brake technique can reduce 2/3 maintenance cost, and improve the travel safety.
• The comfortable cabs and outrigger operation completely show the humanity design concept.
• Equip with the X C M G unique control system, auxiliary retractable boom system, virtual wall system, perfect failure diagnosis, real-time detection, C A N technique, etc.
Dimension | Unit | QAY180 |
Overall length | mm | 15770 |
Overall width | mm | |
Overall height | mm | 4000 |
Weight | ||
Overall weight in transport | kg | 60000 |
Front axle load | kg | |
Rear axle load | kg | |
Power | ||
Engine model | TAD720VE OM460LA.E3A/1 | |
Engine rated power | kW/(r/min) | 162/2100 360/1800 |
Engine rated torque | N.m/(r/min) | 2200/1100 |
Travel | ||
Max. travel speed | km/h | 80 |
Min. turning diameter | m | 20 |
Min. ground clearance | mm | |
Approach angle | ° | 16 |
Departure angle | ° | 13 |
Max. grade ability | % | 50 |
Fuel consumption for 100km | L | |
Main performance | ||
Max. rated total lifting capacity | t | 180 |
Min. rated working radius | mm | |
Turning radius at turntable tail | m | |
Max. lifting torque | kN.m | 5420 |
Base boom | m | |
Fully extended boom | m | 62 |
Fully extended boom+ jib | m | |
Longitudinal outrigger span | m | 8.3 |
Lateral outrigger span | m | 8.9 |
Working speed | ||
Boom luffing time | s | |
Boom full extension time | s | |
Max. swing speed | r/min | |
Max. speed of main winch (single rope) (no load) | m/min | |
Max. speed of aux. winch (single rope) (no load) | m/min | |
