Good Price 180t Sac1800 Rough Terrain Crane
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Five-Arm
Base Info
- Model NO.：SAC1800
- Type：Straight Arm
- Max. Lifting Capacity：180t
- Axles：5
- Overall Weight：60000 Kg
- Front Axle Load：12000 Kg
- Rear Axle Load：12000 Kg
- Rated Power：390 Kw,1800 Rpm
- Rated Torque：2400 N.M, 1100 Rpm
- Emission Standard：Euro III
- Max. Traveling Speed：81 Km,H
- Min.Turning Radius：10 M
- Min.Turning Radius of Boom Head：11 M
- Transport Package：Nude
- Specification：,
- Trademark：Acntruck
- Origin：China, Hunan
- HS Code：8705102300
- Production Capacity：200 Units, Month
Description
Basic Info.
Model NO. SAC1800 Type Straight Arm Max. Lifting Capacity 180t Axles 5 Overall Weight 60000 Kg Front Axle Load 12000 Kg Rear Axle Load 12000 Kg Rated Power 390 Kw/1800 Rpm Rated Torque 2400 N.M/ 1100 Rpm Emission Standard Euro III Max. Traveling Speed 81 Km/H Min.Turning Radius 10 M Min.Turning Radius of Boom Head 11 M Transport Package Nude Specification / Trademark Acntruck Origin China, Hunan HS Code 8705102300 Production Capacity 200 Units/ MonthProduct Description

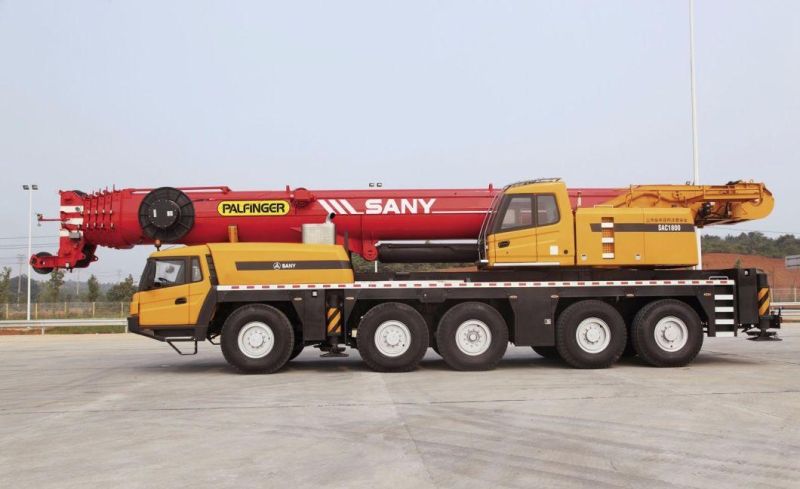

Good Price 180t SAC1800 Rough Terrain CraneS A N Y SAC1800 all terrain crane is remarkable in operation. Its maximum traveling speed is up to 81km/h. All axles are steering axles and axles 1, 2, 4 and 5 are drive axles, wheels differential locks, the bar feedback hydraulic power steering system and the electrohydraulic control steering system are adopted to ensure easy steering and flexible operation.
1. Powerful Lifting Capacity
The longest boom length of the 180 ton all terrain crane is 97m and lifting height 97.5m, max.lifting capacity of 180t,which ensures the super strong lifting capacity. The six-section telescopic boom is made of fine grain high-strength steel with U-shaped section.
0°~ 40°automatical infinite variable luffing jib is applied to ensure convenient switch over between all operating conditions with high efficiency.
2. Efficient Hydraulic Control Technology
Self-developed dual-pump converging/diversion main valve is used. Converging flow of the single-action dual-pump can be up to 520L/min, ensuring fast and efficient operation. Combined-action dual-pump diversion system is applied to ensure stable control and operation with independent oil supply.
Electric proportional variable displacement piston pump is used to ensure accurate flow control which is efficient and energy saving.
3. Excellent & Stable Chassis Performance
The use of innovative 5-axle chassis design and multi braking modes provide more reliable traveling performance for chassis.
With tipping early-warning technology, highly stable overall operation and safety can be achieved.
4. Intelligent Electronic Control
The adoption of internationally advanced distributed integration bus data communication network and the configuration of complete set of sensing elements can achieve timely feedback of data information and monitor the overall working status in real-time. The human-computer interaction interface is used to meet customer's individual requirements.
| Capacity | Main Performance |
| Max. lifting capacity | Temperature range |
| 180t | - 20 ºC ~ + 40 ºC |
| Dimensions | Min.lifting radius |
| Overall length | 3 m |
| 15530 mm | Tail swing radius of superstructure |
| Overall width | 4.75 m |
| 3000 mm | Boom section |
| Overall height | 6 |
| 4000 mm | Boom shape |
| Axles | U-shaped |
| 5 | Max. lifting moment-Base boom |
| Axle distance-1,2 | 6320 kN·m |
| 2750 mm | Max. lifting moment-Full-extend boom |
| Axle distance-2,3 | 3000 kN·m |
| 1650 mm | Max. lifting moment-Full-extend boom+jib |
| Axle distance-3,4 | 575 kN·m |
| 2490 mm | Length-Base boom |
| Axle distance -4, 5 | 13.5 m |
| 1650 mm | Length-Full-extend boom |
| Weight | 62 m |
| Overall weight | Length-Full-extend boom+jib |
| 60000 kg | 97 m |
| Front axle load | Outrigger span(Longitudinal/Transversal) |
| 12000 kg | 9.0 × 8.5 m |
| Rear axle load | Jib offset |
| 12000 kg | 0°~40° |
| Engine | Working Speed |
| Model | Max. single rope lifting speed of main winch(no load) |
| BENZ | 130 m/min |
| Rated power | Max. single rope lifting speed of auxiliary winch(no load) |
| 390 kW/1800 rpm | 130 m/min |
| Rated torque | Full extend/retract time of boom |
| 2400 N.m/ 1100 rpm | 550 / 550 s |
| Emission standard | Full raise/lower time of boom |
| Euro III | 60 / 90 s |
| Traveling | Swing speed |
| Max. traveling speed | 1.8 r/min |
| 81 km/h | Aircondition |
| Min.turning radius | HVAC in up cab |
| 10 m | Cooling / Heating |
| Min.turning radius of boom head | HVAC in low cab |
| 11 m | Cooling / Heating |
| Drive train | |
| 10 × 8 | |
| Min. ground clearance | |
| 325 mm | |
| Approach angle | |
| 20 ° | |
| Departure angle | |
| 17 ° | |
| Max. gradeability | |
| 58% | |
| Fuel consumption per 100km | |
| ≤ 72 L |
