• Model NO.：TCT5513
• Type：Under-Slewing Crane
• Min. Jib Length：2m
• Hoisting Capacity at Jib Tip：1ton
• Hoisting Mechanism：QS680e1
• Hoisting Power：5.4,24,24W
• Rope Capacity：440m
• Slewing Mechanism：Rcv95f1.130
• Slewing Power：95kw
• Trolleying Mechanism：Be33e
• Trolleying Power：3.3,3.2kw
• Max. Lifting Moment：80t.M
• Transport Package：Container,RO-RO
• Specification：55m
• Trademark：ZOOMLION
• Origin：China
• HS Code：8426200000
• Production Capacity：100,Month

 Rated lifting moment (t.m)80 Max. lifting height (m)Free-standing stationary crane40.8 Anchored crane220Working radius (m)Max. working radius55 Min. working radius20Max. lifting capacity (t)2.90(2 falls)Hoisting mechanism Rope fallα=2α=4(only reserved) Speed 5(m/min)8.884080/// Lifting weight (t)331.5/// Power (kW)28.8/28.8/6.48Trolleying mechanismSpeed (m/min)50/25 Power (kW)3.3/3.2Slewing mechanismSpeed (r/min)0~0.7 Power ( N.m )95

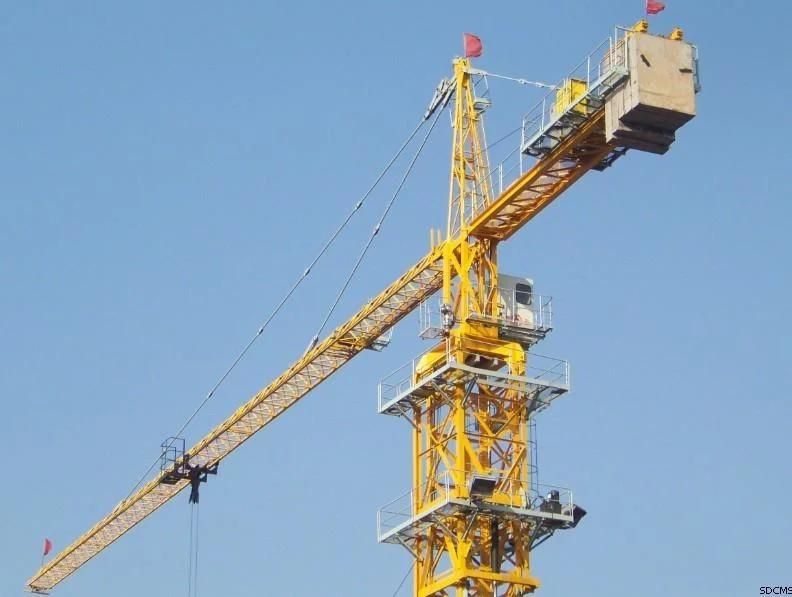

Pictures
