• Model NO.：L250-16
• Type：Under-Slewing Crane
• Max. Jib Length：60m
• Hoisting Capacity at Jib Tip：3ton
• Hoisting Mechanism：H75FL40-930d
• Hoisting Power：75kw
• Rope Capacity：930m
• Slewing Mechanism：VV145b1.130A, Hvv145b2.130A
• Slewing Power：2*7.5kw
• Trolleying Mechanism：L45FL50
• Trolleying Power：45kw
• Color：Green
• Transport Package：Container,RO-RO
• Specification：17752*3000*4000mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：8426200000
• Production Capacity：100,Month

 Rated liftingmoment (t.m)250 Max. lifting    height (m)Free-standing    stationary crane52.85Anchored crane180.35Working radius    (m)     Max. working    radius60Min. working    radius3.4Max. lifting    capacity (t)16Hoisting    mechanism Rope    fallα=2α=4Speed (m/min)0~460~920~1200~230~460~60Lifting weight    (t)8421663Power (kW)75Slewing    mechanismSpeed (m/min)0~0.53Power (kW)2×7.5kWTrolleying    mechanismSpeed (m/min)2.2(15°~84.5°)Power (kW)45

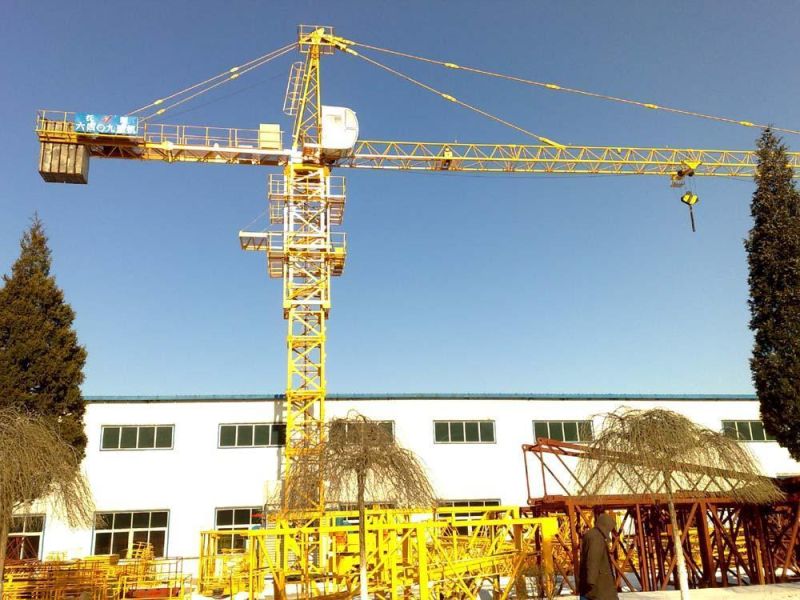

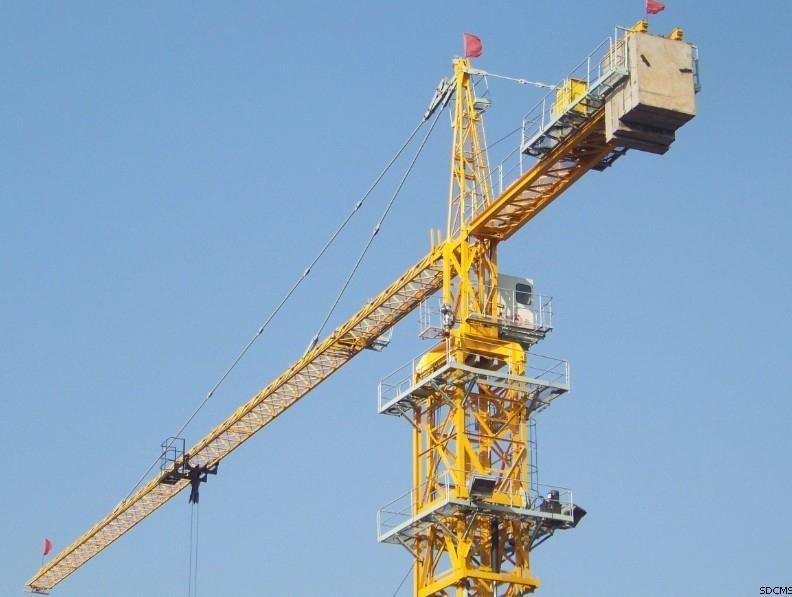

Pictures
