Industrial Crane Type Lifting Magnet for Lifting Wire Rod
Yueyang Shengang Lifting Electromagnet Co., Ltd.- Certification：ISO9001
- Condition：New
- Operation Form：Remote Control
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：<20t
- Main Girder Form：Double Girder
Base Info
- Model NO.：MW22-14072L,2
- Type：Beam
- Color：Red
- Shape：Rectangular
- Rated Voltage：DC-220V
- Duty Cycle：60%
- Cold-State Power：7.8kw
- Conductor Coil：Aluminum or Copper
- Weight：1830kw
- Industrial Application：Lifting Blooming Billet, Wire Rod etc
- Temperature Type：High Temperature
- Complete Set of Equipments：Electromagnet, Cable Reel, Control Panel
- Transport Package：Standard Export Package
- Specification：ISO9001: 2008
- Trademark：SHENGANG MAGNET
- Origin：China
- HS Code：850590000
- Production Capacity：100 Sets Per Month
Description
ModelMW22-14072L/2
MW22-21072L/2
MW22-27072L/2
MW22-30072L/2
MW22-34072L/2
MW22-42072L/2
MW22-54072L/2
MW22-60072L/2
MW22-63072L/2
MW22-700072L/2
Overall dimension (mm) A 1400 2100 2700 3000 3400 4200 5400 6000 6300 7000 B 1180 1180 1180 1180 1180 1180 1180 1180 1180 1180 C 500 700 800 1000 1200 1500 1700 3300 3400 4300 D 600 600 600 600 600 600 600 600 600 600 E 1000 1200 1500 1700 1900 2200 2400 4000 4100 50000 F 720 720 720 720 720 720 720 720 720 720 Mass (kg) 1830 2760 3410 3790 4290 5350 6750 7520 8020 8650 Power(kw) 7.8 11.8 14.9 16.5 19.1 23.6 19.7 33 35.6 39.3 Example for lifting capacity Outer Diameter
(mm) 1250-1350 Weight
(kg/m) 1180kg/m Length depend on the length of electromagnet
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection:
1.Please inform us length, outer diameter of each wire rod? 2.How many wire rods need to be transported for one time? And the weight of these billets? 3. What kind of working site does the magnet work? Indoor or outdoor? How about the working temperature?
4.Kindly provide your power supply information (__V, DC/AC, __Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).

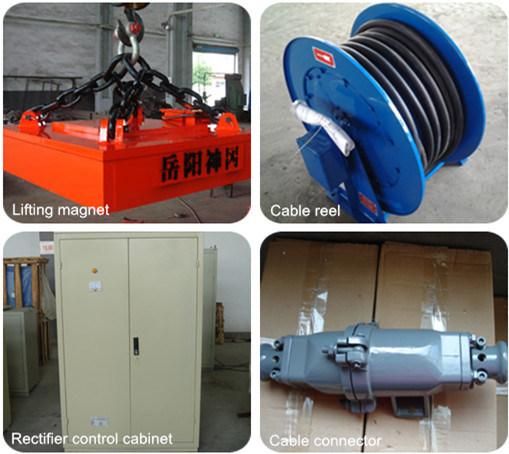

Complete set of equipment:
· Lifting magnet
· Spring type cable reel with cable
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type)
· Cable connector / Quick coupling

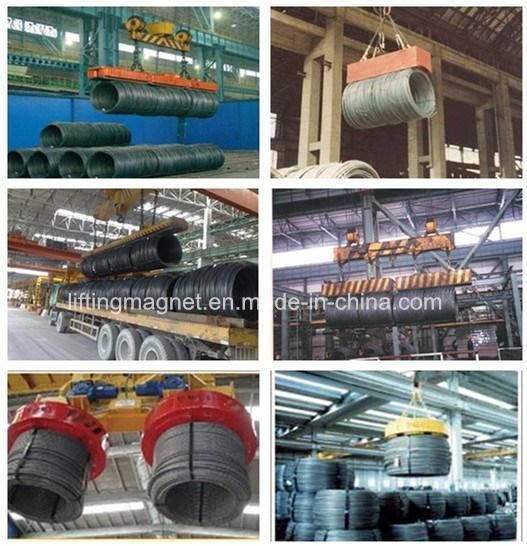

Application Pictures:

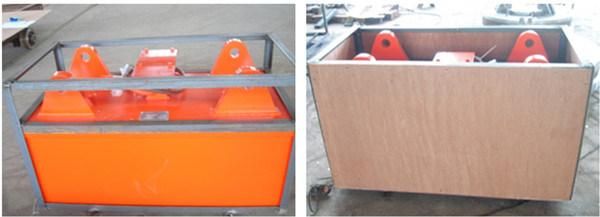

Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
If need additional information or have any queries,please feel free to contact us at any time.
