• Model NO.：ZTC550V532
• Shaft Number：4
• Crane Jib：Two-Arm
• Type：Folding
• Max. Rated Lifting Capacity：55000kg
• Max. Lifting Height of Jib：46.58m
• Boom Demrricking up Time：25s
• Outrigger Spread：5.40m
• Transport Package：Comply with Export Packaging Requirements for Min
• Specification：13700*2800*3650mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84262000
• Production Capacity：100 Units Per Month

Overview Product Description



Product Parameters



ItemUnitValueRemarksWorking    performanceMax.    rated lifting capacitykg55000 Max.    load moment of basic boomkN.m2009 Max.    load moment of main boom(fully extended)kN.m1050 Max.    load moment of basic boomm12.6 Max.    lifting height of main boomm43.6These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm59.5Working    speeds              Max.    hoist rope speed(Main winch)m/min120 Max.    hoist rope speed(Auxiliary winch)m/min120 Boom    demrricking up times50 Boom    demrricking up times95 Slewing  speedr/min0-2.2 DrivingMax.    driving  speedkm/h76 Max.    gradeability%40 Turning    diameterm≤24 Min.  ground clearancemm260 Oil    consumption per hundred kilometersL43 MassDeadweight    in driving conditionkg42000 Complete    vehicle kerb masskg41870 Front    axle loadkg16000 Rear    axle loadkg26000 DimensionOverall    dimensions(L×W×H)mm13700×2800×3650 Longitudinal    distance between outriggersm5.92 Transversal    distance between outriggersmFully    extended:7.1,

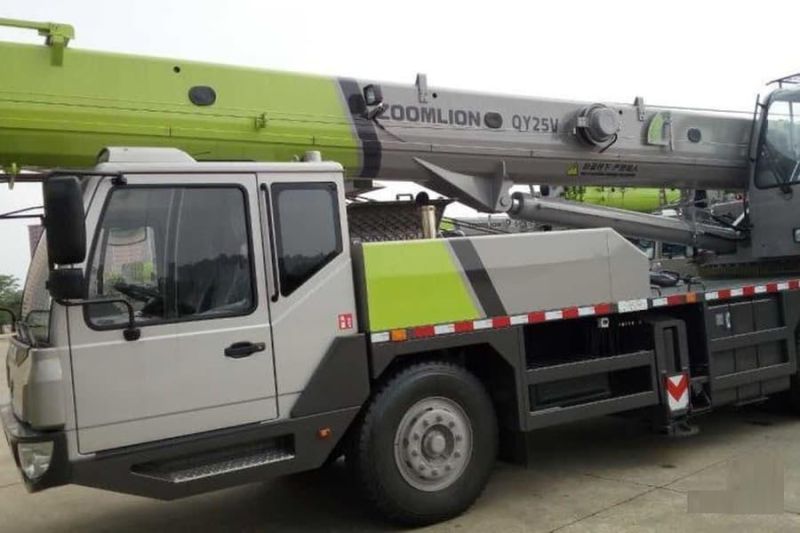

     Intermediately    extended:4.8 Tail    slewing radiusmm3900 Main    boom lengthm11.4    - 43.0 Main    boom angle°-2    - 80 jib    lengthm9.5,16.0 Offset°0,30 Detailed Photos
