• Model NO.：MH1
• Main Girder Form：Single Girder
• Capacity：500kg
• Feature：360 Rotating
• Mobile Way：Wheel
• Advantage：Height Adjustable
• Application：Especially Tradtional Crane Not Availble
• Special Point：Extremely Low Clearance
• Transport Package：Strong Wooden Box
• Specification：CE
• Trademark：LYFOO
• Origin：Beijing, China
• HS Code：84253190
• Production Capacity：10000

Basic Info.

Model NO. MH1 Main Girder Form Single Girder Capacity 500kg Feature 360 Rotating Mobile Way Wheel Advantage Height Adjustable Application Especially Tradtional Crane Not Availble Special Point Extremely Low Clearance Transport Package Strong Wooden Box Specification CE Trademark LYFOO Origin Beijing, China HS Code 84253190 Production Capacity 10000

Product Description

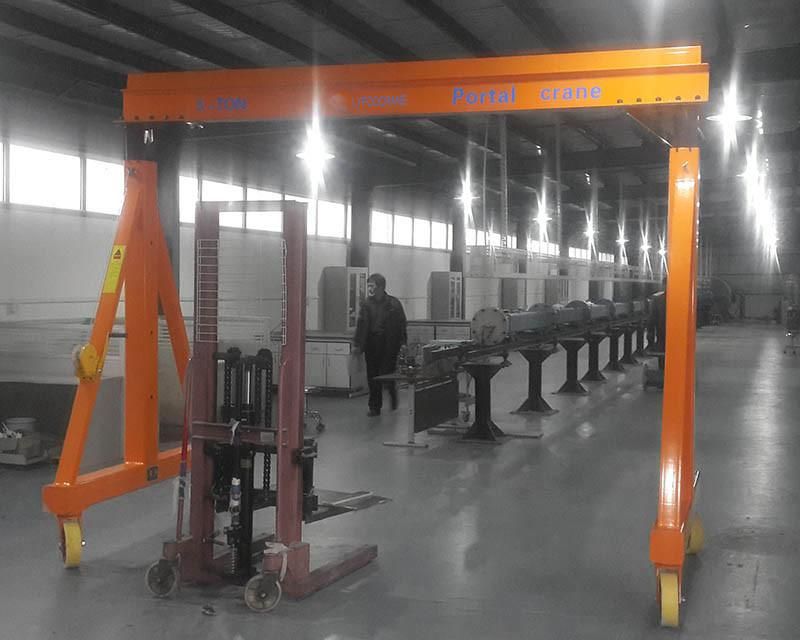

MH1 Adjustable Gantry Crane 5000kg


Mobile Gantry Crane

The MH small mobile gantry crane has 4 universal wheels, which can be manually moved freely without any tracks. It is suitable for the storage of small tonnage materials and is easy to operate and economical. The EMH electric drive mobile crane gantry is a new type of small lifting gantry developed based on the MH manual gantry according to the typical production requirements of medium and small factories, appearance, on-site and other typical production requirements. Used in molds, auto repair shops, mines, on-site and demand-enhancing sites. What the mobile gantry is concerned about is that it can use multi-directional movement, movable equipment, aerial accumulation, small cars, etc. to move to other places. Width and height are graded and dispatched, the steel structure is reasonable, and the weight can reach 100 ~ 5000 kg.



Mobile Material Handling

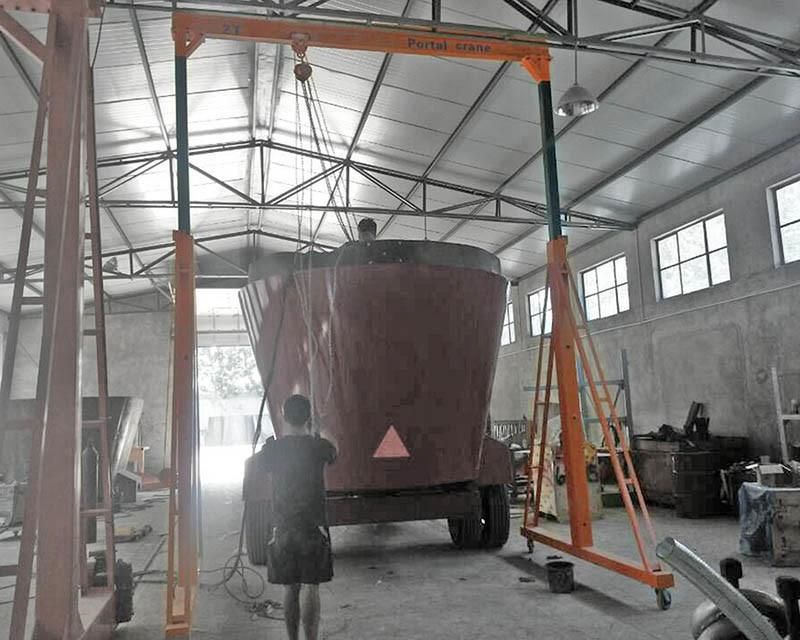

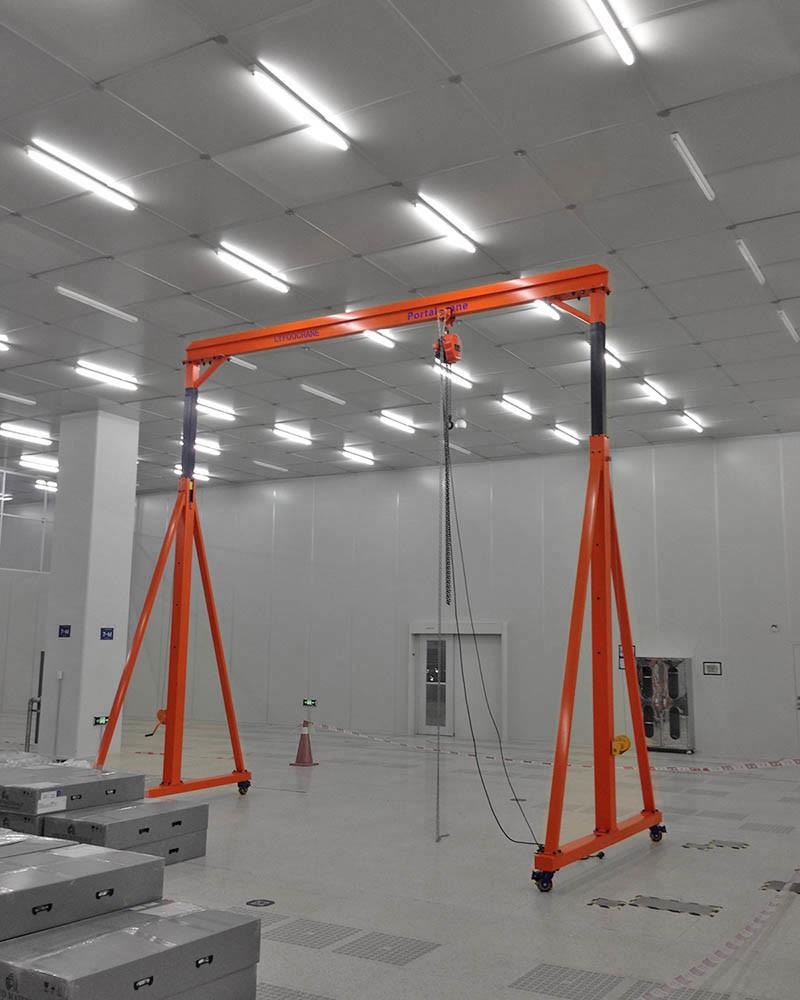

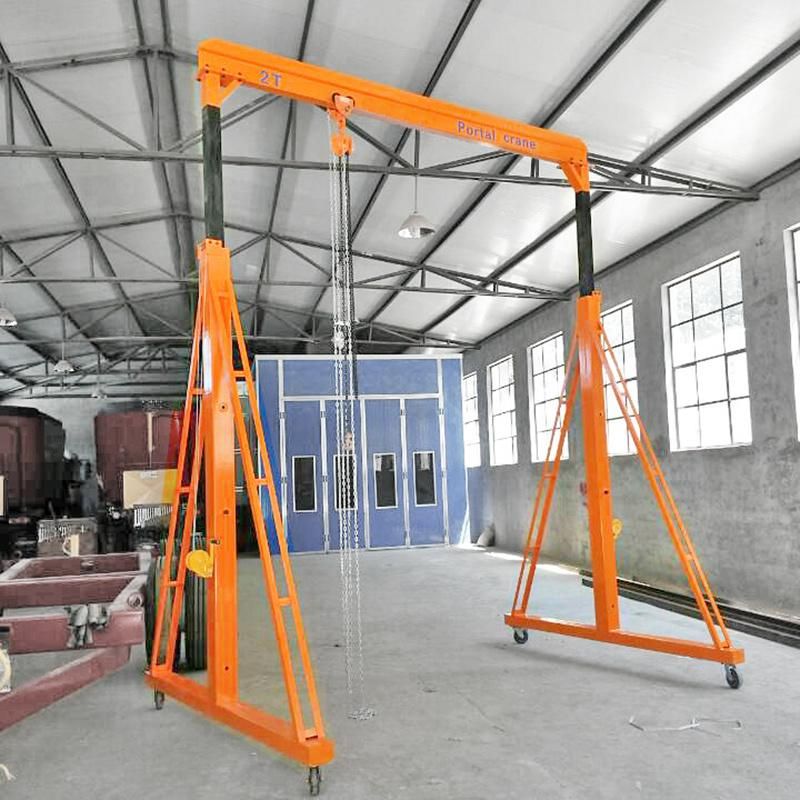

The height fixed mobile gantry crane and Height Adjustable Mobile gantry crane provides an economical solution for material lifting. It is applicable for anywhere (indoor and outdoor) within a facility. The strong caster enable you to move the crane around your facility. It is very cost effective way for a light duty working situation. The structure of the mobile crane is designed with square tube legs, knee braces and I-beam as track of the hoist.



Height Adjustable by Manual Winch

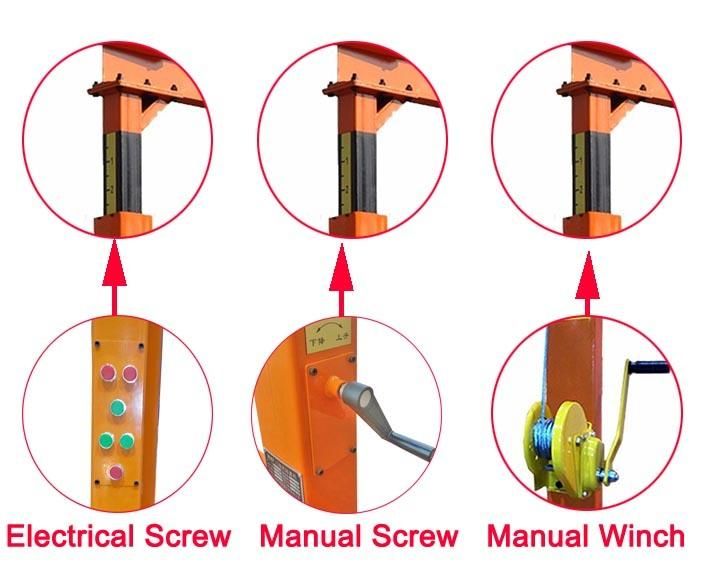

The height adjustable mobile crane is a very useful feature of the mobile crane. The overall height of the mobile crane can be adjustable. When fully extended, the gantry crane can give more effective working height than general fixed height crane, and it can go bellow to lower roof or lower obstacle when it is folded. There are 3 type of ways of adjusting: Manual Winches, Manual Screw and Electrical Screw.



A manual winch is installed on both sides of the standing leg. When adjusting the height, the workers on both sides operate the winch at the same time, so that the standing legs can be extended synchronously, so as to increase the overall height of the gantry. Since the vertical leg has been drilled in advance, the manual winch is used to adjust the height, which can increase the overall height by 130-300mm each time.

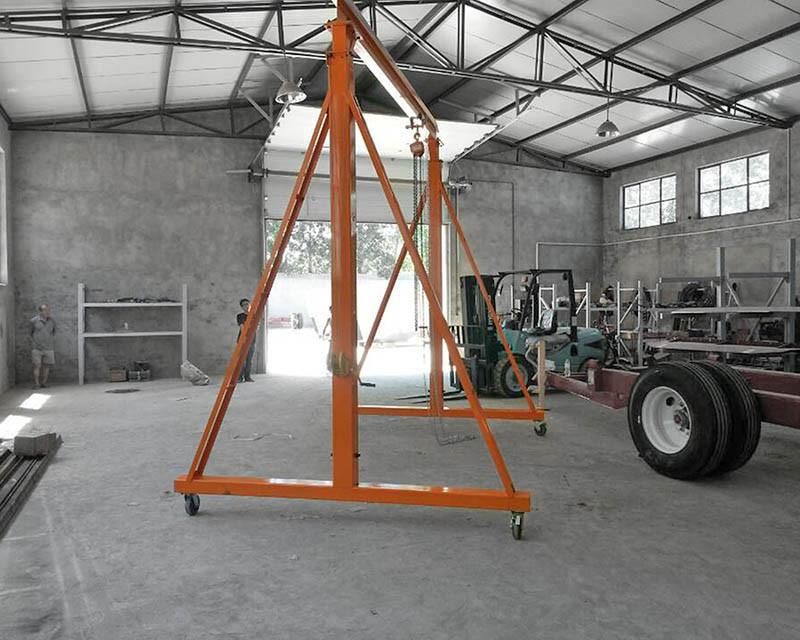

Overall Height Adjusted

The overall height can be rasied to different height.  It is very useful when certain area has some low roof.  As a result, you do not have to buy different cranes or tools. We provide 3 type of height adjusted gantry: Lever raising; Winch raising and Turbine raising model.

1. Manual Winch Ascent:

By using 2 sets of winch on both side of the leg, the beam can be raised by different height accoring to the requirement.

2. Manual Screw Ascent:

By using 2 sets of manual screw on both side of the leg, the overall height can be raised by 1mm scale.

3. Electrical Screw Ascent:

By using 2 sets of electrical screw on both side of the leg, the overall height can be raised by 1mm scale.

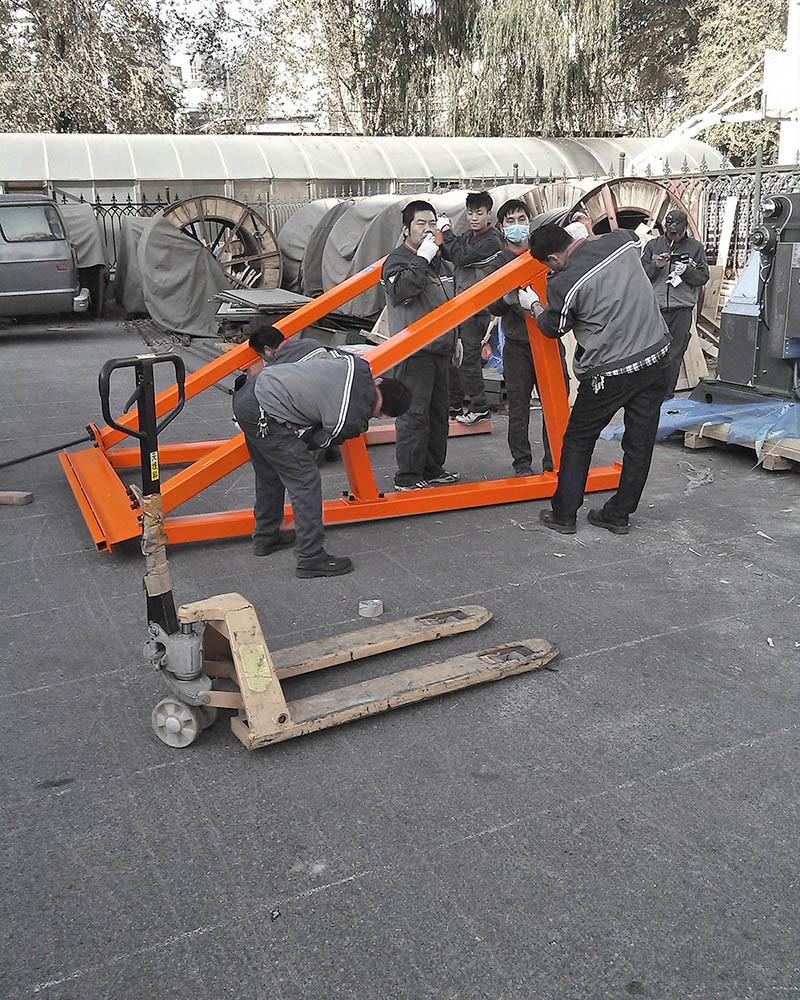

Assemble and Disamemble

1. Bolt connection
All loose parts are connected by high-strength bolts. 2 worker can assemble them at site easily.

2. Nut embeded design
Ground beam has a nut embeded designing.  This makes the assemble work very simple.  All bolts and nuts are matched perfectly.

3. Span alternative
Clinet can order differnet span of beams to meet the same legs.  It can be assembled according to different working site.

4. Other features
Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection.

 Technical Parametre

Type	Capacity(t)	Height(m)	Span(m)	Beam(mm)
MH1-0.5t	0.5	3-9m	3-9m	140
MH1-1t	1	3-9m	3-9m	160
MH1-2t	2	3-9m	3-9m	160
MH1-3t	3	3-9m	3-9m	200
MH1-5t	5	3-9m	3-9m	250
