• Model NO.：Truck-mounted crane
• Type：Folding
• Transport Package：Cartons
• Trademark：top brand
• Origin：China
• HS Code：8429521200
• Production Capacity：500000

ModelSQ2SK1QUnit Max Lifting Capacity2100kg Max Lifting Moment4.2T.M Recommend Power9kw Max Oil Flow of Hydraulic System20L/min Max Pressure of Hydraulic System16MPa Oil Tank Capacity25L Rotation AngleAll Rotation  Crane Weight640/818kg Installation Space850mm Working radius (m)2.12.53

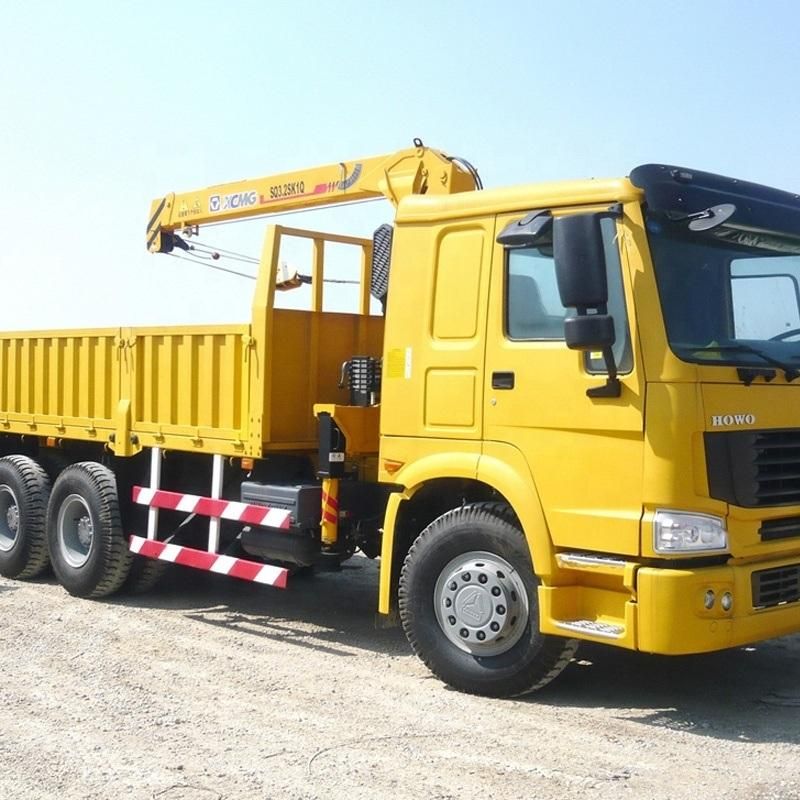

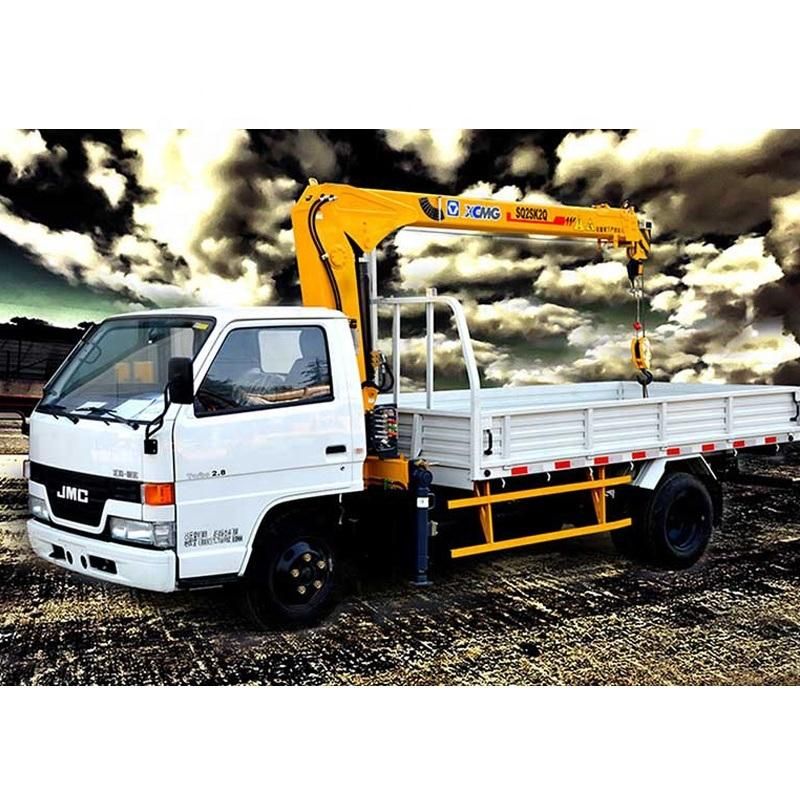

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.



So, how do high-pressure hydraulic oil get? Each truck crane is equipped with a hydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.



Competitive Advantage

My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet a variety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.

My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of a large deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.

The application of the sub-arm, sub-winch and vice-hook provides a basis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
