Qy50ka Hydraulic Heavy Lift 50 Tons Mobile Truck Crane
Qingdao Chary Machinery Co., Ltd.- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：50t
- Shaft Number：4
- Crane Jib：Four-Arm
- Type：Straight Arm
Base Info
- Model NO.：QY50KA
- Brand：Chary
- Model：Qy50ka
- Lifting Performance：50t
- Arms：4
- Engine：Weichai
- Horse Power：375
- Max.Travel Speed：80 Km,H
- Min.Turning Diameter：24m
- Min.Ground Clearance：291mm
- Approach Angle：17 Degree
- Max.Gradeability：40%
- Fuel Consumption of Per 100km：42L
- Base Boom Max.Load Moment：18222 Kn.M
- Base Boom：11.3m
- Full- Extended Boom：42.7m
- Transport Package：Nude Packing
- Specification：13770*2800*3570
- Origin：China
- HS Code：8703101100
- Production Capacity：1000,Per Month
Description
Basic Info.
Model NO. QY50KA Brand Chary Model Qy50ka Lifting Performance 50t Arms 4 Engine Weichai Horse Power 375 Max.Travel Speed 80 Km/H Min.Turning Diameter 24m Min.Ground Clearance 291mm Approach Angle 17 Degree Max.Gradeability 40% Fuel Consumption of Per 100km 42L Base Boom Max.Load Moment 18222 Kn.M Base Boom 11.3m Full- Extended Boom 42.7m Transport Package Nude Packing Specification 13770*2800*3570 Origin China HS Code 8703101100 Production Capacity 1000/Per MonthProduct Description
Qingdao Chary Machinery CO., LTDContact Person: Claudia Wang
Product discription:

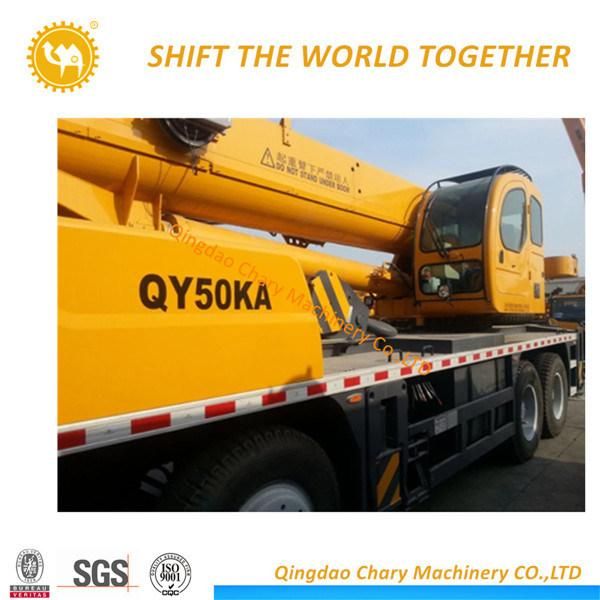

QY50KA hydraulic heavy lift 50 tons mobile truck crane
Specification:
| Item | Unit | ||
| Dimensions | Overall length | 13770 | mm |
| Overall width | 2800 | mm | |
| Overall height | 3570 | mm | |
| Weight | Dead weight in travel state | 41000 | Kg |
| Power | Engine model | WD615.334 WD615.338 WP10.336 WP10.375 | |
| Engine rated output | 247/2200 276/2200 247/2200 275/2200 | Kw(r/min) | |
| Engine rated torque | 1350(1300~1600) 1500(1300~1600) 1350(1100~1500) 1460(1200~1600) | N.m(r/min) | |
| Travel | Max.travel speed | 80 | Km/h |
| Min.turning diameter | 24 | m | |
| Min.ground clearance | 291 | mm | |
| Approach angle | 17 | . | |
| Departure angle | 11 | . | |
| Max.gradeability | 40 | % | |
| Fuel consumption of per 100km | 42 | L | |
| Lifting performance | Max.total rated lifting load | 50 | t |
| Min. working radius | 3 | mm | |
| Turning radius at swing table tail | 3482 | m | |
| Base boom max.load moment | 1822 | Kn.m | |
| Base boom | 11.3 | m | |
| Full- extended boom | 42.7 | m | |
| Full-extended boom+ jib | 57.7 | m | |
| Outrigger longitudinal distance span | 5.91 | m | |
| Outrigger lareral distance span | 6.9 | m | |
| Working speed | Boom elevating time | 40 | s |
| Boom telescoping time | 80 | s | |
| Max. slewing speed | 2 | r/min | |
| Main winch max. speed(no load) | 130 | m/min | |
| Auxiliary winch max. speed(no load) | 120 | m/min |
