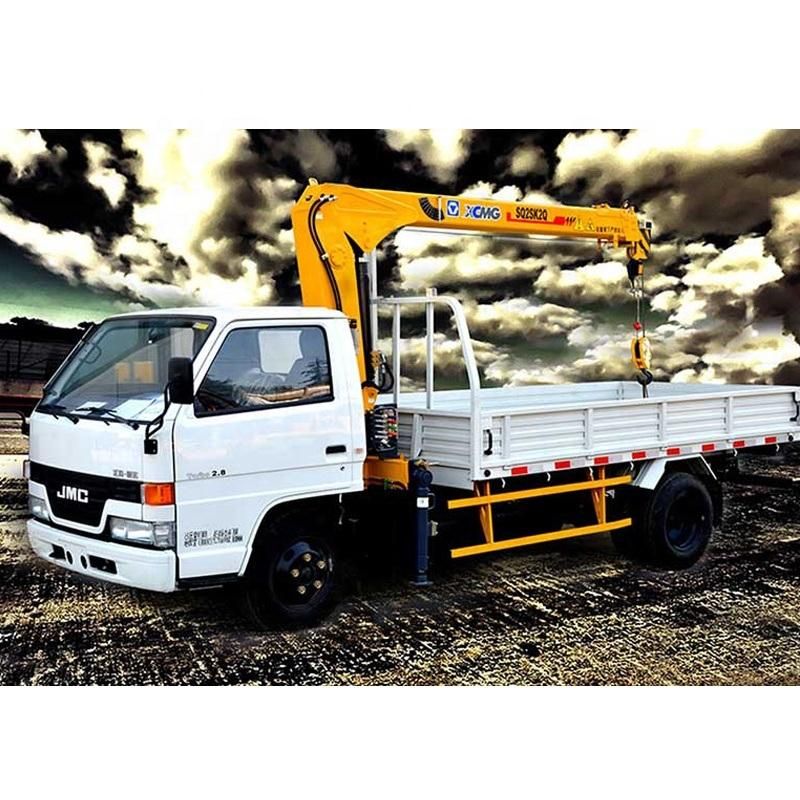

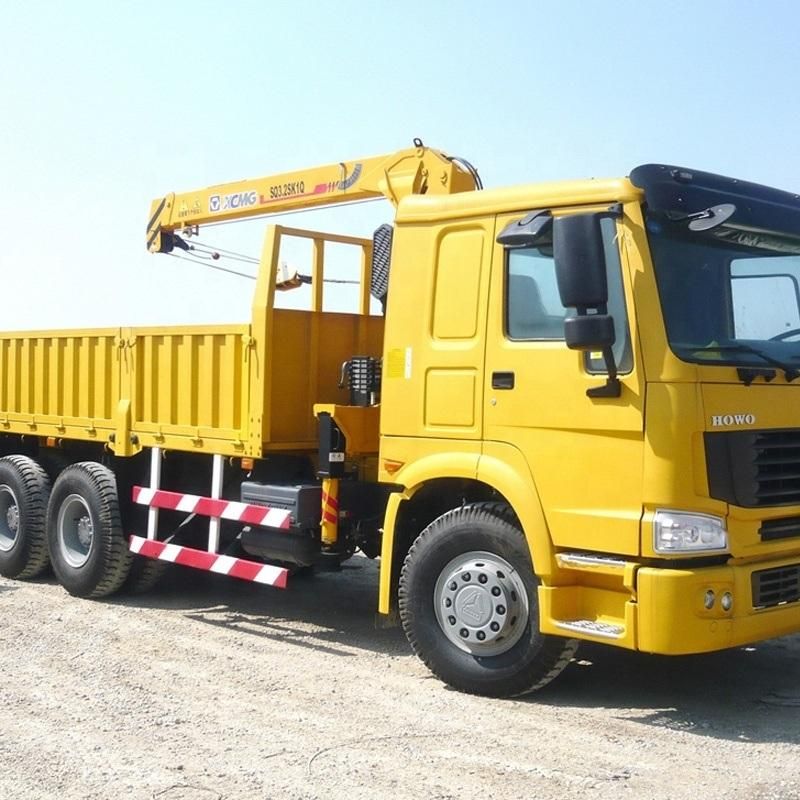

• Model NO.：6300kg Truck-mounted crane
• Type：Folding
• Transport Package：Cartons
• Trademark：top brand
• Origin：China
• HS Code：8429521200
• Production Capacity：500000

ModelSQ6.3SK2QUnitMax Lifting Capacity6300kgMax Lifting Moment15.7T.MRecommend Power20kwMax Oil Flow of Hydraulic System40L/minMax Pressure of Hydraulic System20MPaOil Tank Capacity90LRotation AngleAll Rotation Crane Weight2117/2270kgInstallation Space900mmChoice of ChassisCA1163P7K2L3E ; CA1176PK2L9T3A95 ; CA1170PK2L7T3EA80; CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1202KR1K3; EQ1141NBJ2; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S; NXG1160D3ZAL1XSQ6.3SK2Q Lifting capability diagramWorking radius (m)2.53.826.178.5Lifting capacity (kg)630029001600

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.



So, how do high-pressure hydraulic oil get? Each truck crane is equipped with a hydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.



Competitive Advantage

My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet a variety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.

My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of a large deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.

The application of the sub-arm, sub-winch and vice-hook provides a basis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
