• Model NO.：QUY75
• Transport Package：Nude
• Trademark：Top Brand
• Origin：Jiangsu, China
• HS Code：8429521200

Basic Info.

Model NO. QUY75 Transport Package Nude Trademark Top Brand Origin Jiangsu, China HS Code 8429521200

Product Description

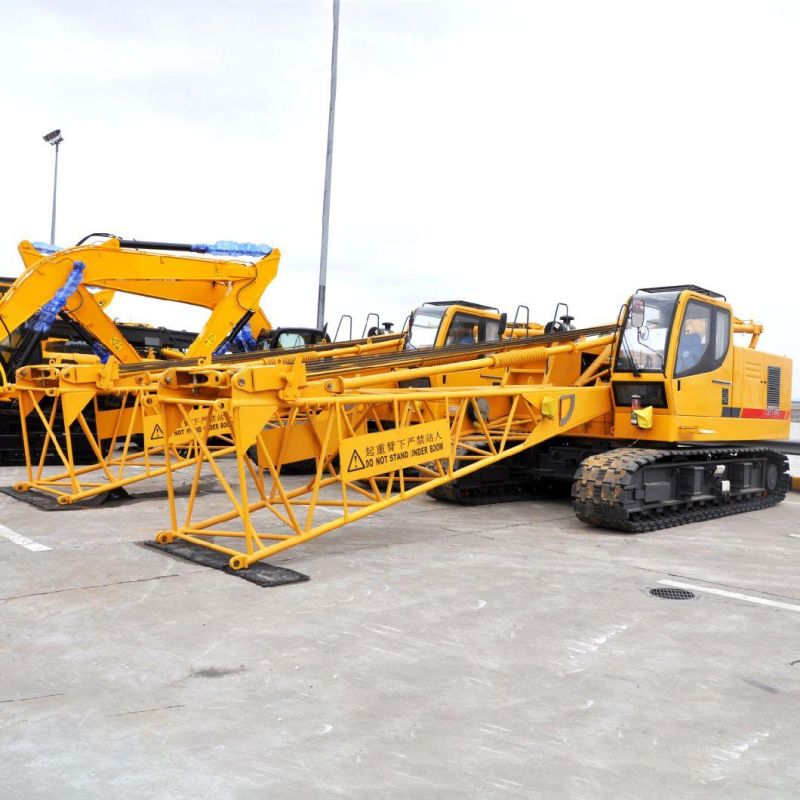

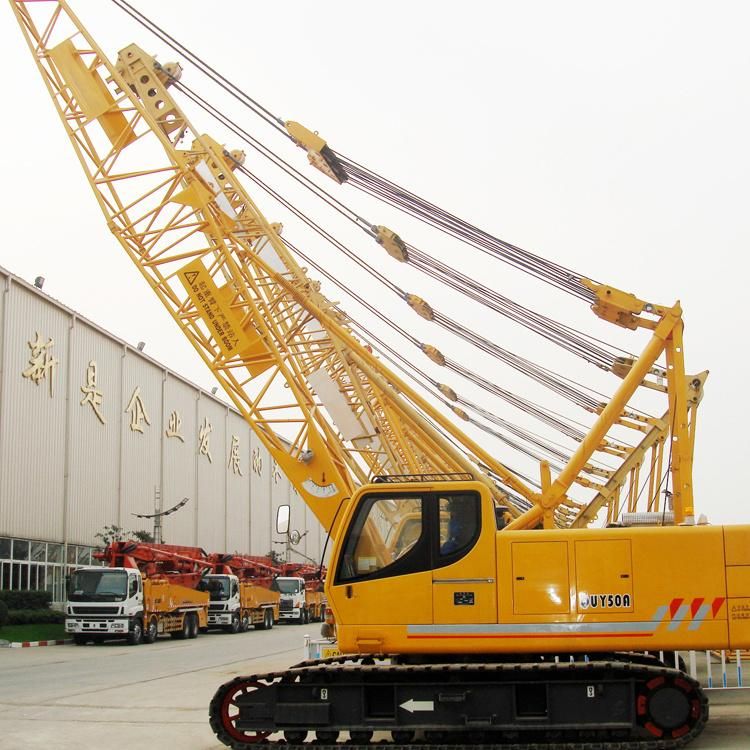

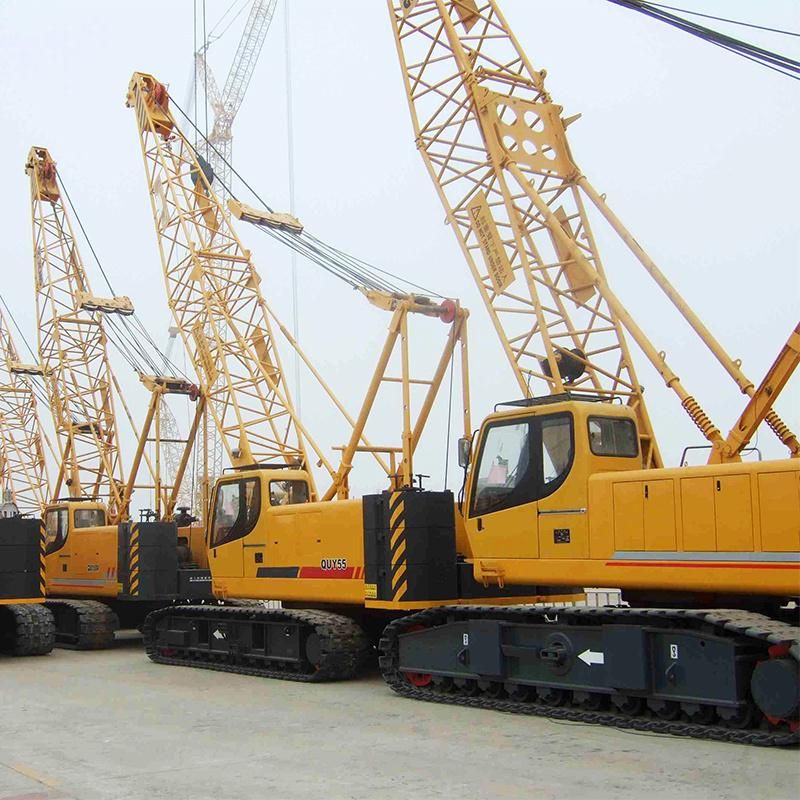

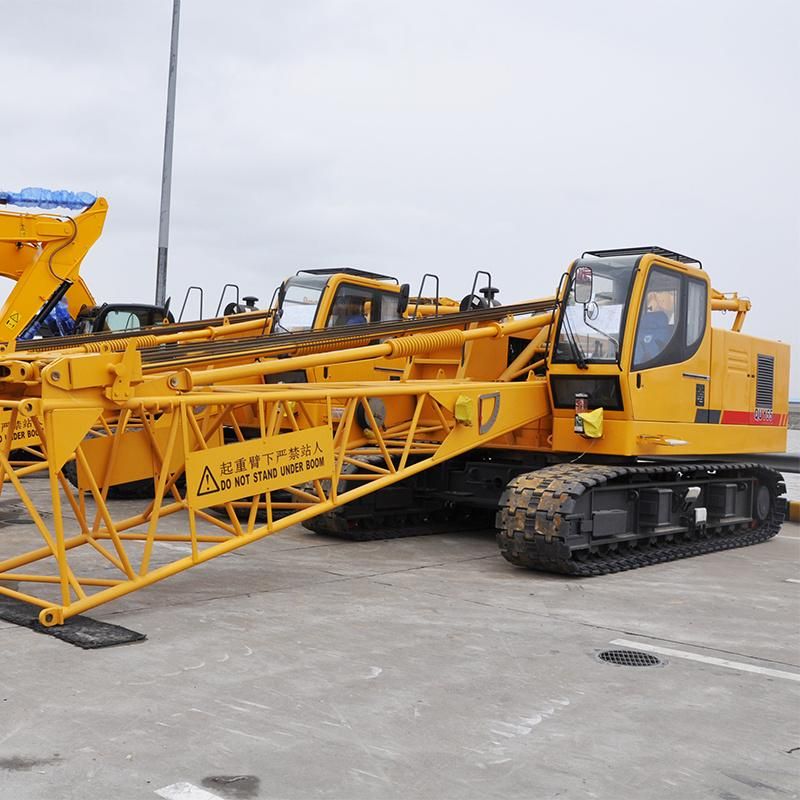

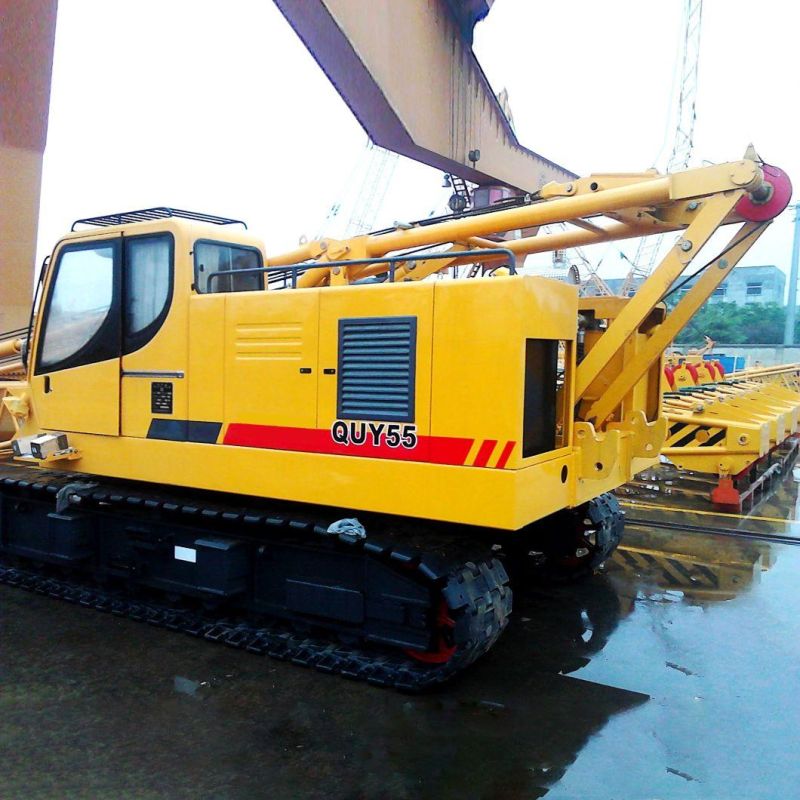

High Quality 75 Ton Mini Crawler Crane Hot Sale in Singapore Quy75

Features:

1. Safety control system:
Two convenient and reliable modes of operation; Working and installation, with real-time level display, stop operation braking away from machine, electrical emergency control, anti-lightning protection, automatically walk switches, CCTV monitoring function, complete safety and supervision system;

2. Excellent operating performance:
Advanced load-sensing, limit load regulation and electrohydraulic proportional micro-speed control make each micro-movement extremely good and operation more stable;

3. Reliable function assurance:
Key components adopt famous international brands; Sufficient safety margin for structural and mechanical design; Control system can operate stably in harsh environments such as cold, high temperature, altitude and sandy conditions;

4. Convenient maintenance technology:
It takes approximately no more than 10min/person to adjust; No more than 30min/per son for dai ly maintenance; No more than 2h/person to repair. GPS remote monitoring system is optional for maintenance and management;

5. Powerful lifting capacity:
The maximum lifting capacity of boom is 50t× 3.7m=185t· M, and the max. Length of main boom is 52m;

6. Flexible configuration combination:
Free hook is optional;

7. Large-chassis design:
Track frame which can be broadened, ensuring excellent machine and job stability within the range of 360 ° Rotation;

8. Optimized transportation programs:
With the function of crawler frame telescopic function, the max. Transportation width of the whole machine is 3.36m;

9. Two counterweight configurations:
Improve the lifting capacity of medium and long boom.

Parameter

Item	Unit	Parameter value
Parameter Item	-	XGC75
Operation performance parameter		*
Max. rated lifting capacity for boom	(t)	75
Max. rated lifting capacity for fixed jib	(t)	12
Max. rated lifting capacity for luffing jib	(t)	-
Max. load moment	(t.m)	286
Max. rated lifting capacity for tower jib	(t)	-
Max. rated lifting capacity for boom single top	(t)	6.5
Max. rated lifting capacity for special jib	(t)	-
Dimension parameter		*
Boom length	(m)	13~58
Boom luffing angle	(°)	-3~80
Fixed jib length	(m)	7~19
Tower jib length	(m)	-
Max. dimension of single unit in transport state(L×W×H)	(m)	12.7×3.4×3.4
Fixed jib offset angle	(°)	10,30
Special jib length	(m)	-
Speed parameter		*
Max. single line speed for hoist mechanism	(m/min)	128
Max. single line speed for boom luffing mechanism	(m/min)	70
Max. single line speed for jib luffing mechanism	(m/min)	-
Max. slewing speed	(r/min)	3
Max. travel speed	(km/h)	1.4
Grade ability	(%)	30
Mean ground pressure	(MPa)	0.08
Max. single line speed for tower jib luffing mechanism	(m/min)	-
Max. single line speed for superlift luffing	(m/min)	-
Engine		*
Model	-	SC7H210/QSB6.7
Engine power	(kW)	155/153
Emission	-	National III/EU III
Mass parameter		*
Overall crane mass	(t)	61(main hook, 13m boom)
