• Model NO.：LD
• Maximum Lifting Weight：>200t
• Main Girder Form：Double Girder
• Type：Single Girder Crane
• Factory：Zhongyuan Shengqi Co., Ltd.
• Crane Type：Overhead
• Quality：Reliability & Durability
• Types of Electric Hoist：CD, MD
• Crane Traveling Speed：20,30 M,Min
• Crane Motor：Zd52-4,18.5kw and Zd41-4,7.5kw
• Lifting Speed(M/Min)：8, 0.8,8; 7, 0.7,7
• ISO 14001:2004：Passed
• Ohsas 18001:1999：Passed
• Application：Workshop Usage
• Sling Type：Wire Rope
• Power Source：Electric
• Transport Package：Wooden Box, Plywood
• Trademark：LYFOOCRANE
• Origin：Xinxiang, Henan, China
• HS Code：84261120
• Production Capacity：15000 Per Year

Basic Info.

Model NO. LD Maximum Lifting Weight >200t Main Girder Form Double Girder Type Single Girder Crane Factory Zhongyuan Shengqi Co., Ltd. Crane Type Overhead Quality Reliability & Durability Types of Electric Hoist CD, MD Crane Traveling Speed 20/30 M/Min Crane Motor Zd52-4/18.5kw and Zd41-4/7.5kw Lifting Speed(M/Min) 8, 0.8/8; 7, 0.7/7 ISO 14001:2004 Passed Ohsas 18001:1999 Passed Application Workshop Usage Sling Type Wire Rope Power Source Electric Transport Package Wooden Box, Plywood Trademark LYFOOCRANE Origin Xinxiang, Henan, China HS Code 84261120 Production Capacity 15000 Per Year

Product Description

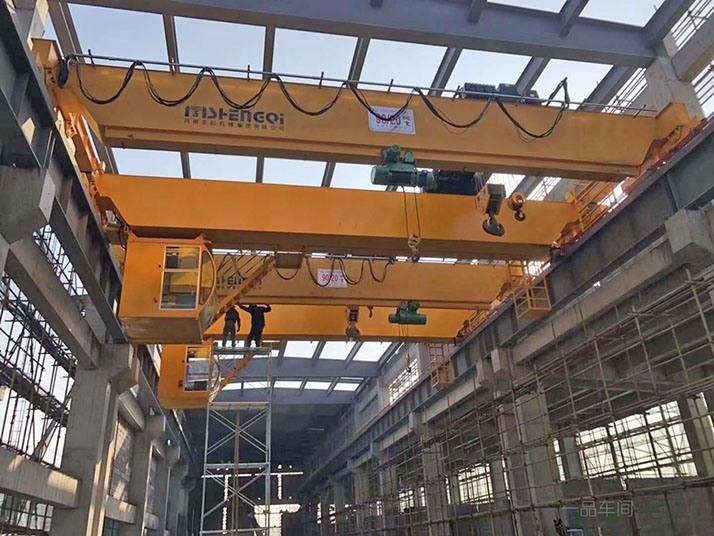

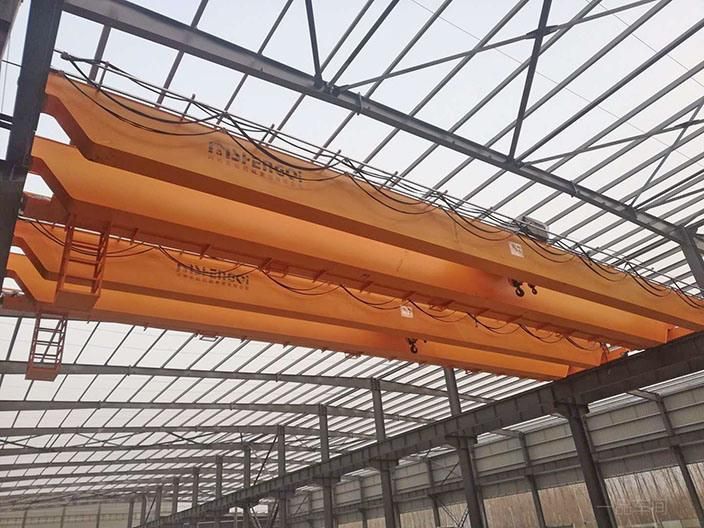

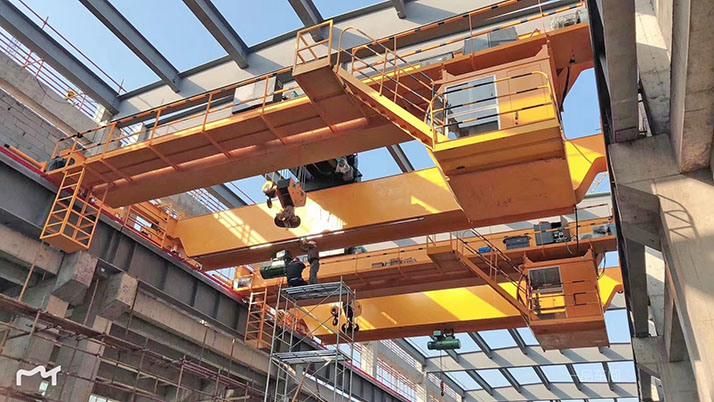

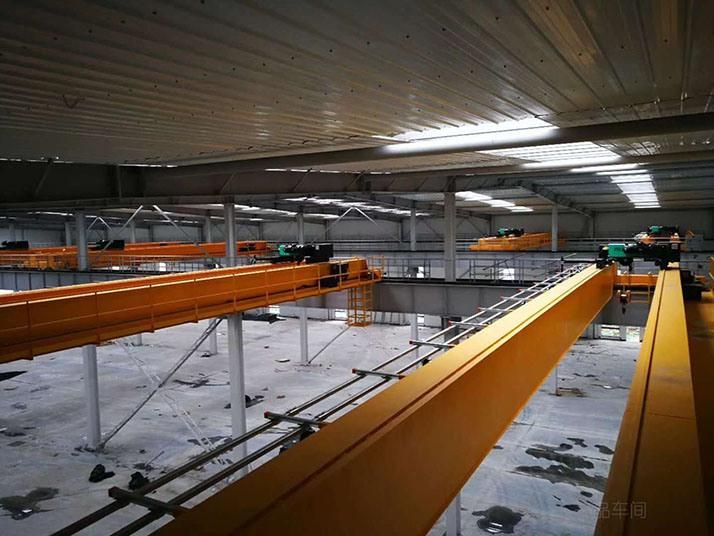

FEM/ASTM/DIN Double Girder Overhead Crane

Brief Introduction

CXTD series double girder overhead crane is designed in compliance with FEM manufacture standard, the reasonable structure, high intensity performance and stability features minimize crane deadweight and offer extremely good operation even morden constructed workshop , thanks to the optimized structure make it easy to assemble where is effectively reduce workshop construction costs. This series crane stands in line with the world main stream.

Advantage

 1. Low dead weight- FEA technology designed box section, reasonable structure, sound stress requirements via analyzing.

2. High working intensity geared motor to main lifting, lifetime lubricative gear box, overheating protection, sound mechanical performance.

3. Electromagnetic brake along with adjustable brake disc device, extremely low maintenance rate, effective working life which should not less than 1 million times operation.

4.Trinity drive units outfit to C.T & L.T  part, VVVF speed control and closed gear transmission, low  noise.

5. Modular designed electric cabinet, world class  sub-vendor for electrical component supply, anti-phase dislocation, default phase and over current protect.

6. Shorterzing treat hook apply to anti-fray material, effectively protect hook shell rubbing from wire rope, 360° horizontal & 180° vertical rotating, making operation easily.

7. Full sets of limit switches effect while hoisting, C.T and L.T reach to limits, make sure crane each mechanism, each time operation safe.
