• Model NO.：LD
• Type：Single Girder Crane
• Color：Industrial Yellow and Red
• Power Supply：380V,50Hz,3, Can Be Customized
• Sling Type：Wire Rope
• Application：Construction Usage, Workshop Usage
• Lifting Equippmeny：CD1,MD1 Electric Hoist
• Stepless Speed Control：Available (Variable Frequency Control)
• Electrical System Brand：Siemens,Schneider,Chint
• Applicable Work Duty：A3~A7
• Hoist Lift Speed：0.8,8 M,Min
• Cross Speed：20 M,Min
• Transport Package：Strong Wooden Box
• Specification：A3-S5
• Trademark：LYFOO
• Origin：Henan, China
• HS Code：7201500010
• Production Capacity：10, 000 Sets Per Year

Basic Info.

Model NO. LD Type Single Girder Crane Color Industrial Yellow and Red Power Supply 380V/50Hz/3, Can Be Customized Sling Type Wire Rope Application Construction Usage, Workshop Usage Lifting Equippmeny CD1/MD1 Electric Hoist Stepless Speed Control Available (Variable Frequency Control) Electrical System Brand Siemens/Schneider/Chint Applicable Work Duty A3~A7 Hoist Lift Speed 0.8/8 M/Min Cross Speed 20 M/Min Transport Package Strong Wooden Box Specification A3-S5 Trademark LYFOO Origin Henan, China HS Code 7201500010 Production Capacity 10, 000 Sets Per Year

Product Description

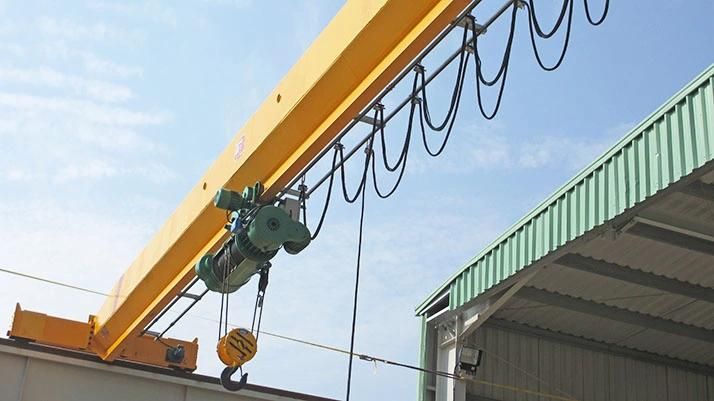

_{LD-Single Girder Overhead Crane}

Under Running Crane (LD)

The LD type of under running overhead crane (also called bridge crane )is the most popular designing since the very beginning.  Our annual turnout is 20,000 units for the whole market. The main girder adopts 6mm and 8mm thickness steel plate. Chinese workshop has a 1700mm clearrance above the rail, which is excellenct for the maintenance of the crane.  In some Middle East countries, the clearance is  less than this, and please indicate this data when you placing the order.

Steel Plate Cutting and Treatment

The board was cut by auto-cutting machine.



Main Beam

We reserve the concept of "safety factor", and remain the traditional main beam fabrication methord. Each of the beam is made by 6mm thickness of side board, and 8mm top and bellow board.



Bearing System

The  reducer is hardtooth designing. Bearing is HA/WA/LUO 3 brands. Casting box type. The gear box is made by our factory in order to give a reliable quality. The market has many suppliers, and some of them can get 50% price than ours.  However, we do not reduce the quality in order to reduce the cost.



Safety Device

  Long travel limit switch

  Cross travel limit switch

  Counter-weight and pedal limit switch for hoisting

  Pedal limit switch for lowing

  Overload limit switch



End Trucks (Carriage)

Soft start driving system(380v only) makes the long travel smoothly, reduces noise.  Modular system designing gives the crane more free working space. Unique conbinations with steel profiles sections for maximum distance between suspensions.

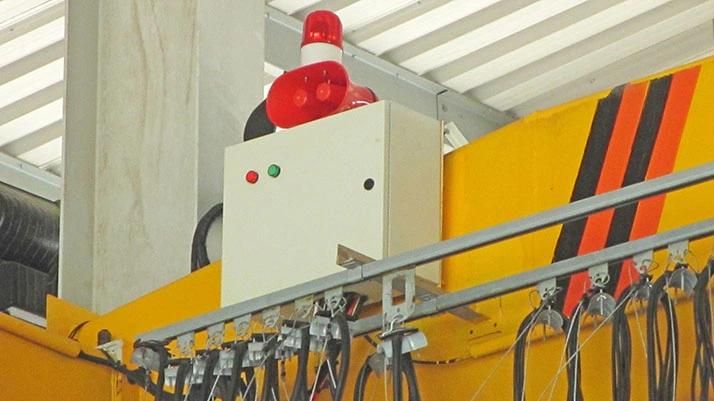

Double C-track Festoon System



 4mm thickness national standard trackpull  and push wheel with sealed bearing

 Flat cable for strong life.

 Electrical box has indication of working.

 This double C-track festoon system makes the driver can be seperate from the hoist , so that give a maximum safety protection.

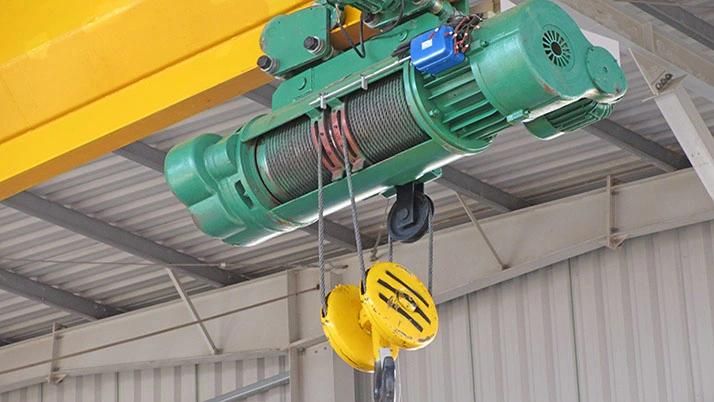

Hoist

The crane forms  a complete set with CD1/MD1 electric hoist. Our Hoist  Motor is a very part of electrical hoist. we choose the Nanjing Zongchang(Best in China) motor to provide you a best usig experience.it has the advantages of soft starting and outstanding electricity saving effect.

Our hooks are all forged under the national standard. we can assure you the good quality.



MD1 type  electrical hoist add one more motor with lower output  based on CD1type.MD1 type can adjust to the work need more accuracy. it can stop at your exact litfing position for you to operate


Notice:

As this kind of crane is customized, in order to offer you most suitable design and solution, please confirm following information when you send inquiry.

1. Lifting capacity.
2. Span length. (rail center to rail center)
3. Lifting height. (hook center to ground)
4. Do you need bus bar, rail from us?
5. Local power supply 380V 50Hz 3P?
6. Working condition: What goods to lift?
7. Drawings of working place would be appreciated.
