• Model NO.：LD
• Type：Single Girder Crane
• Color：Industrial Yellow and Red
• Sling Type：Wire Rope
• Application：Workshop Usage
• Power Supply：380V,50Hz,3p, Can Be Customized
• Traveling Speed：20m,Min
• Lifting Speed：8,0.8m,Min
• Lifting Equippment：CD1,MD1 Hoist
• Electrical System Brand：Siemens,Schneider,Chint
• Stepless Speed Control：Available (Variable Frequency Control)
• Affiliate Documents：English Operation Manual, Wiring Diagram
• Transport Package：Wooden or Plastic
• Specification：A3-A5
• Trademark：LYFOO
• Origin：Henan, China
• HS Code：84261120
• Production Capacity：1, 000 Sets Per Year

Basic Info.

Model NO. LD Type Single Girder Crane Color Industrial Yellow and Red Sling Type Wire Rope Application Workshop Usage Power Supply 380V/50Hz/3p, Can Be Customized Traveling Speed 20m/Min Lifting Speed 8/0.8m/Min Lifting Equippment CD1/MD1 Hoist Electrical System Brand Siemens/Schneider/Chint Stepless Speed Control Available (Variable Frequency Control) Affiliate Documents English Operation Manual, Wiring Diagram Transport Package Wooden or Plastic Specification A3-A5 Trademark LYFOO Origin Henan, China HS Code 84261120 Production Capacity 1, 000 Sets Per Year

Product Description

_{LD-Single Girder Overhead Crane}

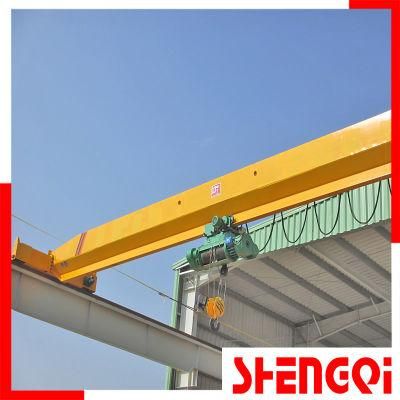

Under Running Crane (LD)

The LD type of under running overhead crane (also called bridge crane )is the most popular designing since the very beginning.  Our annual turnout is 20,000 units for the whole market. The main girder adopts 6mm and 8mm thickness steel plate. Chinese workshop has a 1700mm clearrance above the rail, which is excellenct for the maintenance of the crane.  In some Middle East countries, the clearance is  less than this, and please indicate this data when you placing the order.

Steel Plate Cutting and Treatment

The board was cut by auto-cutting machine.



Main Beam

We reserve the concept of "safety factor", and remain the traditional main beam fabrication methord. Each of the beam is made by 6mm thickness of side board, and 8mm top and bellow board.



Bearing System

The  reducer is hardtooth designing. Bearing is HA/WA/LUO 3 brands. Casting box type. The gear box is made by our factory in order to give a reliable quality. The market has many suppliers, and some of them can get 50% price than ours.  However, we do not reduce the quality in order to reduce the cost.

Safety Device

  Long travel limit switch

  Cross travel limit switch

  Counter-weight and pedal limit switch for hoisting

  Pedal limit switch for lowing

  Overload limit switch


End Trucks (Carriage)

Soft start driving system(380v only) makes the long travel smoothly, reduces noise.  Modular system designing gives the crane more free working space. Unique conbinations with steel profiles sections for maximum distance between suspensions.

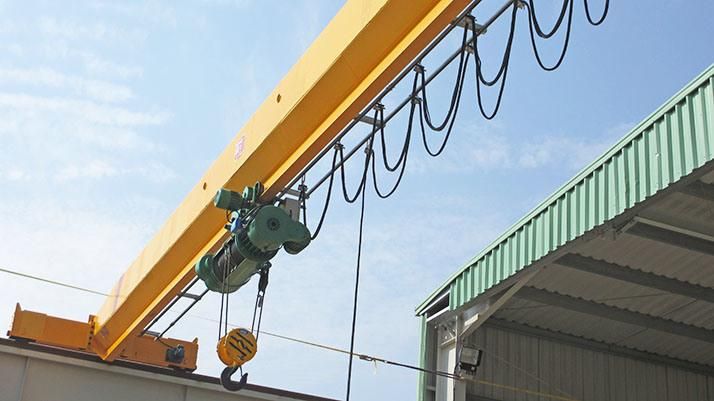

Double C-track Festoon System



 4mm thickness national standard trackpull  and push wheel with sealed bearing

 Flat cable for strong life.

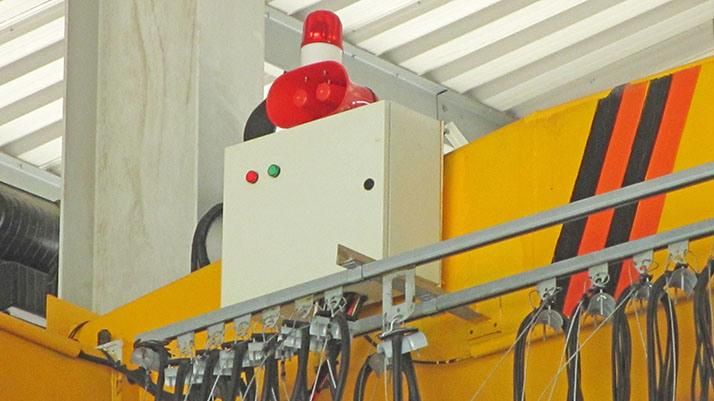

 Electrical box has indication of working.

 This double C-track festoon system makes the driver can be seperate from the hoist , so that give a maximum safety protection.

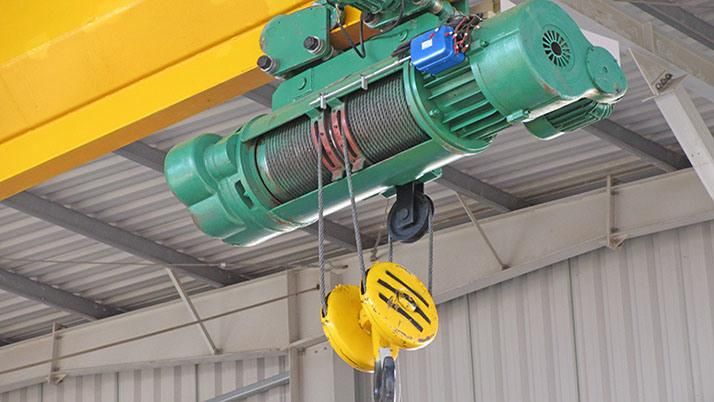

Hoist

The crane forms  a complete set with CD1/MD1 electric hoist. Our Hoist  Motor is a very part of electrical hoist. we choose the Nanjing Zongchang(Best in China) motor to provide you a best usig experience.it has the advantages of soft starting and outstanding electricity saving effect.

Our hooks are all forged under the national standard. we can assure you the good quality.



MD1 type  electrical hoist add one more motor with lower output  based on CD1type.MD1 type can adjust to the work need more accuracy. it can stop at your exact litfing position for you to operate
Features:1) Reasonable structure2) Favorable performance3) Smooth starting and stopping4) Safe and reliable traveling5) Low noise, commodious cabin and good view6) Convenient maintenance, excellent exchangeability for parts and components7) Saves electricity Notice:This product is widely applicable in factory, warehouse, logistics etc, but it strictly forbid to use in such dangerous operating as easily combustible, explosive, corrosive, acid, alkali, plating, steam, heat liquid, overloading , dust etc.

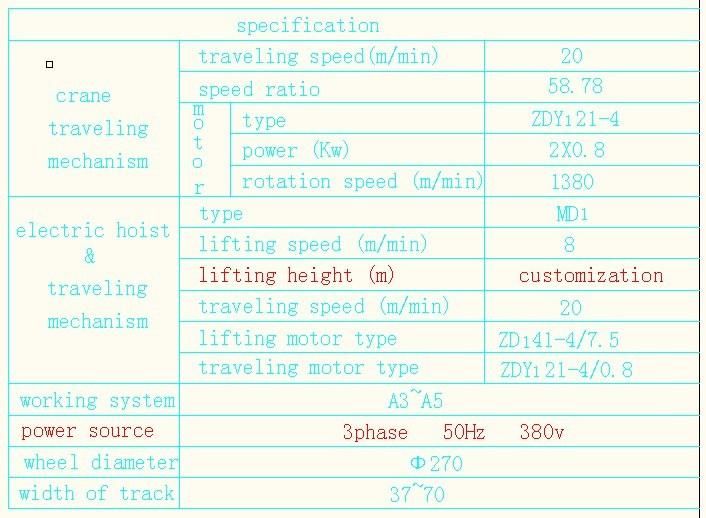

Basic Prametres;

Capacity	0.5t~20t
Span	4.5m~30m
Lift height	6m~12m
Lifting Speed	7m/min
Cross Travel Speed	20m/min
Long Travel Speed	20m/min or 30m/min
Work Duty	A3(Equal to m2)
Controlled by	Pendant/Radio
Power Supply	380v/400/415v/4

 Safety insurance:1. Our cranes are all equipped with weight limiters, buffer, distance limit switch, voltage protection equipment, and emergency stop system and so on.2. The equipment is controlled by central control system. Quality guaranty:1. The quality of our crane would be guaranteed for one year, in this period, if any quality problem happens under correct operation, we will be responsible for repairing of replacing it for free.2. Low charge for maintenance when warranty is expired

Sketch:
