• Model NO.：ZTC250V431
• Type：Folding
• Max. Rated Lifting Capacity：25000kg
• Max. Lifting Height of Jib：46.58m
• Boom Demrricking up Time：25s
• Outrigger Spread：5.40m
• Transport Package：Comply with Export Packaging Requirements for Min
• Specification：12700*2500*3450 mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84262000
• Production Capacity：100 Units Per Month

Overview Product Description



Product Parameters



ItemUnitValueRemarksWorking    performanceMax.    rated lifting capacitykg25000 Max.    load moment of basic boomkN.m960 Max.    load moment of main boom(fully extended)kN.m600 Max.    load moment of basic boomm11.4 Max.    lifting height of main boomm35.4These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm43.0Working    speeds             Max.    hoist rope speed(Main winch)m/min135At    the 4th  layerMax.    hoist rope speed(Auxiliary winch)m/min135At    the 2nd   layerBoom    demrricking up times25 Boom    demrricking up times25 Slewing  speedr/min0    -2.7 Driving    parametersMax.    driving  speedkm/h90 Max.    gradeability%42 Turning    diameterm≤20 Min.  ground clearancemm250 Oil    consumption per hundred kilometersL28 MassDeadweight    in driving conditionkg27800 Complete    vehicle kerb masskg27670 Front    axle loadkg6500 Rear    axle loadkg21300 DimensionsOverall    dimensions(L×W×H)mm13100×2500×3450 Outrigger    spread(L)m5.40 Outrigger    spread(W)mFully    extended:6.2,

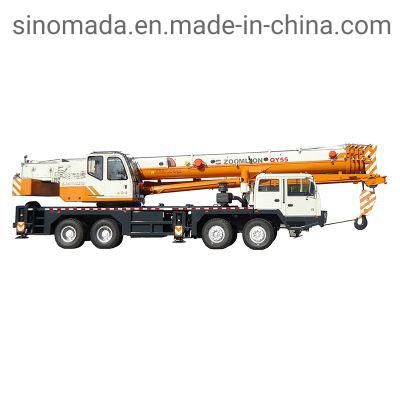

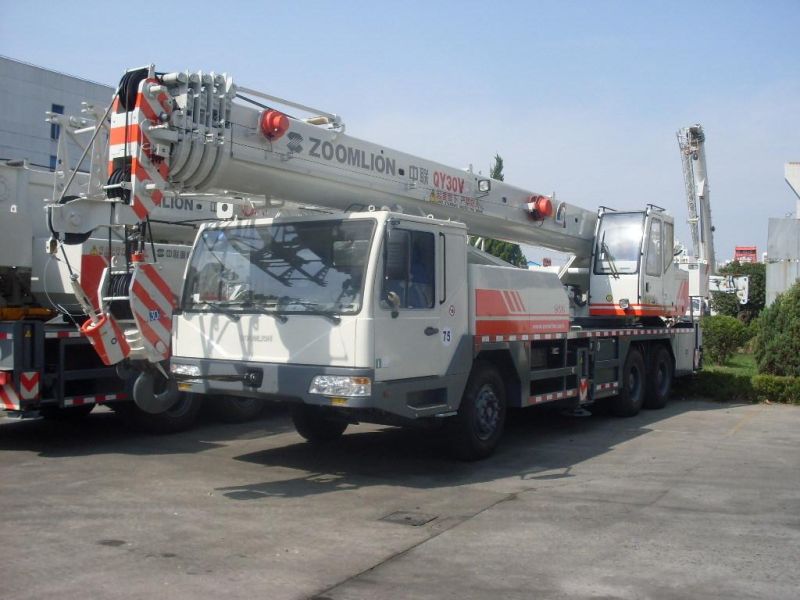

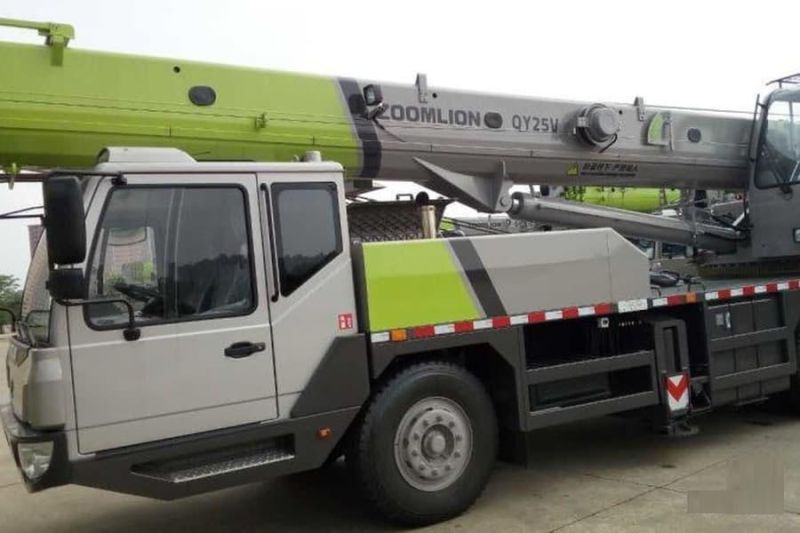

     Intermediately    extended:4.25 Tail    slewing radiusmm3265 Main    boom lengthm10.7    - 35.0 Boom    angle°-1    - 80 jib    lengthm8.0 Offset°0,15,30 Detailed Photos
