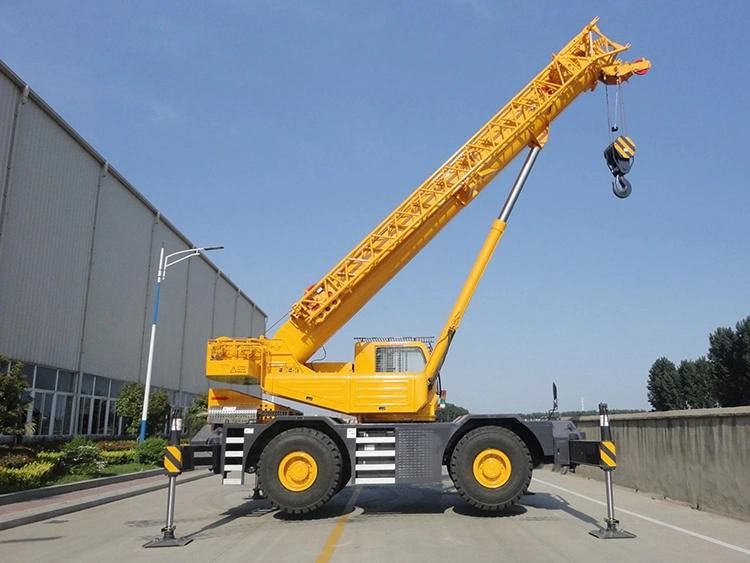

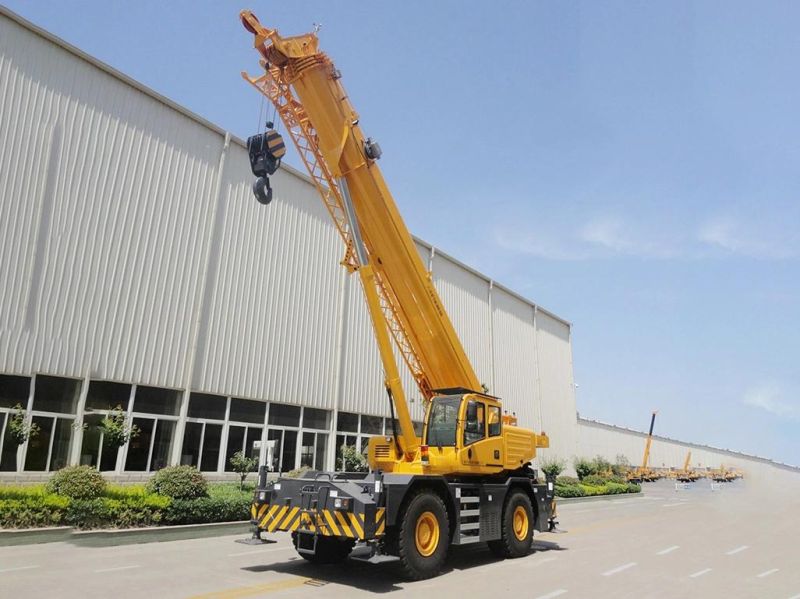

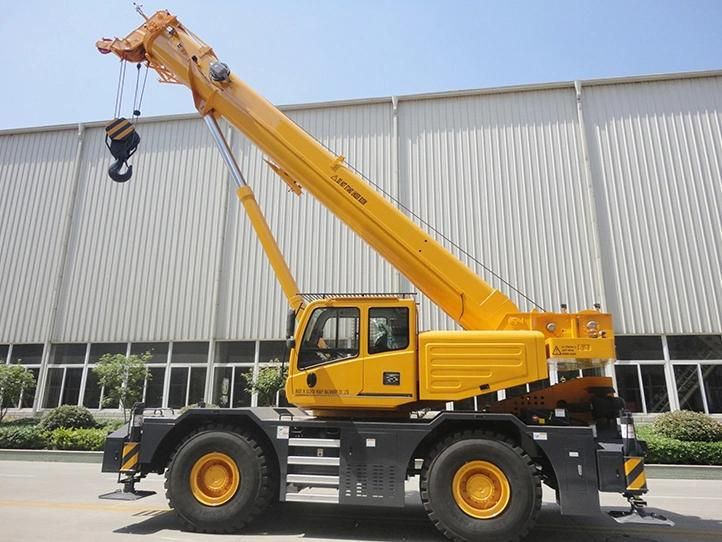

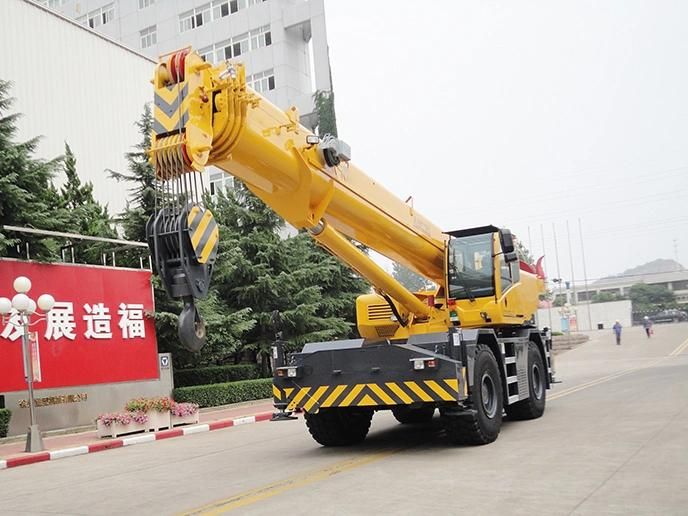

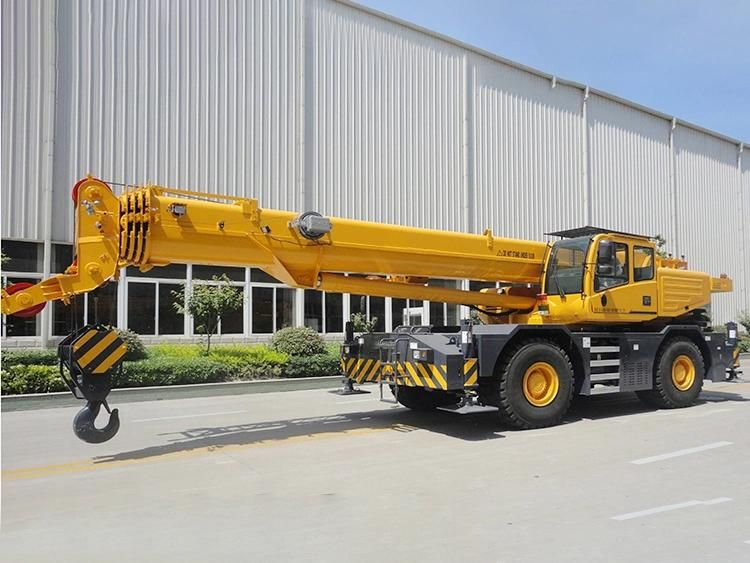

Project | Unit | Parameter |
Measurements Parameters | - | - |
Length of Entire Vehicle | (mm) | 11952 |
Width of Entire Vehicle | (mm) | 2980 |
Height of Entire Vehicle | (mm) | 3450 |
Wheel Base | (mm) | 3700 |
Wheel Track | (mm) | 2440 |
Weight Parameters | | |
Gross Vehicle Weight When Driving | (kg) | 30360 |
Axle Load | (kg) | (Front Axle)15130/(Rear Axle)15230 |
Kinetic Paremeter | | |
Engine Type | - | QSB6.7-C190 |
Engine Rated Power(kw/ | (kw/(r/min)) | 142 |
Engine Max Torque(N.m/ | (N.m/(r/min)) | 931 |
Driving Parameters | | |
Driving | | |
Max Travel Speed | (km/h) | 25 |
Min Travel Speed | (km/h) | 3 |
Swerve | | |
Min Turning Radius | (m) | 11.4 |
Head Min. Turning Diameter | (m) | - |
Max Gradeability | (%) | 55 |
Min. Ground Clearance of Machine | (mm) | 400 |
Approach Angle | (°) | 23 |
Departure Angle | (°) | 20 |
Braking Distance | (m) | 9 |
Fuel Consumption per 100kms | (L) | - |
Major Performance Parameters | | |
Max. Rated Lifting Capacity | (t) | 40 |
Min. Rated Range | (m) | 2.5 |
Max. Load Moment of Basic Jib | (kN·m) | 1445.5 |
Radius of Gyration of Turntable Tail | (mm) | 3885 |
Outrigger | | |
Longitudinal | (m) | 6.9 |
Horizontal | (m) | 6.9/5.8 |
Max. Lifting Height | | |
Basic Boom | (m) | 9.7 |
Longest Main Boom | (m) | 31.7 |
Longest Main Boom + Auxiliary Boom | (m) | 45.1 |
Boom Length of Crane | | |
Basic Boom | (m) | 10.1 |
Longest Main Boom | (m) | 32 |
Longest Main Boom + Auxiliary Boom | - | 47 |
Longest Main Boom + Auxiliary Boom + Extension | - | - |
Working Speed | | |
Max. Slewing Speed | (r/min) | - |
Lifting Speed | | 2.8 |
Main Hoisting Mechanism | (m/min) | 130(Unload) |
Auxiliary Hoisting Mechanism | (m/min) | 130(Unload) |
Stretching and Retracting Time of Crane Boom | | |
Full Stretching | (s) | 85 |
Full Retracting | - | 55 |
Luffing Time | | |
Full Travel Boom Lifting | (s) | 60 |
Full Travel Boom Lowering | (s) | 80 |
Outrigger Extension and Retract | | |
Horizontal | | |
Stretching at the Same Time | (s) | 25 |
Retracting at the Same Time | (s) | 15 |
Vertical | | |
Stretching at the Same Time | - | 30 |
Retracting at the Same Time | - | 20 |
