Wheeled Material Handling Equipment Knuckle Boom Grabbing Crane for Sale
Sinoway Industrial (Shanghai) Co., Ltd.- Certification:ISO9001, ISO14001
- Condition:New
- Operation Form:Cabin
- Maximum Lifting Height:15-20m
- Maximum Lifting Weight:<20t
- Working Radius:10.2 M
Base Info
- Model NO.:SWMH250K
- Max. Lifting Height:11.3 M
- Max. Travel Speed:15km,H
- Max. Hoisting Moment:300kn.M
- Warranty:One Year
- Operating Weight:16 Ton
- Transport Package:Nude
- Specification:ISO
- Trademark:Sinoway
- Origin:China
- HS Code:84314900
- Production Capacity:100 PCS , Year
Description
Basic Info.
Model NO. SWMH250K Max. Lifting Height 11.3 M Max. Travel Speed 15km/H Max. Hoisting Moment 300kn.M Warranty One Year Operating Weight 16 Ton Transport Package Nude Specification ISO Trademark Sinoway Origin China HS Code 84314900 Production Capacity 100 PCS / YearProduct Description
The main Feature of SWMH160K Material Handlers1-Dual engine ( Electric motor + Diesel engine) more environmental protection;
2-Electric operation has over-current and heat leakage protection device;
3-Utomatic identification of phase sequence to prevent reverse rotation of oil pump;
4-Hydraulic system power-off, oil self-locking protection device;
5-Multiple compound movements during operation to improve efficiency;
6-The hydraulic system is equipped with air-cooled radiator;
7-The gripper can rotate and change direction automatically 360 degrees;
8-When electric operation is carried out in the upper control room, there is a dual-purpose air conditioner for heating and cooling;
9- Hydraulic Cabin elevatied.

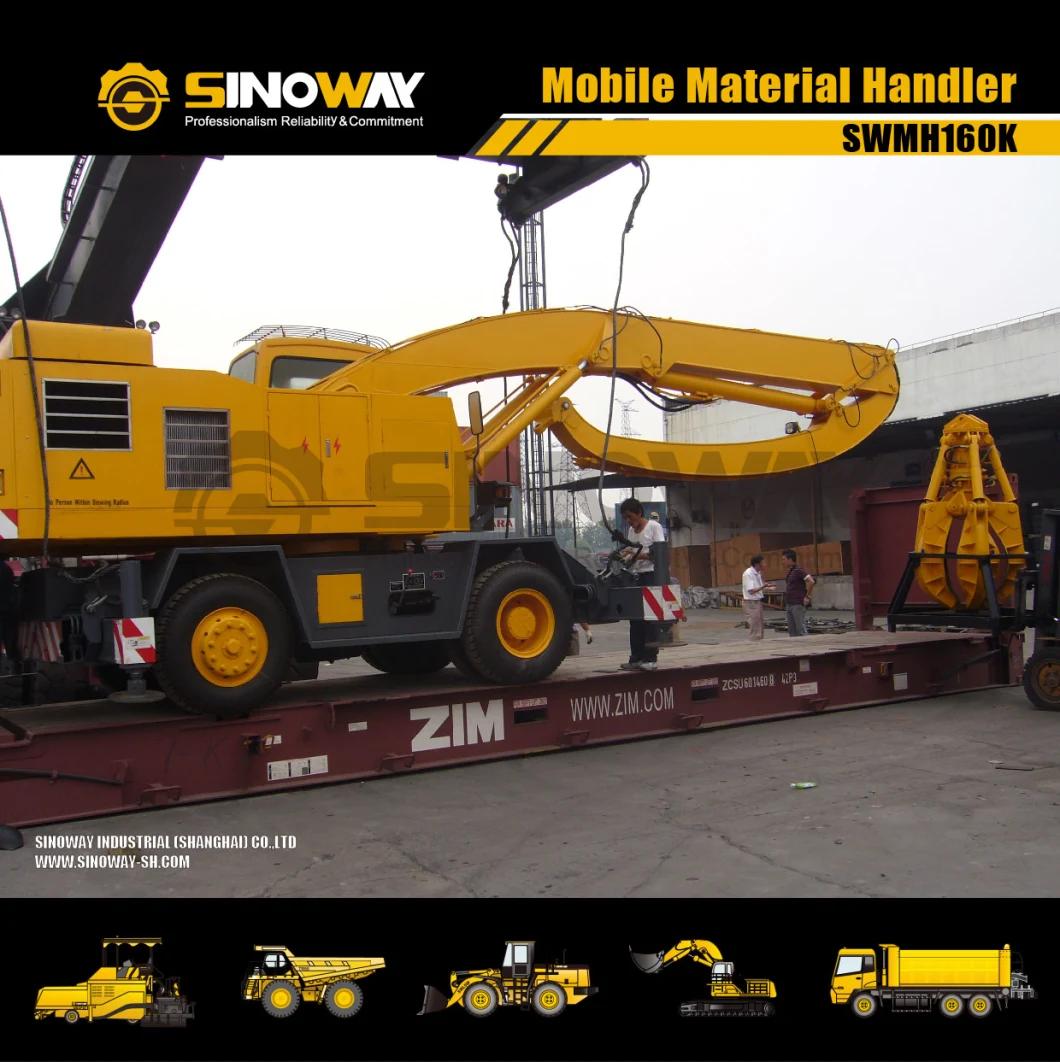

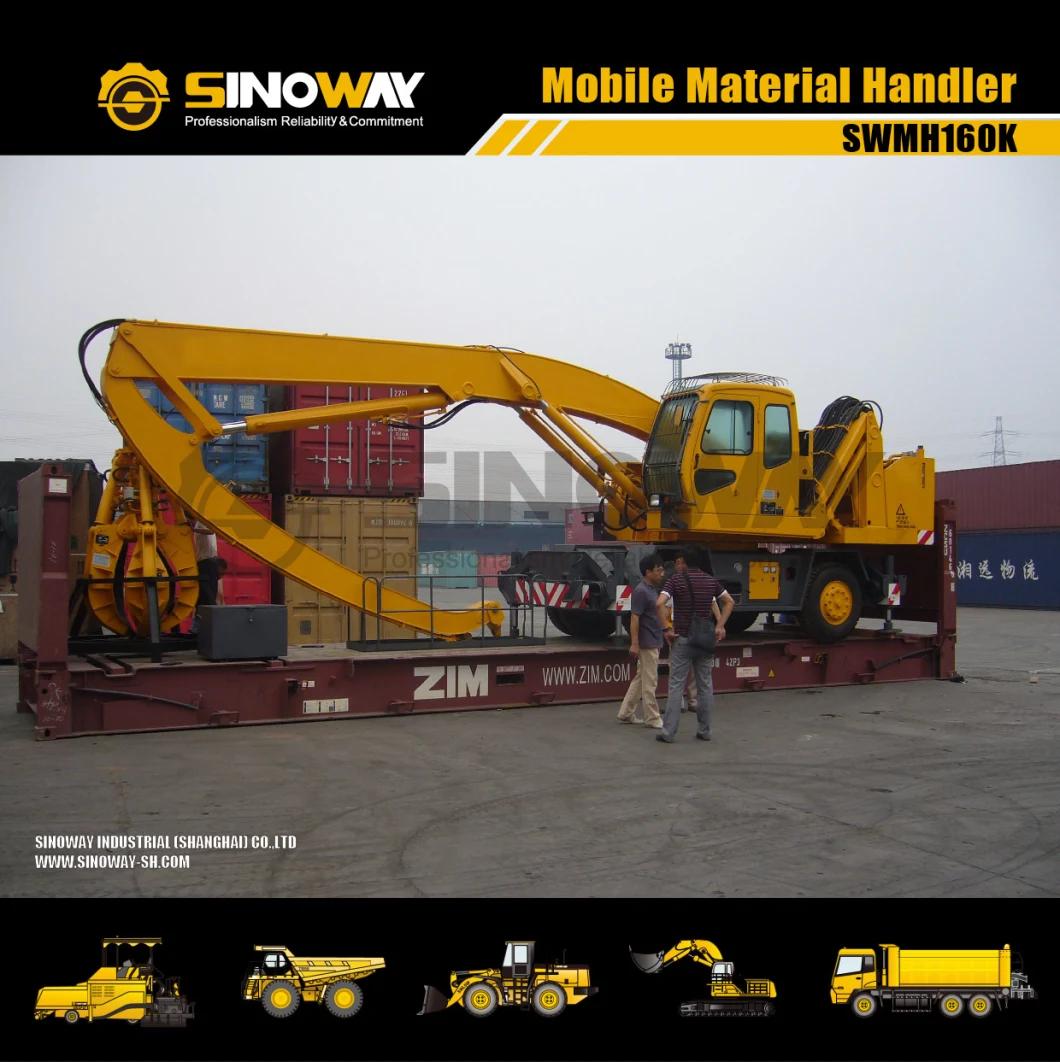

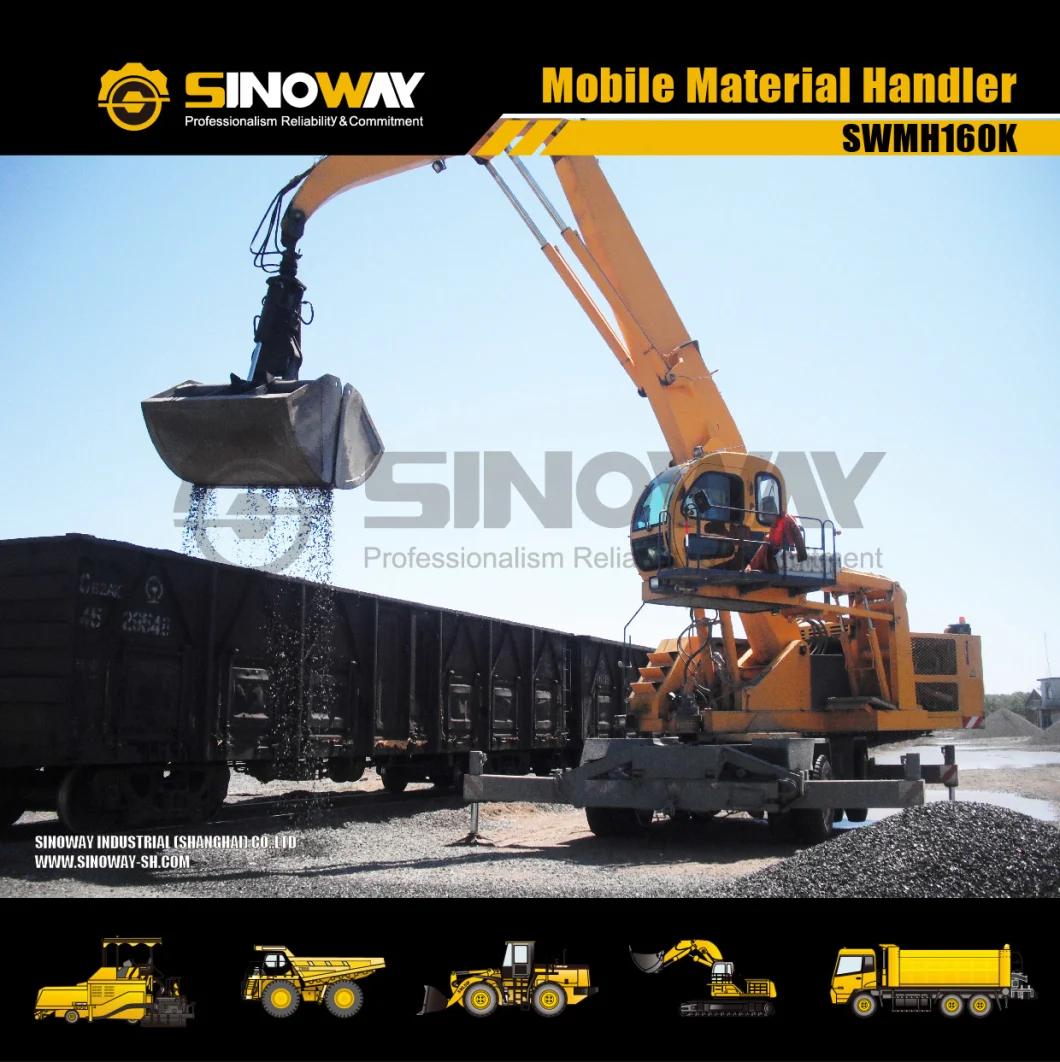

Product Show



Specifications
Materia Handler SWMH160K | |
Engine Power | |
Electrical motor | 75KW |
Max. swing speed | 5.5r/min |
Diesel engine | 105KW |
Max. swing speed | 6r/min |
Main Technical Specification | |
Max. pulling capacity | 10000kg |
Working radius @Max. pulling capacity | 3000mm |
Max. working radius | 11800mm |
Max. lifting capacity @ Max. working radius | 2500kg |
Maximum hoisting moment | 300kN.m |
Max. lifting hight | |
Basic boom | 9000mm |
Full boom | 14000mm |
Outrigger distance | |
Lengthways | 4600mm |
Transversal | 4400mm |
Axle | |
Front axle load | 7500Kg |
Rear axle load | 15500Kg |
Travelling System | |
Max. travelling speed | 15km/h |
Minimum turning radius | 13m |
Maximum gradability | 10% |
Minimum ground clearance | 250mm |
Approach angle | 15.0° |
Departure angle | 15.0° |
Breaking lengh | ≤6.5m |
Operating weight | 23000kg |
Dimension | |
Overall length | 11360mm |
Overall width | 2670mm |
Overall height | 3410mm |
Tread | |
Front wheel | 2350mm |
Rear wheel | 2060mm |
Wheel base | 2600mm |
Grab Parameter | |
Model | 1.0m³ clam grab |
Total mass | 1500kg |
Total height | 3123mm |
Total width | 1370mm |
Total length (Open) | 2589mm |
Total length (Close) | 1843mm |
Open cycle | 3~5s |
