• Model NO.：STC250
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Folding
• Transport Package：Nude
• Specification：25ton
• Origin：Hunan, China
• Production Capacity：50000units,Year

Basic Info.

Model NO. STC250 Shaft Number 3 Crane Jib Five-Arm Type Folding Transport Package Nude Specification 25ton Origin Hunan, China Production Capacity 50000units/Year

Product Description

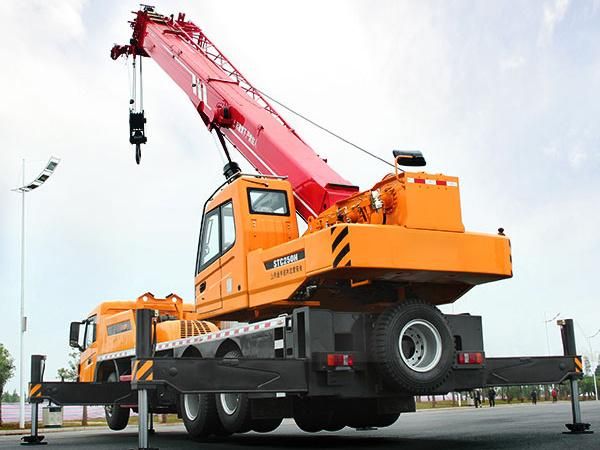

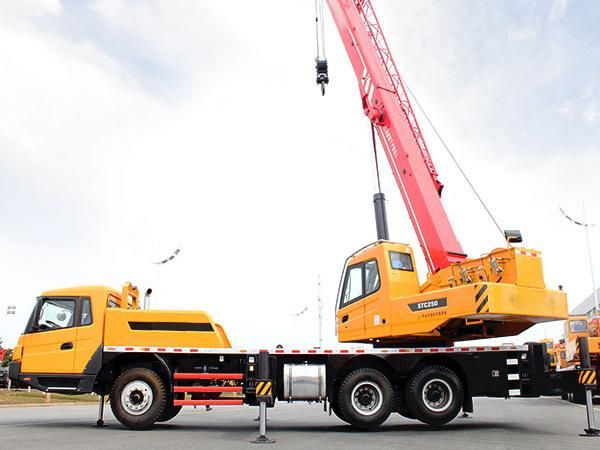

STC250 25ton Truck Crane

STC250 25 Ton Truck Mounted Crane Mobile Crane  Excellent and stable chassis performance /chassis system

Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance.

Engine has the multimode power output function, which reduces power consumption.

The use of tipping over early-warning technology provides high stability and safety of the overall operation.

 STC250 25 Ton Truck Mounted Crane Mobile Crane Highly efficient, stable, energy-saving and adjustable hydraulic system

Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility.

Unique steering buffer design is adopted to ensure stable braking operation.

STC250 25 Ton Truck Mounted Crane Mobile Crane Ultra long, super strong and highly sensitive load lifting capacity

Five-section boom of high strength steel structure and optimized U-shaped cross reduces weight significantly with higher safety rates.

Jib mounting angles are 0°, 15°and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.

STC250 25 Ton Truck Mounted Crane Mobile Crane Safe, stable, advanced and intelligent electric control system

Self-developed controller SYMC specially for engineering machinery is configured.

The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability.

Timely feedback of data information can achieve the monitoring of the overall working status in real-time.

The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.

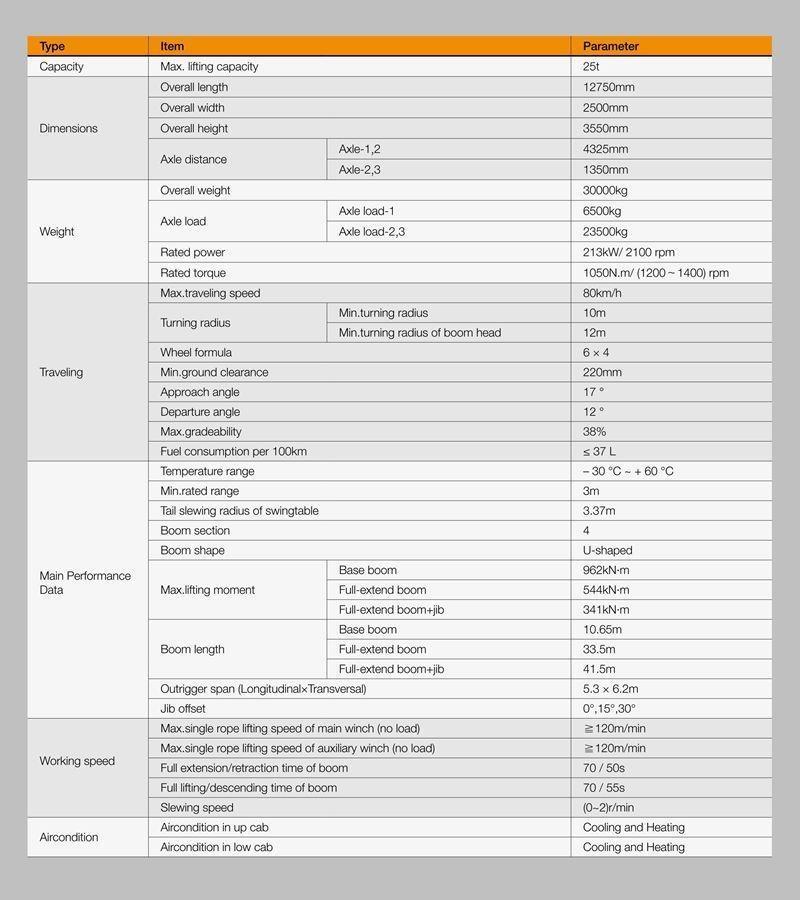

Parameters
