• Model NO.：SWOR1200
• Type：Straight Arm
• Engine Make：Cummins
• Travel Speed：33 Km,H
• Boom Length：12.4 M
• Boom Elevating Time：95 S
• Boom Extending Time：150 S
• Warranty：One Year
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314900
• Production Capacity：100 PCS , Year

Basic Info.

Model NO. SWOR1200 Type Straight Arm Engine Make Cummins Travel Speed 33 Km/H Boom Length 12.4 M Boom Elevating Time 95 S Boom Extending Time 150 S Warranty One Year Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314900 Production Capacity 100 PCS / Year

Product Description

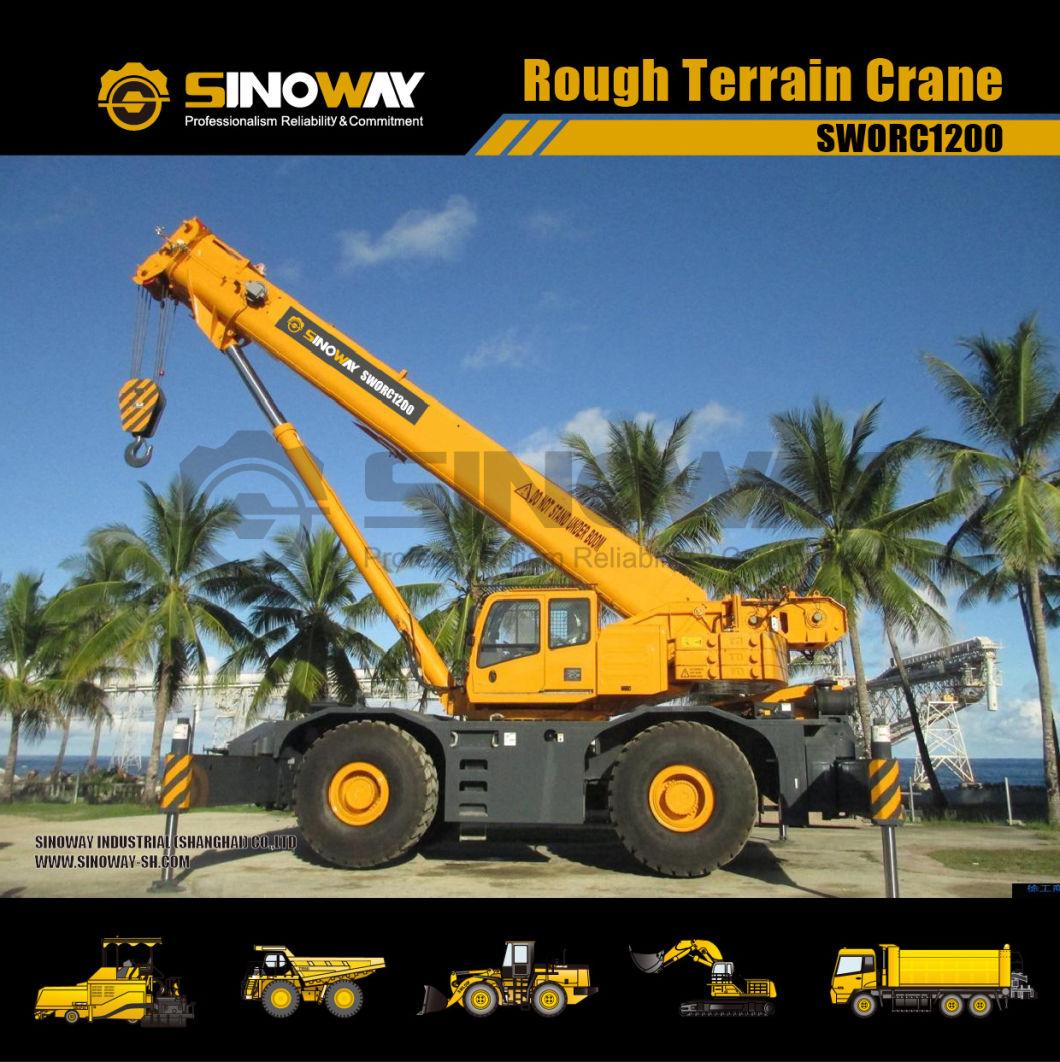

SINOWAY SWORC1200 Off Road Cranes Main Features

Cummins electronically controlled engine  ZF automatic transmission, KESSLER axles are matched optimally, contributing to distinguished power performance; It has good applicability and reliability; CAN bus control system, fault diagnostic system and warning devices ensure safe and efficient operation.

Two driving modes: forward and reverse driving function contributes to fast transferring within a site or from a site to another; four electro-proportional steering modes combined with min. turning radius of 7.5m offers unmatched maneuver ability in a confined space. Specialized off-road tires and super power system ensure favorable off-road capacity, suitable for applications in various adverse sites.

Three operating modes,superior performance of operation on outriggers, which is not less than that for truck crane in a stationary site; unique performance of operation on tires makes it easy to complete the job what truck crane could not finish when it is difficult to deploy outriggers in a confined site; powerful pick and carry capacity makes fast operation of lifting and transferring load. It is suitable for lifting and transferring operation in oil patch, storage, goods yard, dock and logistic base, etc.

Automatic low pressure brake technology: with full hydraulic double circuit disc brake fitted, the brake is engaged automatically when the pressure in braking system is lower than the setting, thus driving safety is insured.

Swing, rigidly lockable hydraulic suspension technology: the shock absorption function of rear suspension may be performed through the swing mechanism and suspension cylinder when driving on  roads, consequently road shock is buffered and travel smoothness is improved; the rear suspension cylinder may be locked to rigid state so as to meet the requirement for travel with a load suspended;

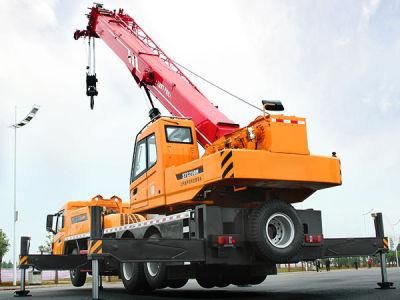

Product Show



Specifications

Engine
Engine make	CUMMINS
Type	Six-cylinder,water-cooled,turbocharged,electronic injection
Rated power	224KW
Rated speed	2100rpm
Lifting Specification
Max. rated lifting capacity	120000kg
Min. raged working radius	2.5m
Slewing radius at turntable tail (at counterweight)	4930mm
Max. load moment
Base boom max. load moment	3500KN•m
Fully extended boom load moment	1840KN•m
Boom Length
Base boom	12400mm
Fully extended boom	48000mm
Fully extended boom+jib	68600mm
Lifting height
Base boom	13200mm
Fully extended boom	48800mm
Fully extended boom+jib	67900mm
Working Speed
Boom raising time	80s
Boom extending time	150s
Max. slewing speed	2.0 rpm
Outrigger beam extending/retracting time	40/30s
Outrigger jack extending/retracing time	55/40s
Hoist speed
Main winch max. speed	135m/min
Aux. winch max. speed	135m/min
Outrigger span
Longitudinal	8400mm
Lateral(fully/half extended)	8200/6000mm
Traveling Specification
Max. traveling speed	25km/h
Drive type	4×2/4×4
Grade ability	60%
Min. turning radius	7.5m(4×4)/12.0(4×2)
Noise at seated position	80dB(A)
Braking distance (at 24 km/h)	9m
Tyre	33.25R29
Mass Specification
Operating weight	79500kg
Axle load 1st	41560kg
Axle load 2nd	37940kg
Dimensions
Overall size	14900×3500×3990mm
Wheel base	4645mm
Tread	2640mm
Overhang(F/R)	2205/2592mm
Extension(F/R)	5458/0mm
Min. ground clearance	568mm
Approaching/departure angle	21.1°/17.3°
Jib offset angle	0°, 20°, 40°
Braking system
Service brake	Double-circuit full-hydraulic disc brake
Parking brake	Spring-loaded brake,hydraulic-released independent disc brake

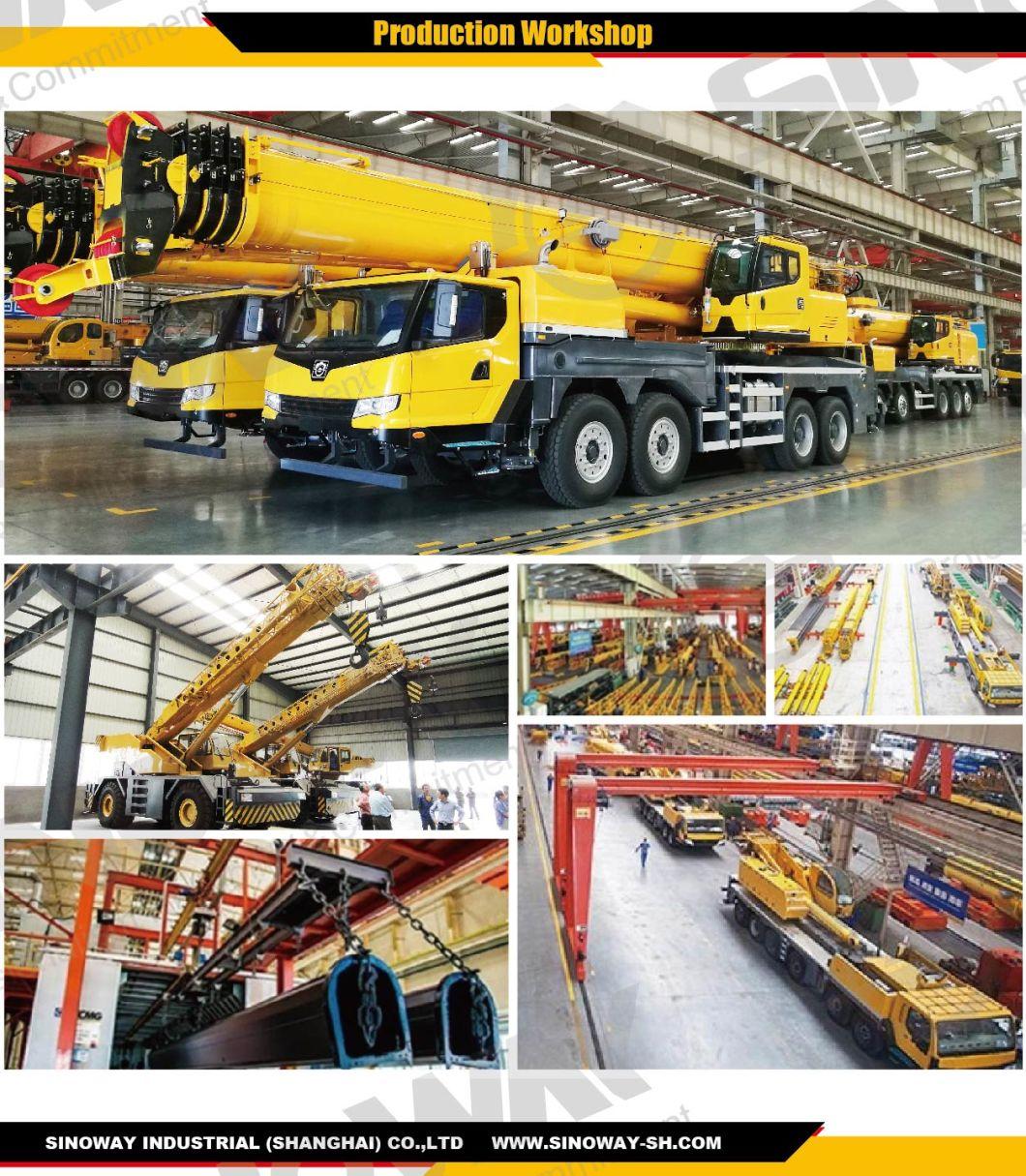

Assembly Line
