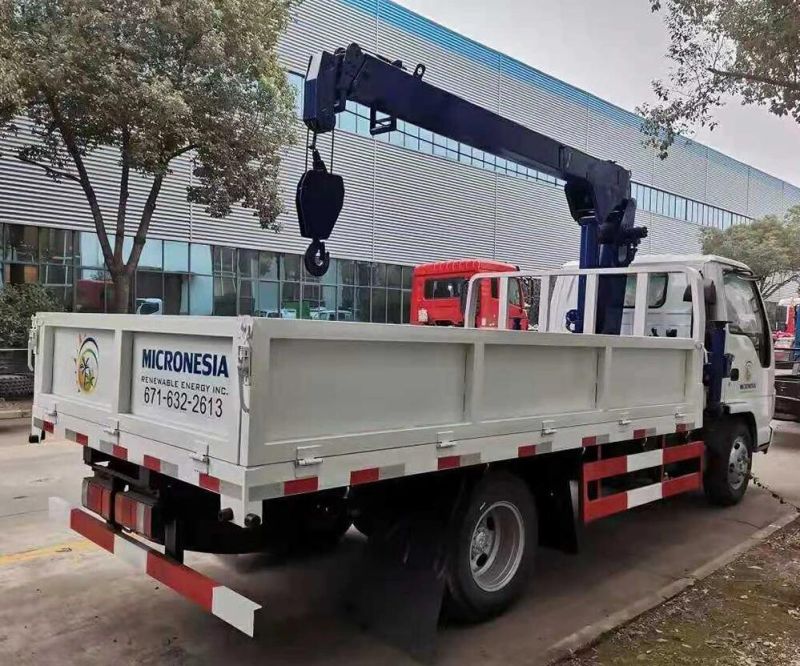

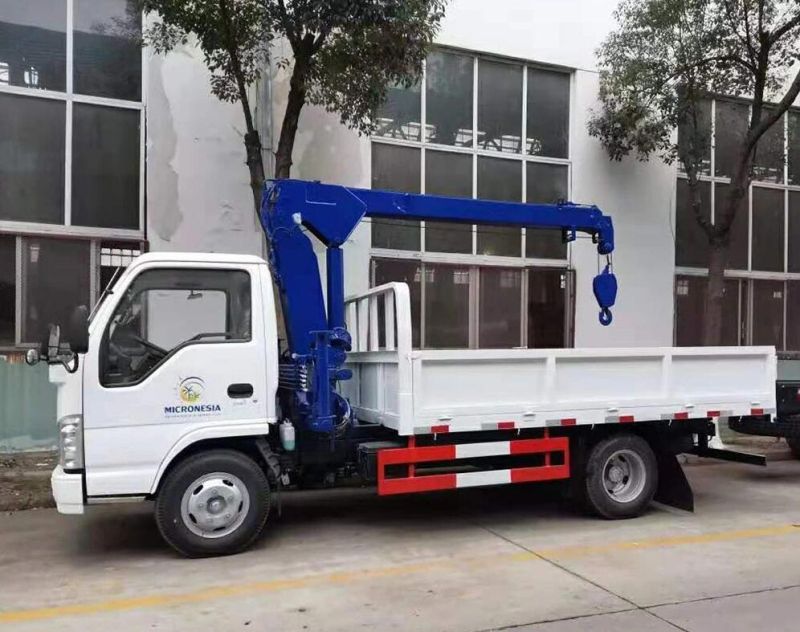

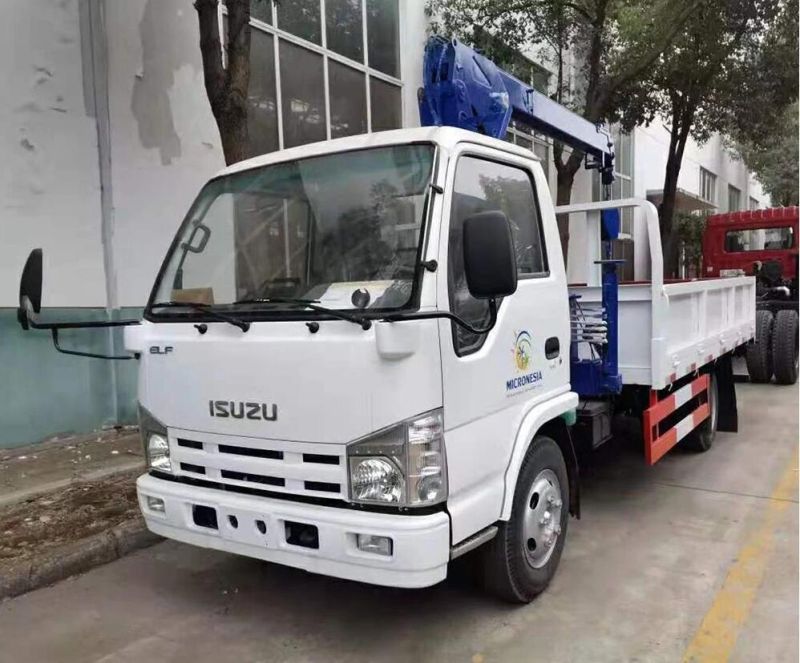

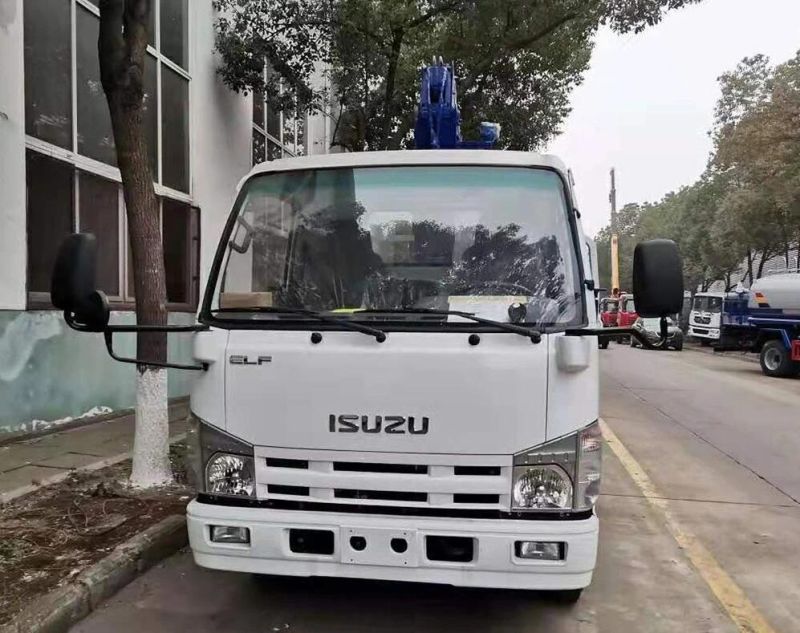

Isuzu Telescopic Boom Truck Crane Truck Mounted Crane 3 Ton 5ton Truck with Crane
HUBEI RUILI AUTOMOBILE CO., LTD.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：<10m
- Maximum Lifting Weight：5-7t
- Shaft Number：2
- Crane Jib：Three-Arm
Base Info
- Type：Straight Arm
- Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
- Driving Type：4*2
- Wheel Base：2765mm
- Tire：6.50-16 10pr,6.50r16 10pr
- Cargo Material：Q235 Carbon Steel
- Warranty：1 Year
- Cargo Thickness：Side 1.5mm, Bottom 2.5mm
- Logo：as Per Customer′s Request
- Transport Package：Naked, Waxed, Bulk Ship, RO-RO
- Specification：5280X1790X2270
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
Plate spring piece number8/6+5 Approach/departure angle 24/16 Front/real overhang 1015/1500 Tire size 6.50-16 10PR,6.50R16 10PR Tire qty 6
Upper Equipment
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Upper Equipment
| Items | Unit | SPS8000A | SPS8001B |
| Rated lifting weight | Kg | 3200 | 3200 |
| rated lifting moment | T.m | 8 | 8 |
| Max outreach | m | 7.8 | 10.2 |
| Max lifting height | m | 9.8 | 12.5 |
| Length of the basic boom | m | 3.4 | 3.5 |
| Length of the fully extended boom | m | 8 | 10.4 |
| Numbers of the boom | / | 3 | 4 |
| Profile method of the basic boom | / | Hexagon | Hexagon |
| Range of the boom lifting angle | . | 0-75 | 0-75 |
| Slewing angle | Full circle | Full circle | |
| Outrigger span | mm | 4400 | 4400 |
| Recommended volume for the system | L/min | 35 | 35 |
| Recommended oil tank volume | L | 100 | 100 |
| Weight of the crane | Kg | 1200 | 1300 |
| Operating pressure | Mpa | 23/25 | 23/26 |
| Operating mode | Floor operated | Floor operated |
