• Model NO.：WIR
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Installation：Assembled
• Transport Package：Standard Export Packaging
• Specification：As per requirements
• Trademark：Nucleon
• Origin：Henan, China
• HS Code：82059000
• Production Capacity：10000 Sets Per Year

Basic Info.

Model NO. WIR Tower Crane Type Under Slewing Cranes Sling Type Wire Rope Power Source Electric Moving Type Wheel Installation Assembled Transport Package Standard Export Packaging Specification As per requirements Trademark Nucleon Origin Henan, China HS Code 82059000 Production Capacity 10000 Sets Per Year

Product Description

Nucleon Wire Rope Electric HoistBrief Introduction:

ND series steel wire rope electric hoist is appliance to the newest European FEM designing standard with advanced concept, beautiful appearance. The drive unit adopts demestic advanced point line meshing gear structure making the machine has compact reasonable structure. The operation is simple, convenient and working is safety and efficient and meet the low noise,energy conservation and environment protection requirments.

This series of electric hoist applied 11patent technologises.This series of products are designed with frequency control of motor speed, small impact and it can realizr accurate positioning. Equipped with intelligent monitoring recorder which is similar to the "black box" of plane,it can uninterruptedly record crane working status information and prevent false operation.The machine use maintenance free design with small vulnerability and convenient maintenance.The overal technical level has reached the advanced level of similar products home and abroad.


Components Descriptions:

1. 3-in-1 hard surface dual-speed lifting drive unit.
2. 3-in-1 hard surface trolley with frequency conversion drive unit
3. Automatic wear detection brake
4. 4-stage adjustable rotation lifting limit switch

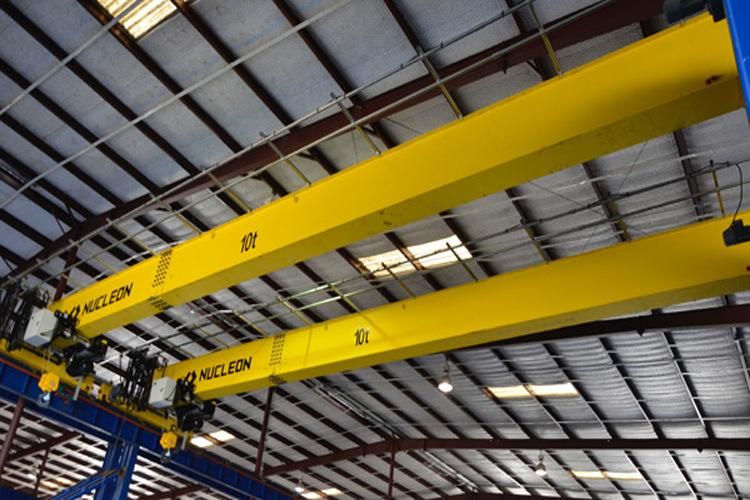

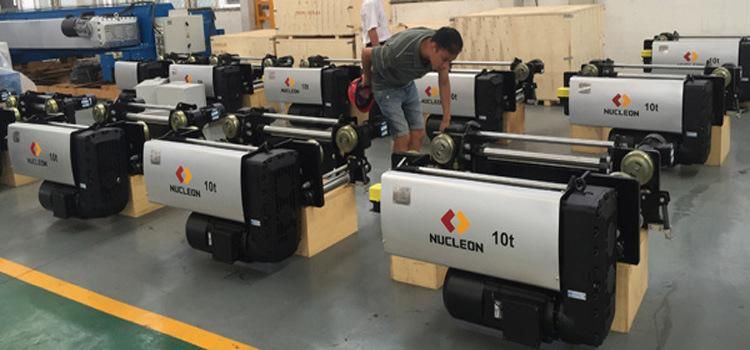

Samples Images:







Specifications Chart:


Capacity (t)	Work Class	Height (m)	Lift Speed (m/min)	Travel Speed (m/min)	Beam Width (mm)	Max Wheel Load (KN)	Weight (kg)
1.6	M4-M6	<15	1.6/10	2-20	200-300	6.20	335
2.5	M4-M6	<15	0.8/5.0	2-20	200-350	9.20	350
3.2	M4-M6	<15	0.8/5.0	2-20	250-350	11.60	370
6.3	M4-M6	<15	0.8/5.0	2-20	300-450	22.10	450
8	M4-M6	<15	0.8/5.0	2-20	300-450	28.20	610
10	M4-M6	<15	0.8/5.0	2-20	300-450	34.80	640
12.5	M4-M6	<15	0.66/4.0	2-20	300-500	43.40	700

What are important to choose a right hoist:

1. Hoist Capacity
2. Lifting Height
3. Hoist Application and Work Class
4. Hoist Traveling Length
5. Control Method: Pendant or Remote Control?
6. Local Power Supply: AC 240/380/400/415/440v 50/60hz
7. Quantity
8. Desitination Port

Welcome to Visit Our Factory before Making up Your Mind!
