• Model NO.：Xgc100
• Fixed Jib Length：13~25m
• Engine Power：206,183kw
• Main Boom Length：19~73m
• Transport Package：Roro,Nude,Bulk,Container
• Specification：10500*3000*3350mm
• Trademark：TOP BRAND
• Origin：China
• HS Code：84295212
• Production Capacity：100units,Month

Basic Info.

Model NO. Xgc100 Fixed Jib Length 13~25m Engine Power 206/183kw Main Boom Length 19~73m Transport Package Roro/Nude/Bulk/Container Specification 10500*3000*3350mm Trademark TOP BRAND Origin China HS Code 84295212 Production Capacity 100units/Month

Product Description

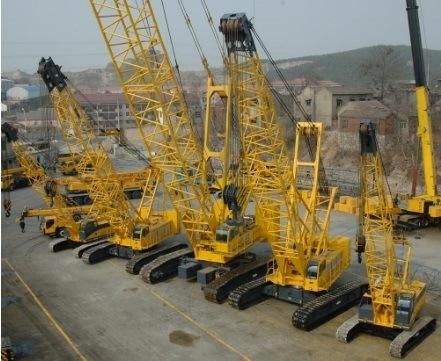

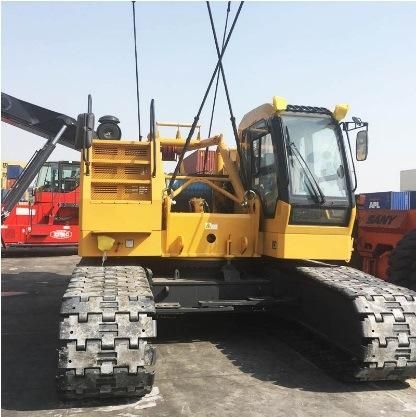

Xgc100 Factory Price 100Ton Mobile Crawler Crane

XGC100 Hydraulic Crawler Crane is a new generation product based on years of product development and application experience. According to the needs of the market, XGC100 hydraulic crawler cranes are characterized by inheriting the advantages of old products and paying more attention to the performance, disassembly and transportation. To enhance the comfort of the operation; to a new look, industry-leading lifting performance, improve the self-assembly and disassembly functions, and many other outstanding advantages, to bring customers a new experience. Products can be used for farmland capital construction and water conservancy construction, petrochemical power engineering construction, steel, nonferrous metals, coal and other resources exploration and construction, construction, municipal construction, port construction and other fields.


Item	Unit	Parameter
Parameter item	-	XGC100
Performance parameters
Main boon rated liad	(t)	100
Fixed jib rated lifting weight	(t)	15.6
Luffing jib maximum rated lifting weight	(t)	-
Max Lifting Moment	(t.m)	575
Tower jib maximum lifting weight	(t)	-
Working condition of single arm end pulley maximum rated lifting weight	(t)	13
	(t)	-
Dimension parameter
Main boom length	(m)	19~73
The main luffing Angle	(°)	30~81
Fixed jib length	(m)	13~25
Tower jib length	(m)	-
Operating dimension(L*W*H)	(m)	10.5×3.0×3.35
Fixed jib installation Angle	(°)	15,30
Special deputy arm length	(m)	-
Speed parameter
The biggest single rope hoist speed	(m/min)	110/120
The boom luffer maximum speed of single rope	(m/min)	34/46
Deputy arm luffing mechanism's largest single rope speed	(m/min)	-
Maximum turning speed	(r/min)	1.4
Engine
Model	-	SC8DK280Q3/QSC
power	(kW)	206/183
Emission	-	EuropeIII
mass parameter
Operating weight	(t)	104.5
Cargo status sheet maximum quality	(t)	32.5
