Qd Double Girder Beam Overhead Crane

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Main Girder Form：Double Girder
  • Type：Beam, Double Beam Crane
  • Rated Loading Capacity：5-50t
  • Lift Height：14m

Base Info

  • Model NO.：QD
  • After-Sales Service Provided：Engineers Available to Service
  • Operate Type：Cabin Control
  • Power：380V,50Hz,3p
  • Work Duty：A6 (Heavy Duty)
  • Travel Length of Crane Travel：61m
  • Application：Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage
  • Sling Type：Wire Rope
  • Power Source：Electric
  • Moving Type：Orbital
  • Installation：Assembled
  • Transport Package：Suitable for Sea Transportation
  • Specification：ISO9001 CE
  • Trademark：Raytone Machinery
  • Origin：Shandong, China
  • Production Capacity：50 Set Per Month

Description

QD double beam overhead craneLifting capacity(SWL)50T40TSpan 15.15mLifting height 14mFEM Grade/ISO A6(M6)Control wayWireless remotePower380V/415V 50HZ 3Phase Lifting system ElectronicsSchneider Main LiftingAux liftingLifting speed4.8m/min6m/minMotorYZR280M-10/55KWYZR280S-10/42KWReducerZQ850ZQ850BrakeYWZ4-400/90YWZ4-400/90    Traveling system  Crane travelingTrolley travelingTraveling speed2-50m/min2~20m/minMotorYZRE160L-4/11YZR160M1-6/5.5KWReducerYZRE160L-4/11ZSC600BrakeYWZ4-200/25YWZ4-200/25Wheel groupΦ600*4Φ500*4

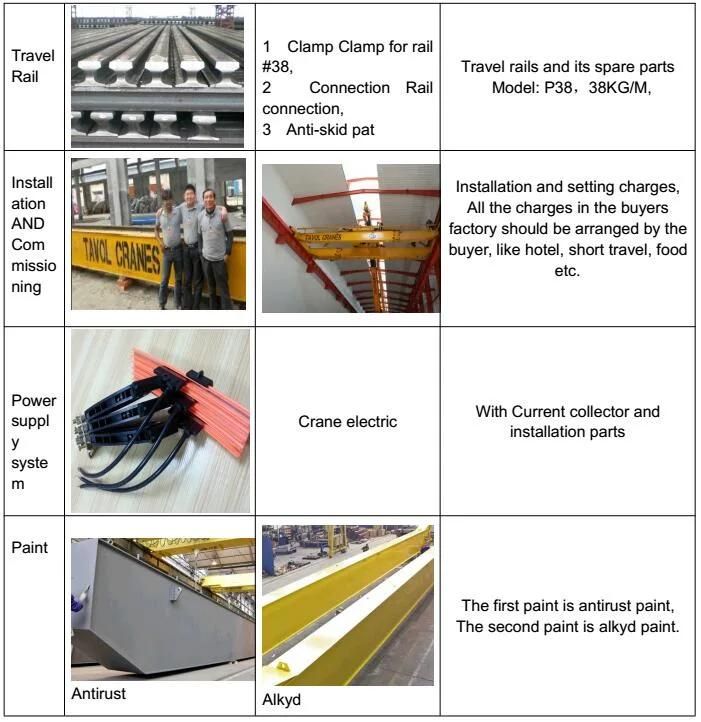

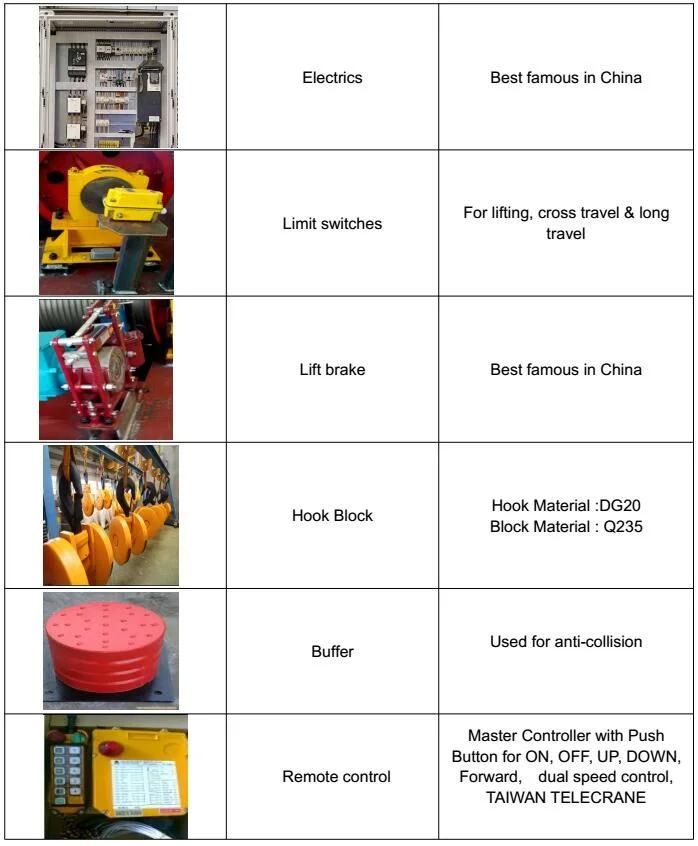

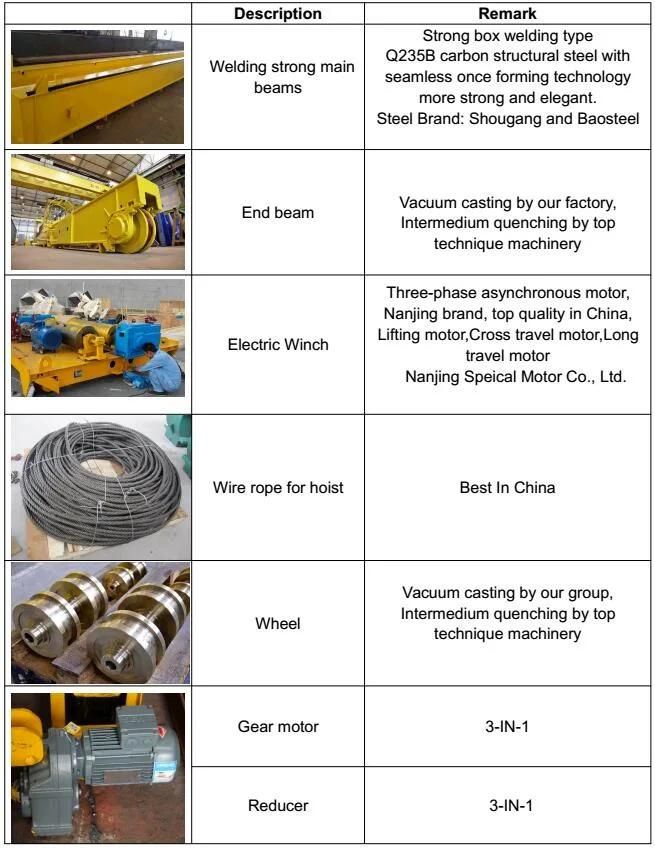

Product parts introduction
Qd Double Girder Beam Overhead CraneQd Double Girder Beam Overhead CraneQd Double Girder Beam Overhead Crane

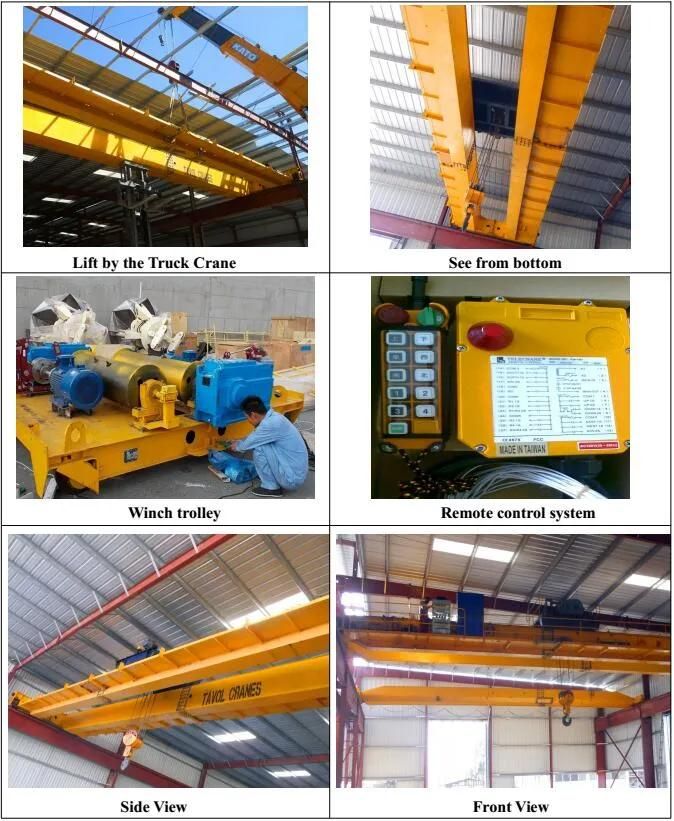

Reference pictures
Qd Double Girder Beam Overhead Crane

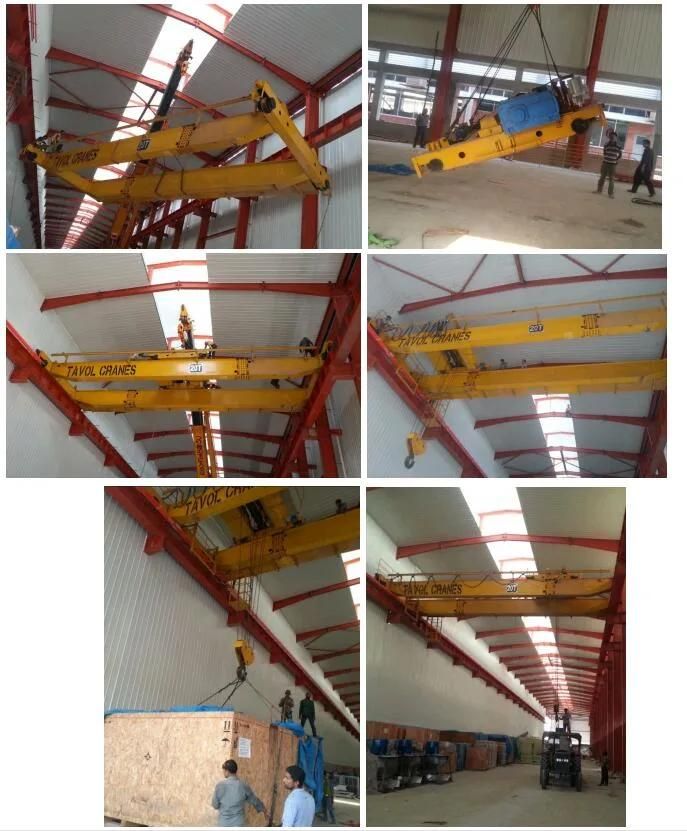

Installation pictures
Qd Double Girder Beam Overhead Crane
