XCMG Official 200ton Hydraulic Crawler Cranes Xgc200
Xuzhou Construction Machinery Group Import & Export Co., Ltd.- Certification：ISO9001
- Condition：New
- Warranty：1 Year
- Rated Power of Engine：243kw
- Width of Track Shoe：120m,Min
- Rated Lifting Moment：1043.8t.M
Base Info
- Model NO.：XGC200
- Transport Package：Comply with Export Packaging Requirements
- Trademark：XCMG
- Origin：Jiangsu China
- HS Code：87059091
- Production Capacity：10000,Year
Description
Basic Info.
Model NO. XGC200 Transport Package Comply with Export Packaging Requirements Trademark XCMG Origin Jiangsu China HS Code 87059091 Production Capacity 10000/YearProduct Description
XCMG Official 200ton Hydraulic Crawler Cranes Xgc200
XGC200 is a new generation crawler crane which is independently developed by XCMG. It adheres to XCMG design concept of "safety, reliability, environment protection, advance, emphasize detailed structure and represent humanistic thought. Three working conditions are equipped for this crane model, including boom working condition, fixed jib working condition and luffing jib working condition, with strong lifting capacity. The max rated lifting capacity/radius in boom working condition reaches 200t/5m, while the max lifting capacity for luffing jib and fixed jib are 50t and 33.5t respectively, the max load moment is 1043.8tm.

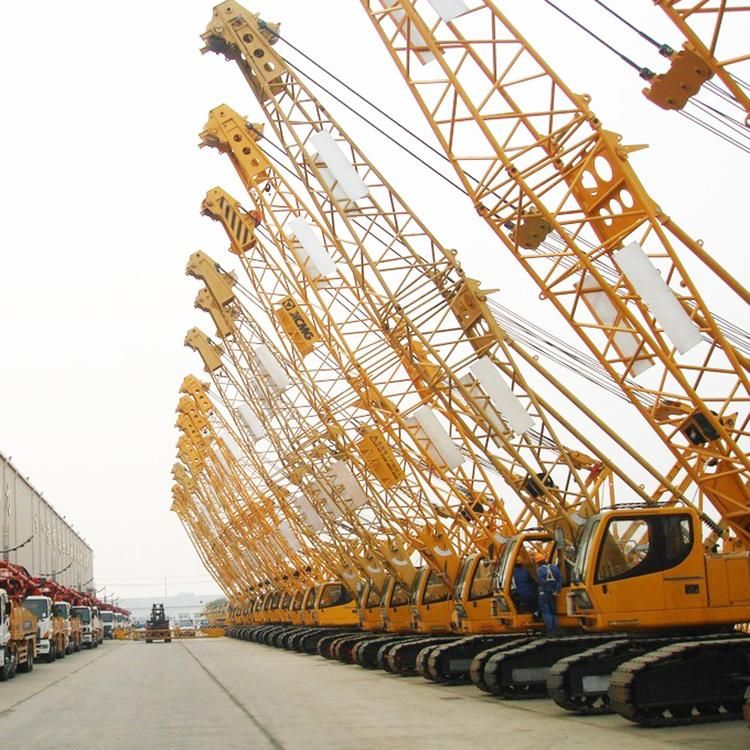

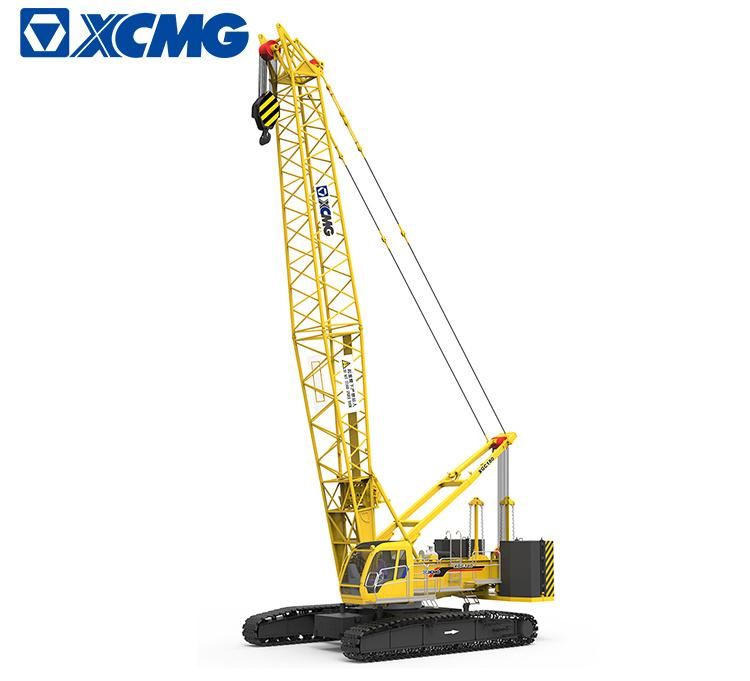

[Product Picture]
| Parameter Item | Unit | Parameter value |
| Operation performance parameter | * | |
| Max. rated lifting capacity for boom | (t) | 200 |
| Max. rated lifting capacity for fixed jib | (t) | 33.5 |
| Max. rated lifting capacity for luffing jib | (t) | 50 |
| Max. load moment | (t.m) | 1043.8 |
| Max. rated lifting capacity for tower jib | (t) | 50 |
| Boom length | (m) | 19~82 |
| Boom luffing angle | (°) | 30~83 |
| Fixed jib length | (m) | 13~31 |
| Tower jib length | (m) | 20~59 |
| Max. dimension of single unit in transport state (L×W×H) | (m) | 9.58×3.0×3.3 |
| Fixed jib offset angle | (°) | 15,30 |
| Max. single line speed for hoist mechanism | (m/min) | 120 |
| Max. single line speed for boom luffing mechanism | (m/min) | 2×34 |
| Max. single line speed for jib luffing mechanism | (m/min) | 41.6 |
| Max. slewing speed | (m/min) | 1.5 |
| Max. travel speed | (m/min) | 1.3 |
| Grade ability | (%) | 30 |
| Mean ground pressure | (MPa) | 0.112 |
| Max. single line speed for tower jib luffing mechanism | (m/min) | 41.6 |
| Model | SC9D | |
| Engine power | (kW) | 243 |
| Emission | National III | |
| Overall crane mass | (t) | 176(main hook, all counterweights, 19m boom) |
| Max. mass of the single unit in transport state | (t) | 30 |
