• Model NO.：QY16G. 5
• Type：Truck Crane
• Dead Weight in Travel State：24000kg
• Max.Total Rated Lifting Load：16t
• Transport Package：Comply with Export Packaging Requirements
• Specification：12210*2500*3250mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：10000,Year

Basic Info.

Model NO. QY16G. 5 Type Truck Crane Dead Weight in Travel State 24000kg Max.Total Rated Lifting Load 16t Transport Package Comply with Export Packaging Requirements Specification 12210*2500*3250mm Trademark XCMG Origin Xuzhou, Jiangsu, China HS Code 87059091 Production Capacity 10000/Year

Product Description

XCMG Official Manufacturer Qy16g.5 16ton Mini Hydraulic Truck Crane

More excellent performance
• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
More reliable quality
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Easier to operate
• The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having good slight mobility.
• Optimize the control levers, which is easier to operate.
• The cab adopts orthodrome front windscreen, having wider operating views.
Easier to maintain
• The optimizing design of the pipeline traces makes the layout more scientific and reasonable, greatly reducing the dismantling and installing time of the pipelines and the maintenance expense.
• Completely upgrade the electrical system. Adopt anti-creep connector clips, greatly prolonging the service life of the parts.
• Adopt K series rope anti-disorder technique, improving the lifting efficiency, reducing the labor intensity, and prolonging the service life of the steel rope.
• The telescoping steel wire rope oriented and protective device avoids the steel wire rope out of the track and broken.
• Fully covered walking plate supplies a platform for the maintenance, and effectively protects the parts of the machine.
More energy-efficient and environmental friendly
• Adopt double industrial automation control engine, featuring strong power and energy efficiency.
• Under the economical mode, it can meet the engine power requirement of the normal lifting work. Under the high power mode, it can meet the requirement of the high challenge and high efficient lifting work.
• Adopt the high power radiator, avoiding the system from bad cooling, solving the problem of oil overheating, and prolonging the service life of the hydraulic oil.
• Adopt the advanced matching technique, which makes the design more scientific. It can reduce the consumption of the mechanism, prolong the service life of the machine, and has high residual value.

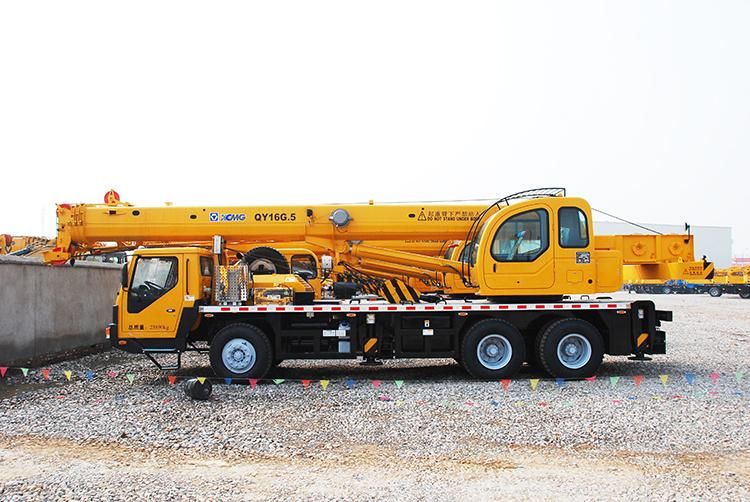

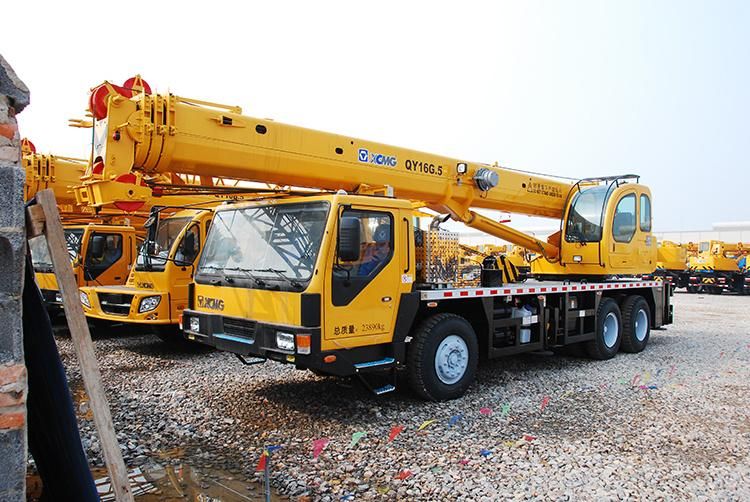

[Product Picture]




[Product Parameter]

Dimensions	Unit	QY16G.5
Overall  length	mm	12110/12210
Overall  width	mm	2500
Overall  height	mm	3250
Weight
Dead  weight in travel state	kg	24000
Front axle load	kg	6900
Rear axle load	kg	16900
Power
Engine model		SC8DK230Q3
Engine rated output	kw/(r/min)	170/2200
Travel
Max.travel speed	km/h	70
Min. tuming diameter	m	20
Min. ground dearance	mm	275
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	33
Fuel consumption of 100km	l	≈35
Lifting performance
Max. total rated lifting load	t	16
Min. rated working radius	m	3
Tuming radius at swing tadble tail	mm	3240
Max. load moment of base boom	kN.m	720
Outrigger longitudinal distance span	m	4.6
Outrigger lateral distance span	m	5.4
Lifting height of base boom	m	9.8
Lifting height of longest boom	m	31
Lifting height of longest boom+ jib	m	31+8.15
	°	0,15
Working speed
Boom elevating time	S	50
Boom full elevating time	S	80
Max. slewing speed	r/min	2.5
Main winch with no load(single line)	m/min	125
Auxlary winch with no load(single line)	m/min	125

[Company Information]


Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving  machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.  Our other businesses include finance, leasing, and remanufacturing.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet a variety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of a large deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides a basis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.






FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
