Diameter 1000mm Circular Electro Lifting Magnet for Scraps
Yueyang Shengang Lifting Electromagnet Co., Ltd.- Certification：ISO9001, BV
- Condition：New
- Operation Form：Remote Control
- Maximum Lifting Height：15-20m
- Maximum Lifting Weight：20-50t
- Main Girder Form：Double Girder
Base Info
- Model NO.：MW5-110L,1
- Type：Beam
- Shape：Circular,Round
- Rated Voltage：220V
- Duty Cycle：60%
- Electric Current：35A
- Cold-State Power：7.7kw
- Weight：1350kg
- Lifting Capacity for Cast Iron：1000,800kg
- Lifting Capacity for Steel Ball：6500kg
- Lifting Capacity for Steel Scrap：450,400kg

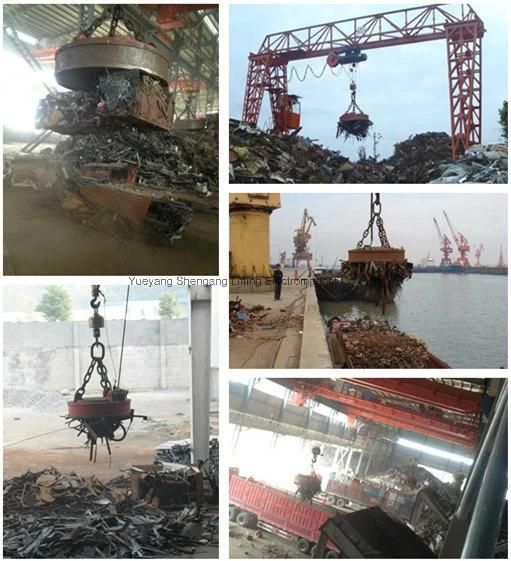

- Application：for Transporting Steel Scraps,Irons,Balls.
- Transport Package：Standard Export Package
- Specification：ISO9001: 2008
- Trademark：SHENGANG MAGNET
- Origin：China
- HS Code：85059010
- Production Capacity：100 Sets Per Month
Description
ModelElectric current (A) Cold-state power (kw) lifting capacity (kg) cold/hot state Mass (kg) Overall dimension (mm) steel ball cast iron steel scrap A B C D E MW5-70L/1 15 3.3 2500 380/200 120/100 490 700 800 160 90 30 MW5-80L/1 18 3.96 3000 480/250 150/300 620 800 800 160 90 30 MW5-90L/1 26.6 5.9 4500 650/440 250/200 800 900 1090 200 125 40 MW5-110L/1 35 7.7 6500 1000/800 450/400 1350 1100 1140 220 150 45 MW5-120L/1 45.5 10 7500 1300/1000 600/500 1700 1200 1100 220 150 45 MW5-130L/1 54 12 8500 1400/1100 700/600 2010 1300 1240 250 175 50 MW5-150L/1 71.2 15.6 11000 1900/1500 1100/900 2830 1500 1250 350 210 60 MW5-165L/1 75 16.5 12500 2300/1800 1300/1100 3200 1650 1590 370 230 75 MW5-180L/1 102 22.5 14500 2750/2100 1600/1350 4230 1800 1490 370 230 75 MW5-210L/1 129 28.4 21000 3500/2800 2200/1850 7000 2100 1860 400 250 80 MW5-240L/1 154 33.9 28000 4800/3800 2850/2250 9000 2400 2020 450 280 90

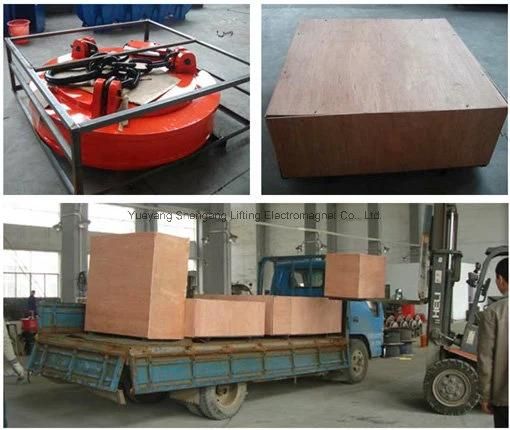

Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
