Diameter 1300mm Circular Lifting Electro Magnet for Scraps
Yueyang Shengang Lifting Electromagnet Co., Ltd.- Certification：ISO9001
- Condition：New
- Operation Form：Crane Console
- Maximum Lifting Height：25-30m
- Maximum Lifting Weight：20-50t
- Main Girder Form：Double Girder
Base Info
- Model NO.：MW5-130L,1
- Type：Beam
- Shape：Circular,Round
- Rated Voltage：220V
- Duty Cycle：60%
- Electric Current：54A
- Cold-State Power：12kw
- Weight：2010kg
- Lifting Capacity for Cast Iron：1400,1100kg
- Lifting Capacity for Steel Ball：8500kg
- Lifting Capacity for Steel Scrap：700,600kg

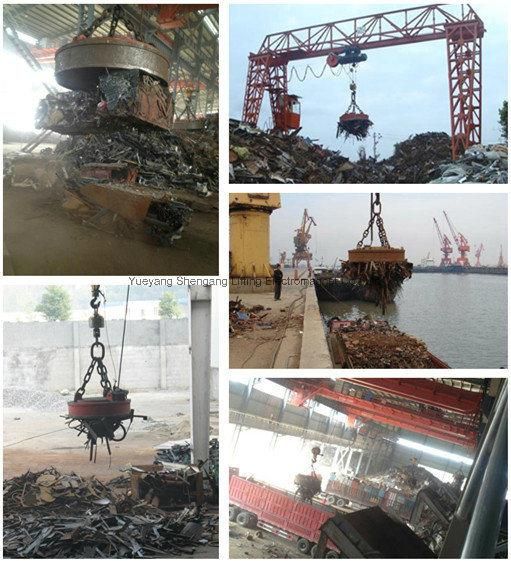

- Application：for Transporting Steel Scraps,Irons,Balls.
- Transport Package：Standard Export Package
- Specification：ISO9001: 2008
- Trademark：SHENGANG MAGNET
- Origin：China
- HS Code：85059010
- Production Capacity：100 Sets Per Month
Description
ModelElectric current (A) Cold-state power (kw) lifting capacity (kg) cold/hot state Mass (kg) Overall dimension (mm) steel ball cast iron steel scrap A B C D E MW5-70L/1 15 3.3 2500 380/200 120/100 490 700 800 160 90 30 MW5-80L/1 18 3.96 3000 480/250 150/300 620 800 800 160 90 30 MW5-90L/1 26.6 5.9 4500 650/440 250/200 800 900 1090 200 125 40 MW5-110L/1 35 7.7 6500 1000/800 450/400 1350 1100 1140 220 150 45 MW5-120L/1 45.5 10 7500 1300/1000 600/500 1700 1200 1100 220 150 45 MW5-130L/1 54 12 8500 1400/1100 700/600 2010 1300 1240 250 175 50 MW5-150L/1 71.2 15.6 11000 1900/1500 1100/900 2830 1500 1250 350 210 60 MW5-165L/1 75 16.5 12500 2300/1800 1300/1100 3200 1650 1590 370 230 75 MW5-180L/1 102 22.5 14500 2750/2100 1600/1350 4230 1800 1490 370 230 75 MW5-210L/1 129 28.4 21000 3500/2800 2200/1850 7000 2100 1860 400 250 80 MW5-240L/1 154 33.9 28000 4800/3800 2850/2250 9000 2400 2020 450 280 90

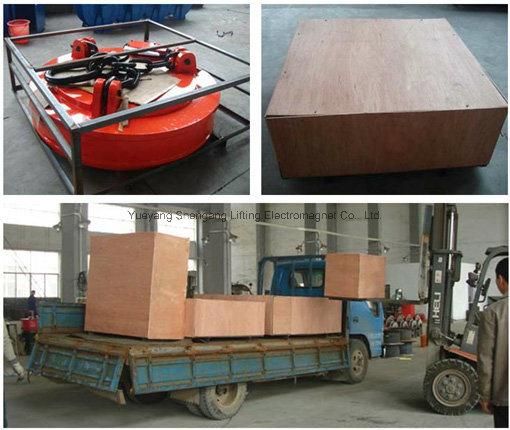

Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
