CE Certified Nucleon Nlh Double Girder Eot Crane with Trolley Hoist

Nucleon (Xinxiang) Crane Co., Ltd.
  • After-sales Service：Routine Inspection Per Annum
  • Warranty：18 Months After Delivery

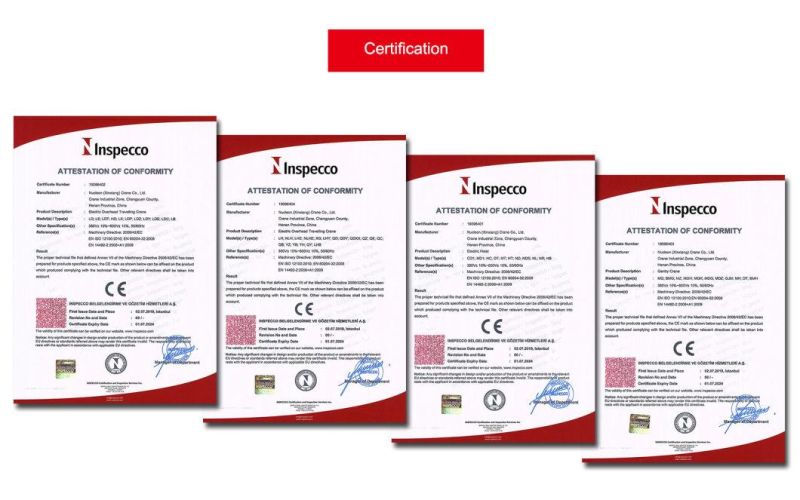

  • Certification：CE, ISO9001, ISO14001
  • Condition：New
  • Operation Form：Remote Control
  • Maximum Lifting Height：20-25m

Base Info

  • Model NO.：NLH
  • Maximum Lifting Weight：5~80 Ton
  • Main Girder Form：Double Girder
  • Type：Electric Overhead Traveling Crane
  • Load Capacity：up to 80 Ton
  • Span：up to 36 Meters
  • Height of Lift：up to 26 Meters
  • Control：Radio Remote,Operation Cabin,Pendant Control
  • Power Supply：380~480V, 50~60Hz, 3phase
  • Hoisting Speed：5,0.8 M,Min (VFD as Option)
  • Hoist Travel Speed：3~30 M,Min (VFD)
  • Crane Travel Speed：4~40 M,Min (VFD)
  • Duty Class：A5 (ISO), Fem 2m

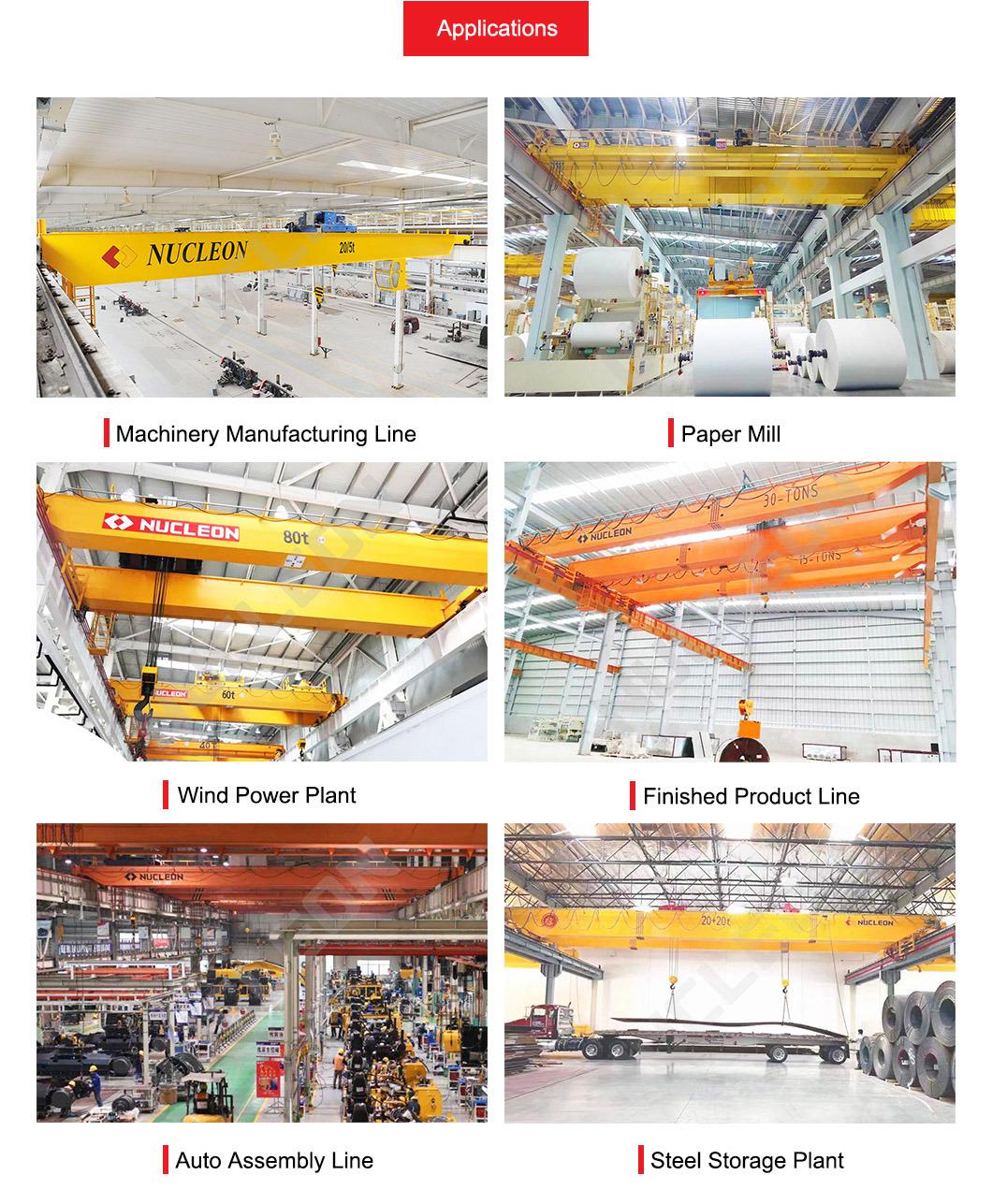

  • Applications：Warehouse, Production Line, Storage Plant
  • Lead Time：Within 30 Days
  • Installation：Video Tutorial, Site Installation & Commissioning
  • Random Files：Operation & Maintenance Manual, Wiring Diagram
  • Spare Parts：Provide Random Spares for Two Year Maintenance
  • Transport Package：Wooden Case, Waterproof Film
  • Specification：Single hoist,Tandem Control with Two Hoists
  • Trademark：Nucleon Crane
  • Origin：Henan, China
  • HS Code：8426112000
  • Production Capacity：600 Sets Per Annum

Description

Basic Info.

Model NO. NLH Maximum Lifting Weight 5~80 Ton Main Girder Form Double Girder Type Electric Overhead Traveling Crane Load Capacity up to 80 Ton Span up to 36 Meters Height of Lift up to 26 Meters Control Radio Remote/Operation Cabin/Pendant Control Power Supply 380~480V, 50~60Hz, 3phase Hoisting Speed 5/0.8 M/Min (VFD as Option) Hoist Travel Speed 3~30 M/Min (VFD) Crane Travel Speed 4~40 M/Min (VFD) Duty Class A5 (ISO), Fem 2m Applications Warehouse, Production Line, Storage Plant Lead Time Within 30 Days Installation Video Tutorial, Site Installation & Commissioning Random Files Operation & Maintenance Manual, Wiring Diagram Spare Parts Provide Random Spares for Two Year Maintenance Transport Package Wooden Case, Waterproof Film Specification Single hoist/Tandem Control with Two Hoists Trademark Nucleon Crane Origin Henan, China HS Code 8426112000 Production Capacity 600 Sets Per Annum

Product Description

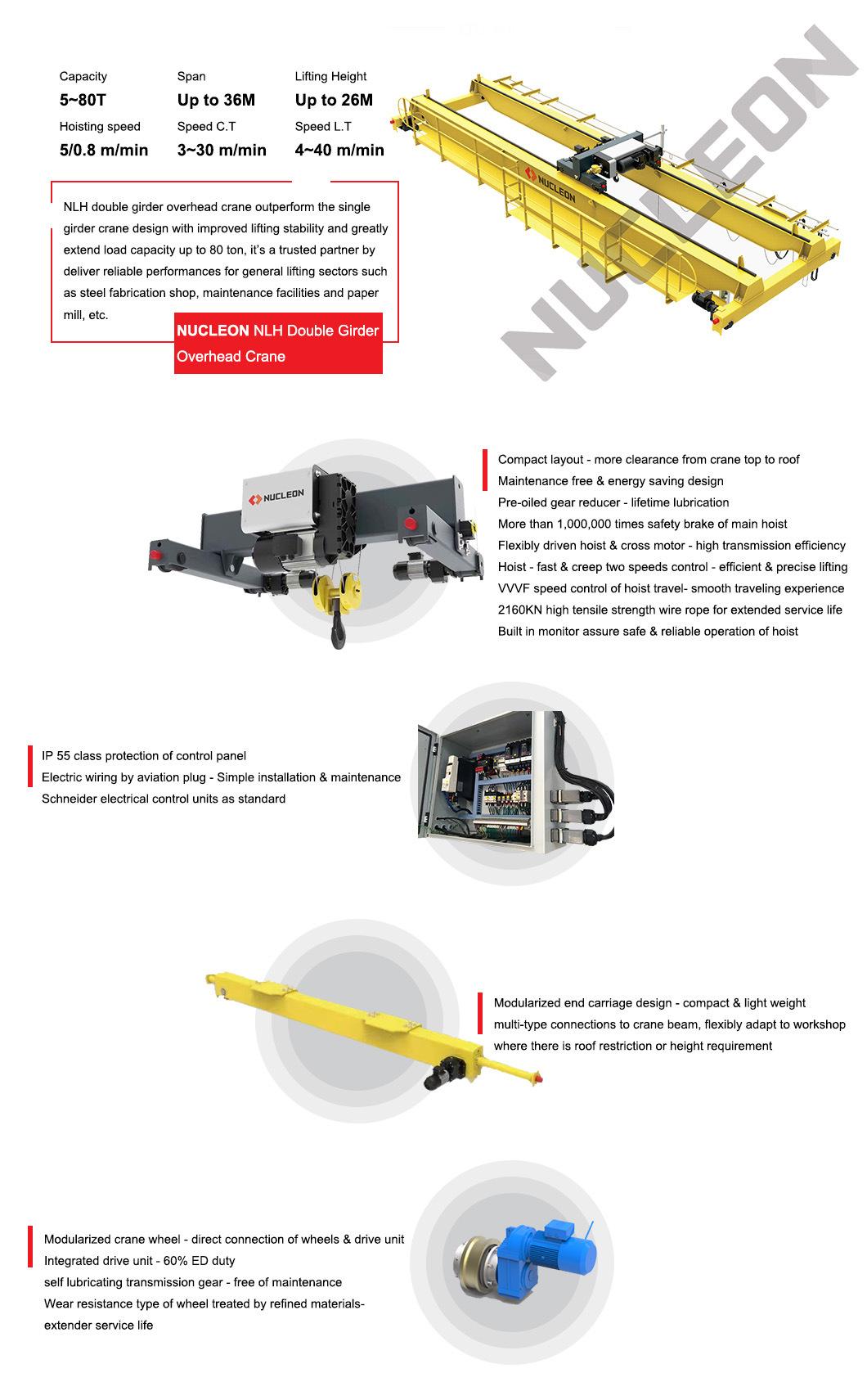

CE Certified Nucleon Nlh Double Girder Eot Crane with Trolley Hoist

CE Certified Nucleon Nlh Double Girder Eot Crane with Trolley Hoist
CE Certified Nucleon Nlh Double Girder Eot Crane with Trolley Hoist
CE Certified Nucleon Nlh Double Girder Eot Crane with Trolley Hoist

CE Certified Nucleon Nlh Double Girder Eot Crane with Trolley Hoist
1. Technical advisory of the best material handling solution before sale to maximize efficiency while optimize investment plan on the other hand through our 30 years dedications to lifting performance.

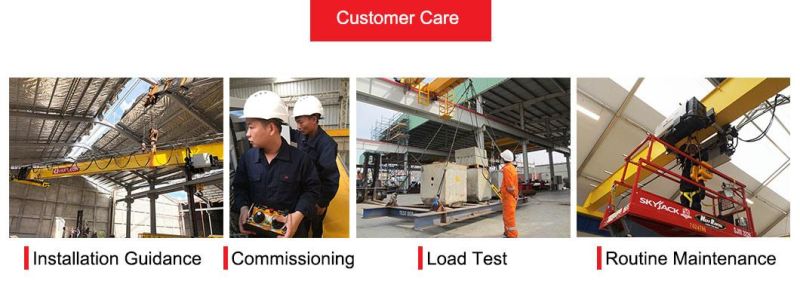

2. Installation service of overhead crane available with:
Video tutorial support for whole installation process.
7/24 remote assistance for crane installation guidance and commissioning.
Field engineer service of installation, commissioning and training.

3. Twelve months warranty after successful crane commissioning.

4. Annual inspection service at customer's site.
