Electromagnetic Double Girder Eot Overhead Crane with Magnet for Rebar and Billet Handling

Nucleon (Xinxiang) Crane Co., Ltd.
  • After-sales Service：Routine Inspection Per Annum
  • Warranty：12 Month Warranty After Successful Commissioning
  • Certification：CE, ISO9001, ISO14001
  • Condition：New
  • Operation Form：Air Operation+Ground Operation
  • Maximum Lifting Height：20-25m

Base Info

  • Model NO.：QDXX
  • Maximum Lifting Weight：20-50t
  • Main Girder Form：Double Girder
  • Type：Electric Overhead Traveling Crane
  • Load Capacity：up to 16 Ton (Weight Below Magnet)
  • Span：up to 36 Meters
  • Height of Lift：up to 20 Meters
  • Control：Operation Cabin,Radio Remote Control
  • Power Supply：380~480V, 50~60Hz, 3phase
  • Hoisting Speed：1.5~15 M,Min (VFD)
  • Hoist Travel Speed：4~40 M,Min (VFD)
  • Crane Travel Speed：8~80 M,Min (VFD)
  • Duty Class：A6 (ISO)

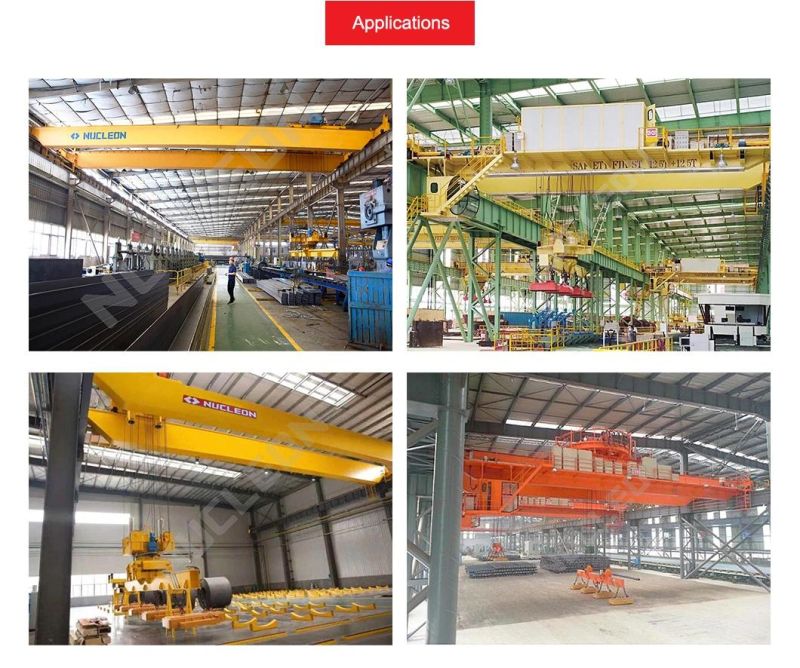

  • Applications：Rolling Mill,Rebar Storage Plant
  • Lead Time：Within 50 Days
  • Installation：Video Tutorial, Site Installation & Commissioning
  • Random Files：Operation & Maintenance Manual, Wiring Diagram
  • Spare Parts：Provide Random Spares for Two Year Maintenance
  • Transport Package：Wooden Case, Waterproof Film, Steel Pallet
  • Specification：Standard Swivel Hook,Magnet Beam or Crab Rotate
  • Trademark：Nucleon Crane
  • Origin：Henan, China
  • HS Code：8426112000
  • Production Capacity：600 Sets Per Annum

Description

Basic Info.

Model NO. QDXX Maximum Lifting Weight 20-50t Main Girder Form Double Girder Type Electric Overhead Traveling Crane Load Capacity up to 16 Ton (Weight Below Magnet) Span up to 36 Meters Height of Lift up to 20 Meters Control Operation Cabin/Radio Remote Control Power Supply 380~480V, 50~60Hz, 3phase Hoisting Speed 1.5~15 M/Min (VFD) Hoist Travel Speed 4~40 M/Min (VFD) Crane Travel Speed 8~80 M/Min (VFD) Duty Class A6 (ISO) Applications Rolling Mill/Rebar Storage Plant Lead Time Within 50 Days Installation Video Tutorial, Site Installation & Commissioning Random Files Operation & Maintenance Manual, Wiring Diagram Spare Parts Provide Random Spares for Two Year Maintenance Transport Package Wooden Case, Waterproof Film, Steel Pallet Specification Standard Swivel Hook/Magnet Beam or Crab Rotate Trademark Nucleon Crane Origin Henan, China HS Code 8426112000 Production Capacity 600 Sets Per Annum

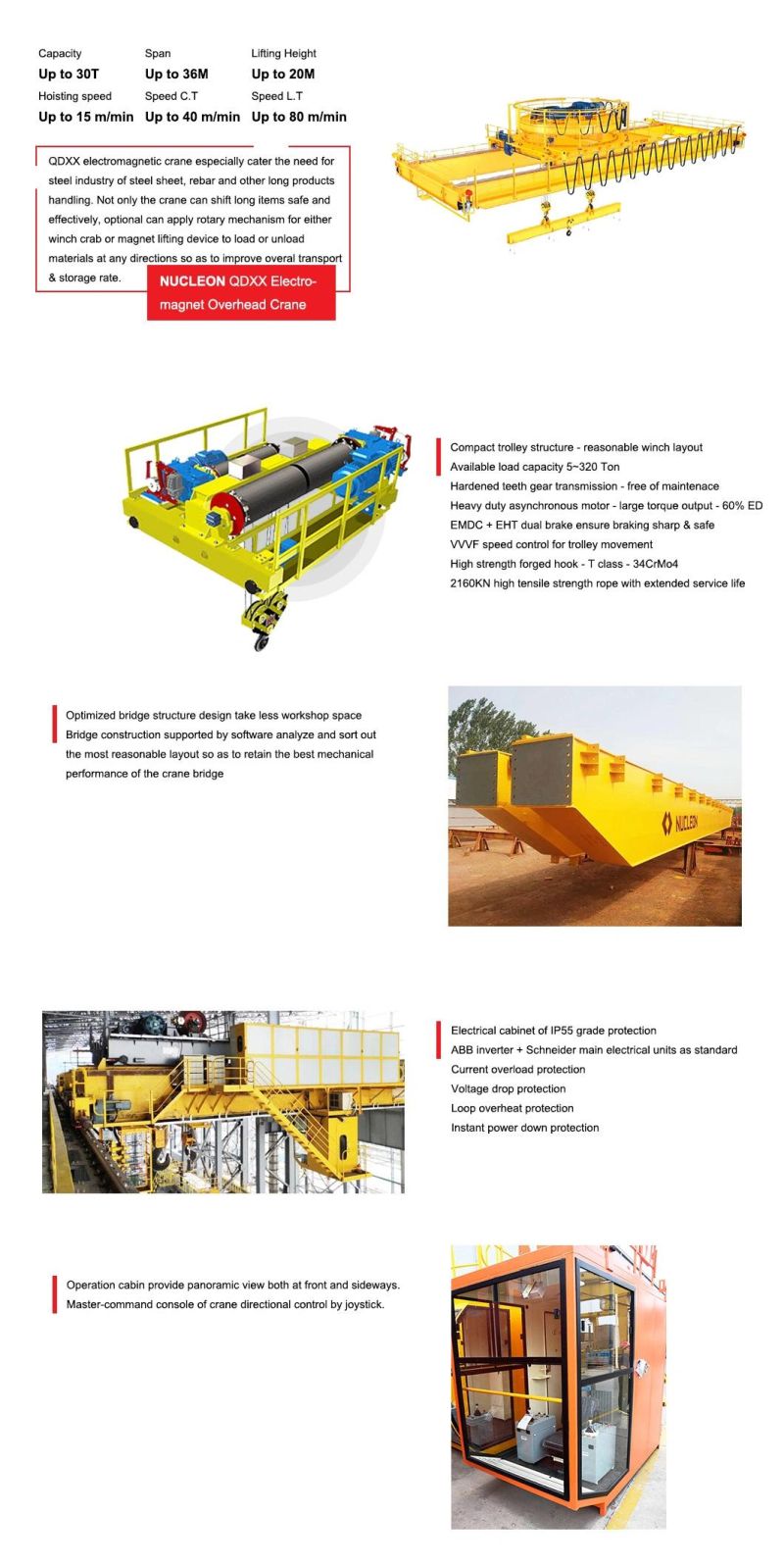

Product Description

Electromagnetic Double Girder Eot Overhead Crane with Magnet for Rebar and Billet Handling
Electromagnetic Double Girder Eot Overhead Crane with Magnet for Rebar and Billet Handling
Electromagnetic Double Girder Eot Overhead Crane with Magnet for Rebar and Billet Handling
Electromagnetic Double Girder Eot Overhead Crane with Magnet for Rebar and Billet Handling

Electromagnetic Double Girder Eot Overhead Crane with Magnet for Rebar and Billet Handling
1. Technical advisory of the best material handling solution before sale to maximize efficiency while optimize investment plan on the other hand through our 30 years dedications to lifting performance.

2. Installation service of overhead crane available with:
Video tutorial support for whole installation process.
7/24 remote assistance for crane installation guidance and commissioning.
Field engineer service of installation, commissioning and training.

3. Twelve months warranty after successful crane commissioning.

4. Annual inspection service at customer's site.
