Steel Smelting Shop Use High Reliable Double Girder Eot Charging Crane

Nucleon (Xinxiang) Crane Co., Ltd.
  • After-sales Service：Routine Inspection Per Annum
  • Warranty：18 Months After Delivery
  • Certification：CE, ISO9001, ISO14001
  • Condition：New
  • Operation Form：Cabin
  • Maximum Lifting Height：25-30m

Base Info

  • Model NO.：YZ
  • Maximum Lifting Weight：>200t
  • Main Girder Form：Double Girder
  • Type：Metallurgical
  • Load Capacity：up to 320 Ton
  • Span：up to 26 Meters
  • Height of Lift：up to 30 Meters
  • Control：Operation Cabin
  • Power Supply：380~480V, 50~60Hz, 3phase
  • Hoisting Speed：up to 12 M,Min
  • Hoist Travel Speed：up to 40 M,Min
  • Crane Travel Speed：up to 60 M,Min
  • Duty Class：A8 (ISO)

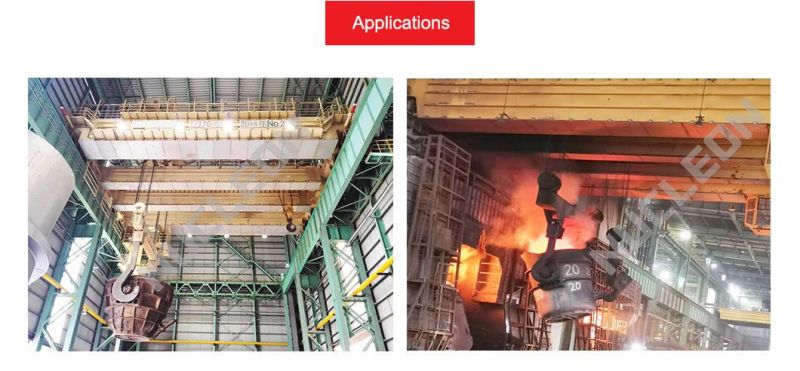

  • Applications：SMS Shop, Furnace Shop
  • Lead Time：Within 60 Days
  • Installation：Site Installation & Commissioning Service
  • Random Files：Operation & Maintenance Manual, Wiring Diagram
  • Spare Parts：Provide Random Spares for Two Year Maintenance
  • Applicable Ambient Temp：Above 60 Celsius
  • Transport Package：Wooden Case, Waterproof Film, Steel Pallet
  • Specification：Double Girder,Four Girder
  • Trademark：Nucleon Crane
  • Origin：Henan, China
  • HS Code：8426112000
  • Production Capacity：100 Sets Per Annum

Description

Basic Info.

Model NO. YZ Maximum Lifting Weight >200t Main Girder Form Double Girder Type Metallurgical Load Capacity up to 320 Ton Span up to 26 Meters Height of Lift up to 30 Meters Control Operation Cabin Power Supply 380~480V, 50~60Hz, 3phase Hoisting Speed up to 12 M/Min Hoist Travel Speed up to 40 M/Min Crane Travel Speed up to 60 M/Min Duty Class A8 (ISO) Applications SMS Shop, Furnace Shop Lead Time Within 60 Days Installation Site Installation & Commissioning Service Random Files Operation & Maintenance Manual, Wiring Diagram Spare Parts Provide Random Spares for Two Year Maintenance Applicable Ambient Temp Above 60 Celsius Transport Package Wooden Case, Waterproof Film, Steel Pallet Specification Double Girder/Four Girder Trademark Nucleon Crane Origin Henan, China HS Code 8426112000 Production Capacity 100 Sets Per Annum

Product Description

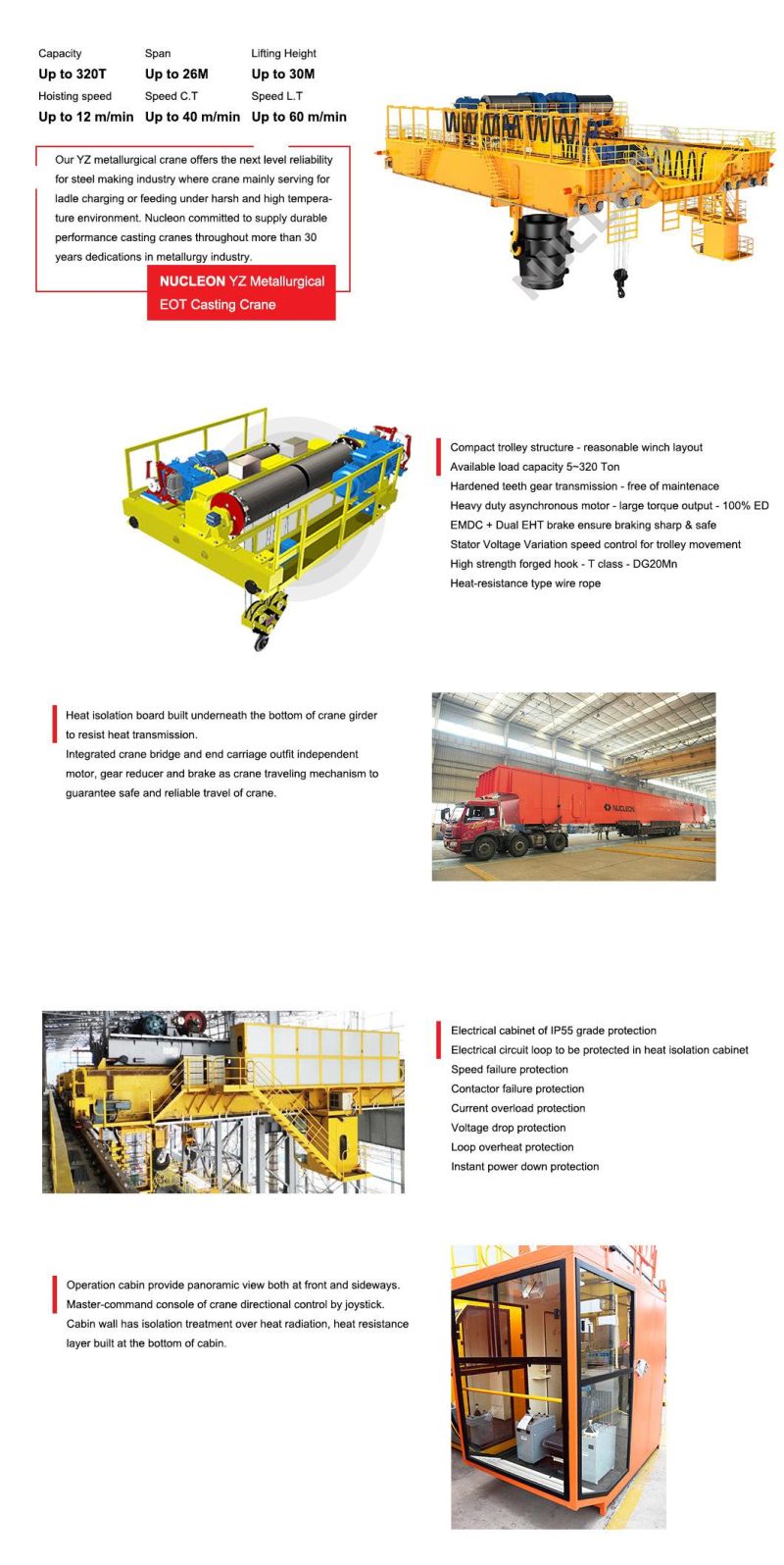

Steel Smelting Shop Use High Reliable Double Girder Eot Charging Crane
Steel Smelting Shop Use High Reliable Double Girder Eot Charging Crane
Steel Smelting Shop Use High Reliable Double Girder Eot Charging Crane
Steel Smelting Shop Use High Reliable Double Girder Eot Charging Crane

Steel Smelting Shop Use High Reliable Double Girder Eot Charging Crane
1. Technical advisory of the best material handling solution before sale to maximize efficiency while optimize investment plan on the other hand through our 30 years dedications to lifting performance.

2. Installation service of overhead crane available with:
Video tutorial support for whole installation process.
7/24 remote assistance for crane installation guidance and commissioning.
Field engineer service of installation, commissioning and training.

3. Twelve months warranty after successful crane commissioning.

4. Annual inspection service at customer's site.
