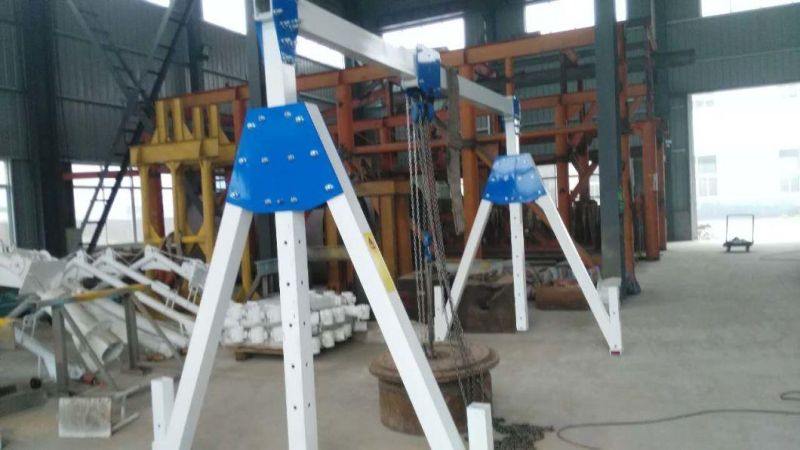

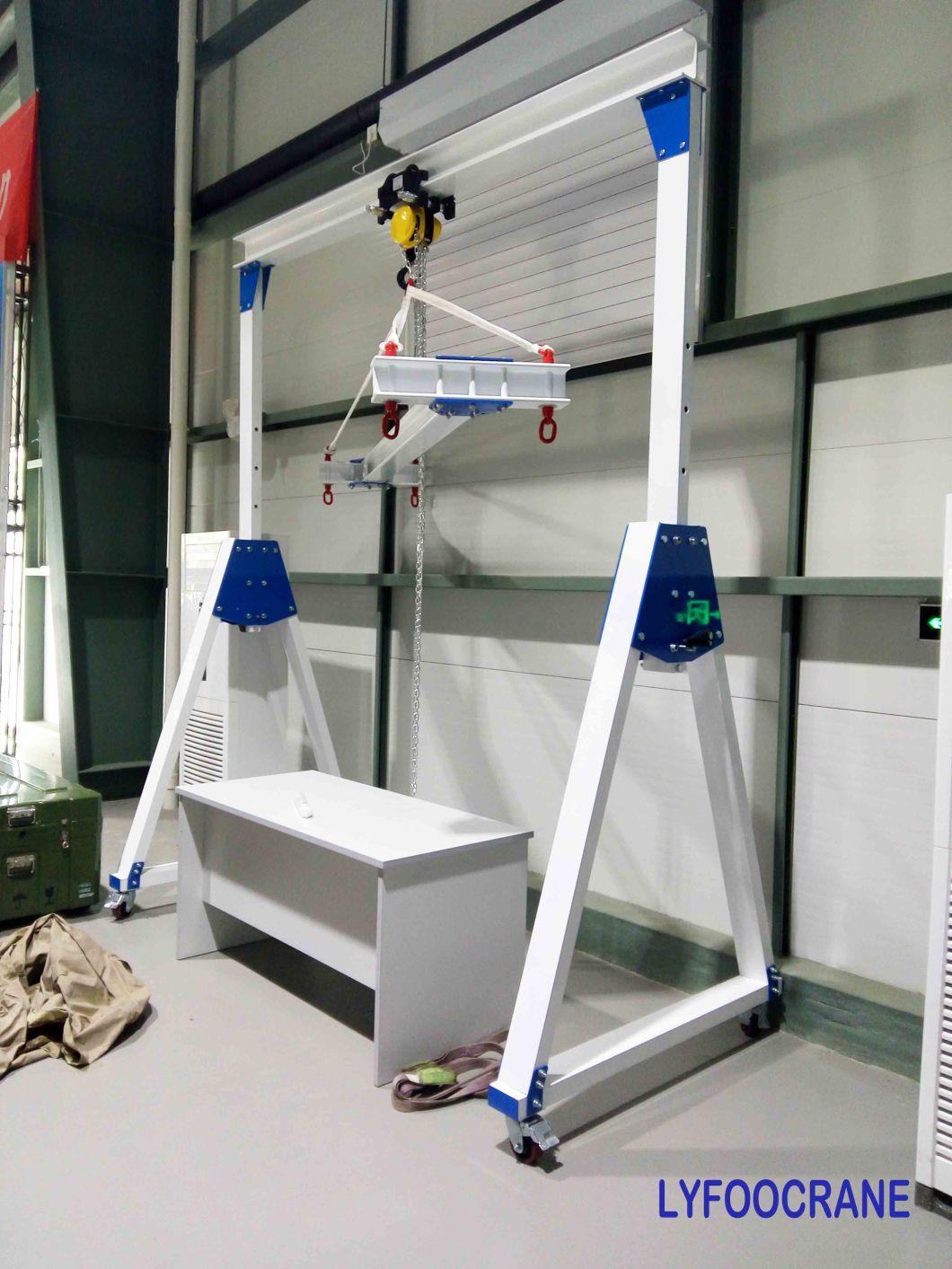

Aluminum Portable Manual Gantry Crane. Foldable Superlight Crane
Lyfoo Industry Co., Ltd.- Certification：CE
- Condition：New
- Maximum Lifting Weight：<20t
- Maximum Lifting Height：<10m
- Operation Form：Ground Operation
- Type：Common Gantry Crane
Base Info
- Model NO.：Aluminum PT-3
- Main Girder Form：Single Girder
- Material：Aluminum
- Features：Span Height Adjustable
- Advantage：Small Dead Weight

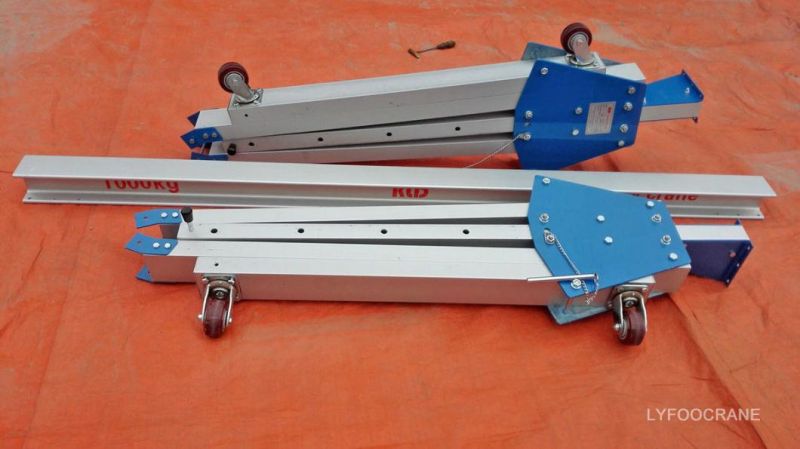

- Special Point：Whole Unit Foldable
- Lifting Equipment：Electric,Manual Hoist
- Transport Package：Strong Wooden Box
- Specification：Aluminum
- Trademark：LYFOO
- Origin：Henan
- HS Code：84264190
- Production Capacity：50000peice Per Year
Description
3-9m3-9m 140 PT3-1 1 160 PT3-2 2 160 PT3-3 3 200 PT3-5 5 250
Safety and Installation
Take notes before installation:
once the crane has been shipped to the destination,check according to the packing list to see if any damages or deforms.If yes,try to repair it.
The installation floor should be stable and smooth.
Installation Method I :
Assemble the two side leg and ground beam properly on the floor.
Brake the wheel and lift the end of the leg to 60 degree.Lift one side of the beam.Join the flanges.
Assemble the flanges by high-strength bolts,spacers and spring washer.Fasten those parts.
Lifting the finished beam and lay to the other side legs.Repeat the step 3.
Assemble the hoist to the beam and make the hoist is safe and workable.
Install the festoon system if the hoist is electrical type.
Install the electrics between the motors and electrical box.
Till now,the installation is finished.
Installation Method II:
Assemble the two sides legs and them the ready.
Brake the wheels.Put the 2 legs parts to proper position according to the beam length.
Put the beam to the proper position and match the flanges between the beam and leg.
Assemble the flanges by the high-strength bolts,spacer,spring washer and nuts.Fasten those parts.
After assembling,lift the whole crane to up strait by worker or by lifting equipment.
Install the hoist to the beam.
Install the festoon system and electrics if the hoist is electrical type.
Package
Our service
1.We provide free training and provide free document ragarding to using ,maintenance and repairing .etc.
2.We can send technician to go to site for instruction and technical service upon request.
3.The guarantee is 12 months from the day that the crane start to run property within this period ,any problem due to the manufacturing reason,will be slolved by us at free of charge.After 12 month,we will continue provide good service and only charge spare part cost.
4.We provide 24-hour telephone service.
