• Model NO.：LSL30
• HS Code：84313900
• Production Capacity：1000 PCS,Month

Basic Info.

Model NO. LSL30 HS Code 84313900 Production Capacity 1000 PCS/Month

Product Description

SL30 Centrifugal Type Safety Lock
Blocstop ( also called safety lock or fall arrest)  is the fall arrest and safety device. When the working steel rope is broken suddenly, It will be actuated to lock the steel cable  to prevent the  platform or cage  from falling down.

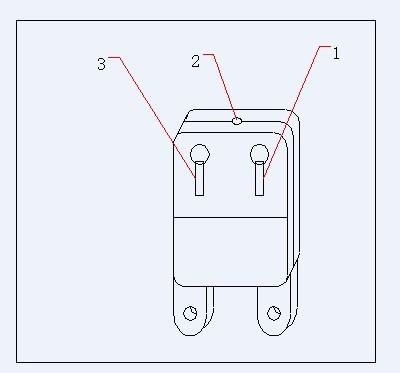

1.Lock  2.Rope inlet 3.Unlock

 Working principle:The steel cable goes through the rope inlet hole to the space between the pressing wheel and the block rotation disc. There is block on the rotation disc.

When the platform goes down, the steel wire rope drives the pressing wheels to move in the opposite direction by the friction power.  When the platform is overspeed, the centrifugal force of the block will overcome the pressing force of the spring.The cable locking system will work and make the block lock the cable. The suspended platform will stop descending.

Model	Type	Load Capacity	Fall distance permitted	Permission Force of Impact	Allowable Speed
SL30	Centrifugal	Max 800kg	Max 100mm	30KN	Max 22m/min

SL30 Centrifugal Safety Lock
