• Model NO.：LY-2
• Main Girder Form：I-Beam
• Transport Package：Plastic Cloth
• Specification：CE
• Trademark：LYFOOCRANE
• Origin：Beijing, China
• HS Code：84253190
• Production Capacity：5000 Units Per Year

Basic Info.

Model NO. LY-2 Main Girder Form I-Beam Transport Package Plastic Cloth Specification CE Trademark LYFOOCRANE Origin Beijing, China HS Code 84253190 Production Capacity 5000 Units Per Year

Product Description

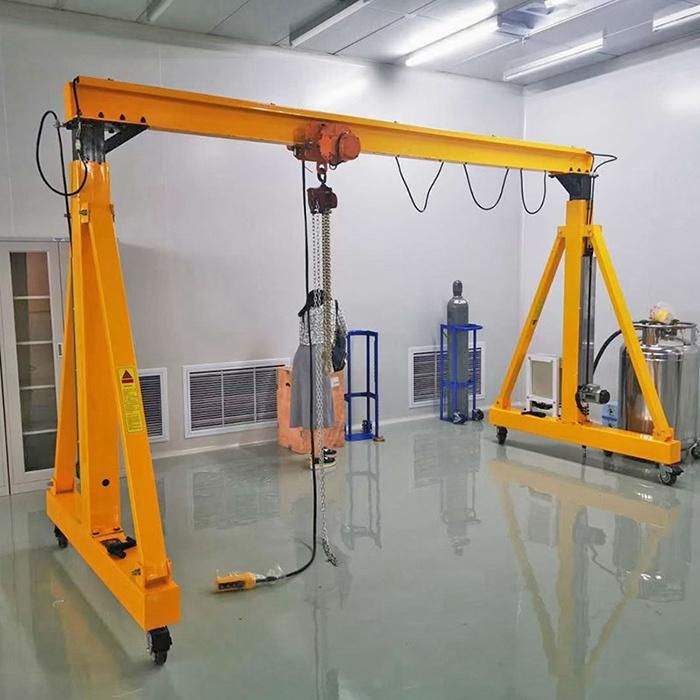

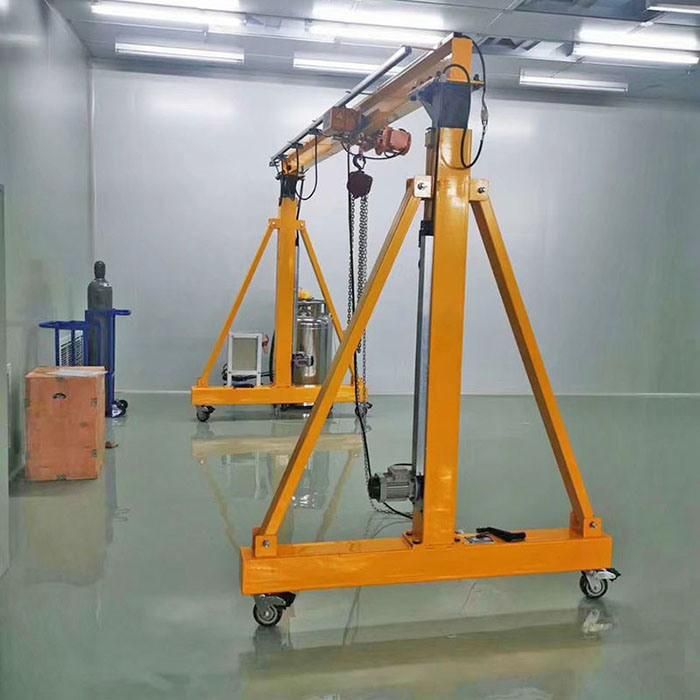

Adjustable Manual Gantry Crane



Features of LY-2 Adjustable Gantry Crane



We provide 3 type of height adjusted gantry:



1. Lever raise model:



Two(2) levers are installed on both side, and it is more compact and convinient to raise the beam.  It is most popular among our clients.



2.Winch raise model:



By using 2 sets of winch on both side of the leg, the beam can be raised by different height accoring to the requirement.



3. Turbine raise model:



This is a patend designing from our company, and it is the only designing among our competitors all around the world.   The raising is precisely by mm and can be raised to any point according to the site situation.  In many cases, the user can raise the beam as close as possible to the roof, then, give a maximum of lift height than any other lifting equippment.



 Assemble and Disamemble



1. Bolt connection

All loose parts are connected by high-strength bolts. 2 worker can assemble them at site easily.



2. Nut embeded design

Ground beam has a nut embeded designing.  This makes the assemble work very simple.  All bolts and nuts are matched perfectly.



3. Span alternative

Clinet can order differnet span of beams to meet the same legs.  It can be assembled according to different working site.



4. Other features

Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection.
