• Model NO.：L500A
• Type：Top-Slewing Crane
• Trademark：ZOOMLION
• Origin：China

Basic Info.

Model NO. L500A Type Top-Slewing Crane Trademark ZOOMLION Origin China

Product Description

Feature

Excellent lifting performance

1. The lifting performance of all luffing jib lengths exceeds that of the existing boom tower cranes of the
    same level in the market.

2. All arm lengths can lift the maximum lifting weight.

Fast lifting speed

1. The hoisting/luffing speed is faster. For example, the lifting speed is increased by 32t compared with L500-
    32, which is a 16% increase.

2. Hoisting and luffing ropes are arranged neatly, which greatly improves the service life of wire ropes.

Diversified configuration

1. The luffing jib has seven combinations of 60/55/50/45/40/35/30m arm length.

2. There are two options for the maximum lifting capacity: 50t and 32t.

3. There are manual and electric configuration options.

4. The balance jib can be installed with concrete balance weights and steel plate balance weights.

High degree of intelligence

1. Fault self-diagnosis technology. When the tower crane fails, the current fault and historical fault can be
    inquired through the fault record, and the cause of the fault can be diagnosed and eliminated through the
    mechanism test.

2. Remote management technology can help realizing the work of equipment information management,
    recording of working condition and alarm data, tracking, analysis and remote control.

Parameters


Model	L500A-32/50
Max lifting weight (t)	32/50
Max lifting moment (t.m)	850
Max working range (m)	60
Max hoisting capacity at jib tip (t)	5
Free-standing height (m)	57.17
Max lifting speed (m/min)	105
Slewing speed (r/min)	0~0.78

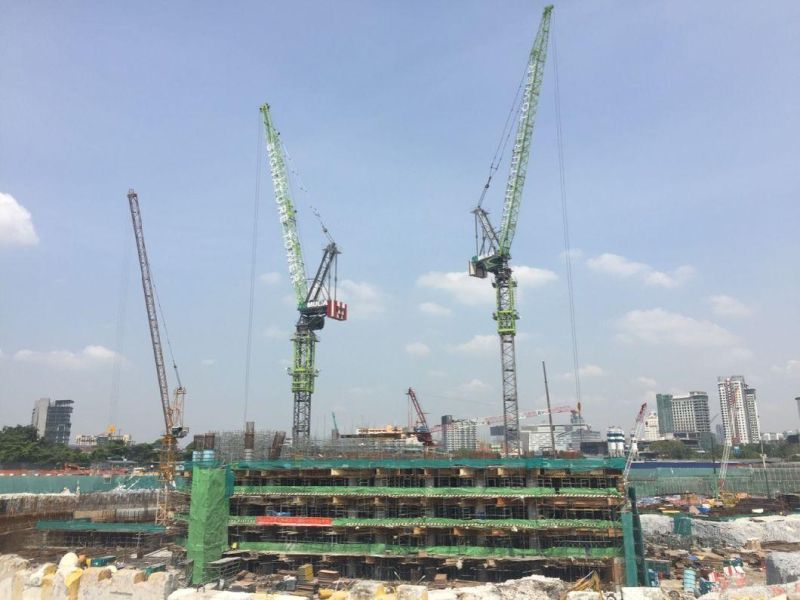

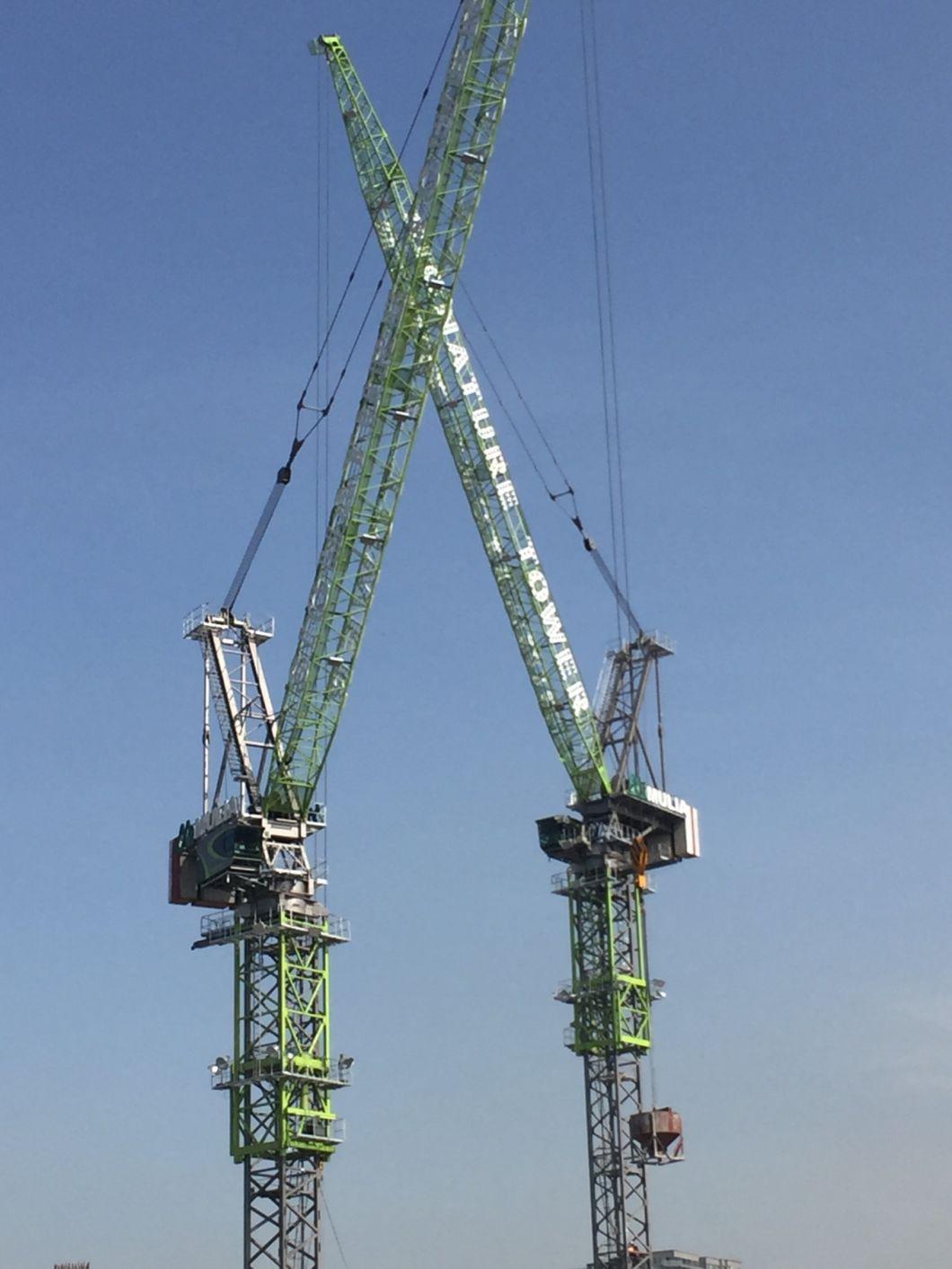

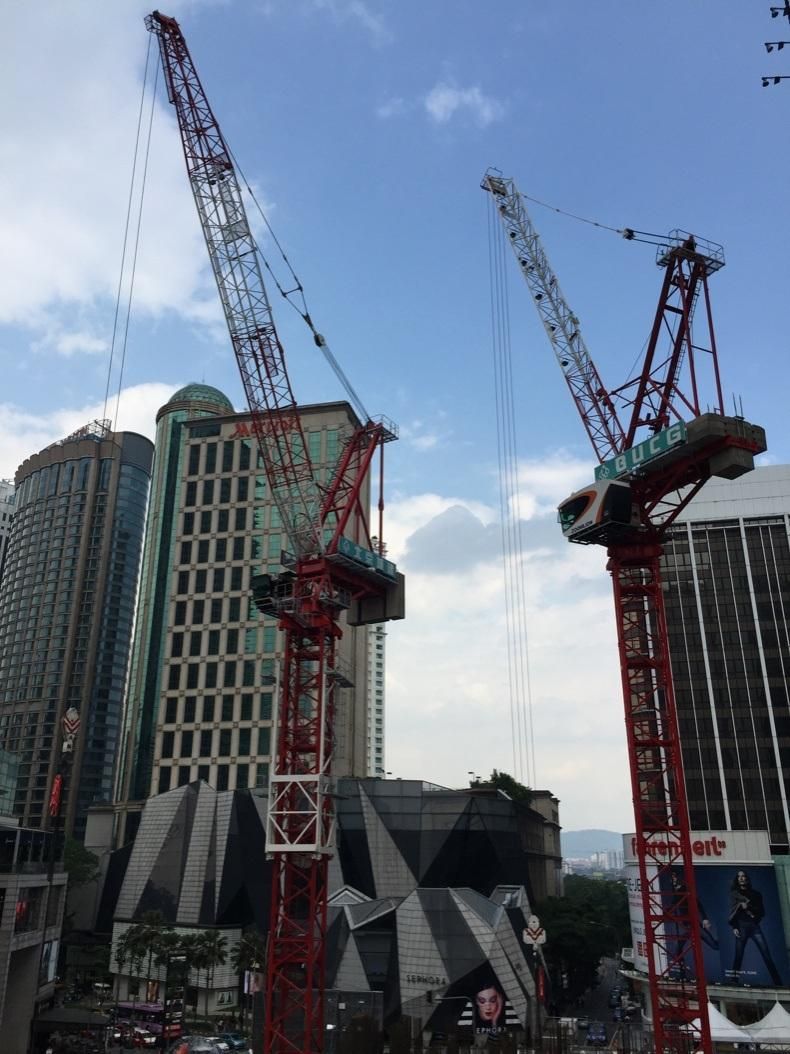

Product Show







Our Company



     Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in
     developing and anufacturing major high-tech equipment in the areas of engineering industry and
     agricultural industry.

     With more than 20 years of innovation and development, the company is now a global enterprise
      possessing 10 major categories and 55 product lines, as well as nearly 460 leading products. Zoomlion is
      China's first construction machinery company to be listed on both Shenzhen and Hong Kong stock
      exchanges, with registered  capital amounting to RMB 7.664 billion. At present,   the company is actively
      promoting strategic transformation, aiming to build a high-end equipment.



      In 1956, the predecessor of Zoomlion, Changsha Construction Machinery Research Institute, developed
      the  first tower crane in China with independent intellectual property rights-QTZ160. With more than 60
      years of  technology inheritance and innovation, Zoomlion has now developed into a world-leading tower
      crane manufacturer and also the secretariat unit of the International Organization for
      Standardization/Crane Technical  Committee (ISO/TC96).

      The products of Zoomlion Construction Hoisting Machinery Company cover four series: hammer-head
      tower  cranes, flat-top tower cranes, luffing tower cranes and construction hoists. Many star products
      have been born  as well, such as the world's largest tonnage top-slewing jack-up Tower crane D5200, the
      world's longest-boom  tower crane D1250, which set a world record for Guinness, the world's largest
      tonnage flat-top tower crane  T2850, and the world's largest tonnage internal climbing boom tower crane
      LH3350, which rolled off the assembly line in 2019.
