• Model NO.：PT-3
• Type：Beam
• Capacity：500kg
• Moving Way：Wheel
• Length：Adjustable
• Features：Truckless
• Power Supply：380V,50Hz,3p, Can Be Customized
• Transport Package：Plastic Cloth
• Specification：CE
• Trademark：LYFOOCRANE
• Origin：Beijing, China
• HS Code：84253190
• Production Capacity：10000

Basic Info.

Model NO. PT-3 Type Beam Capacity 500kg Moving Way Wheel Length Adjustable Features Truckless Power Supply 380V/50Hz/3p, Can Be Customized Transport Package Plastic Cloth Specification CE Trademark LYFOOCRANE Origin Beijing, China HS Code 84253190 Production Capacity 10000

Product Description

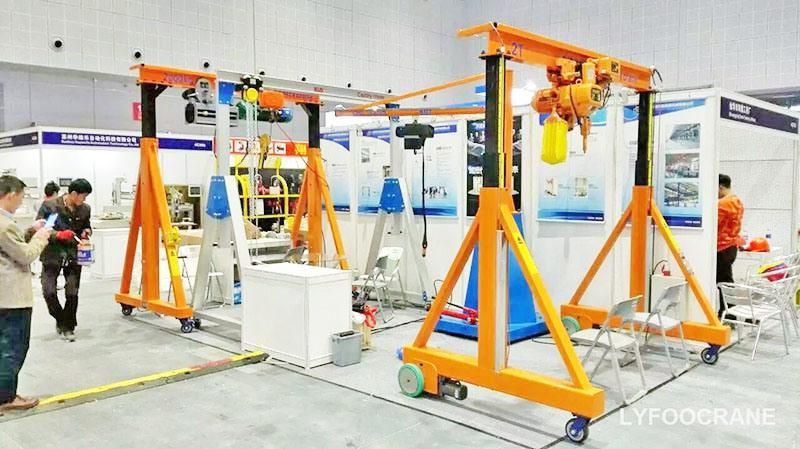

PT-3 Adjustable Manual Gantry

In many places, especially some confined place, where the general overhead crane or gantry crane is not applicalbe, the manual gantry crane is a very useful sololution.  It is a light duty, easy installation, easy operation equippment.



Non-Rail Travelling

It is designed with rubber wheel ,by which, it can run on concrete floor.  The universal wheel on front can lead the gantry to any point by any direction.  The driving wheels can be electrical or manual type according to the site situation.

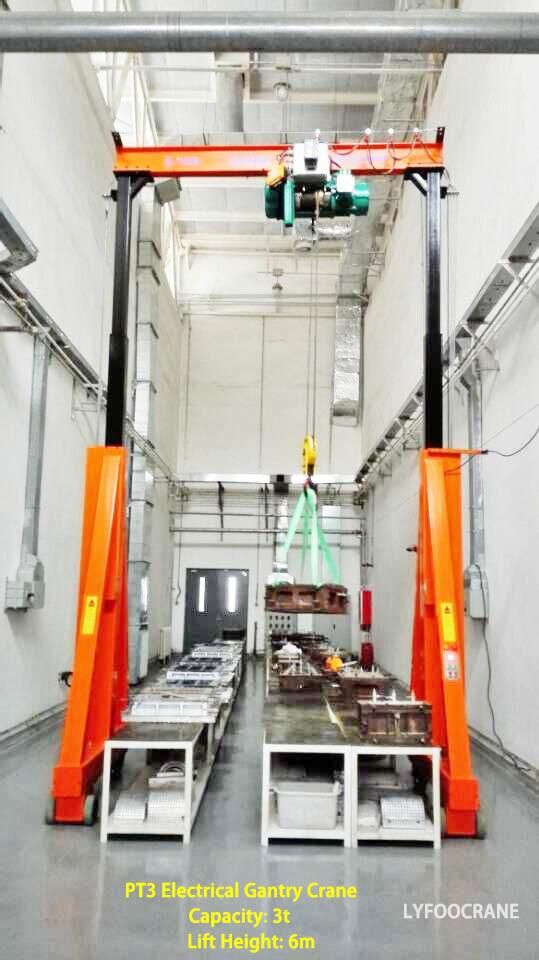

Beam Height Adjusted

The beam height can be rasied to different height.  It is very useful when certain area has some low roof.  As a result, you do not have to buy different cranes or tools. We provide 3 type of height adjusted gantry: Lever raising; Winch raising and Turbine raising model.
1. Lever raise model:

Two(2) levers are installed on both side, and it is more compact and convinient to raise the beam.  It is most popular among our clients.

2.Winch raise model:

By using 2 sets of winch on both side of the leg, the beam can be raised by different height accoring to the requirement.

3. Turbine raise model:

This is a patend designing from our company, and it is the only designing among our competitors all around the world.   The raising is precisely by mm and can be raised to any point according to the site situation.  In many cases, the user can raise the beam as close as possible to the roof, then, give a maximum of lift height than any other lifting equippment.



Assemble and Disamemble



1. Bolt connection

All loose parts are connected by high-strength bolts. 2 worker can assemble them at site easily.

2. Nut embeded design

Ground beam has a nut embeded designing.  This makes the assemble work very simple.  All bolts and nuts are matched perfectly.

3. Span alternative

Clinet can order differnet span of beams to meet the same legs.  It can be assembled according to different working site.

4. Other features

Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection.

Technical Parametre


Type	Capacity(t)	Height(m)	Span(m)	Beam(mm)
PT3-0.5	0.5	3-9m	3-9m	140
PT3-1	1	3-9m	3-9m	160
PT3-2	2	3-9m	3-9m	160
PT3-3	3	3-9m	3-9m	200
PT3-5	5	3-9m	3-9m	250
