5booms Truck Crane Qy25K5d 25t 50t Hydraulic 4booms Cranes
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Provided
- Warranty：1-Year
- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY25K5D
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Max Lifting Capacity：25t
- Engine Model：Sc8dk280q3
- Color：Yellow
- Power：Hydraulic System
- Span：5.14m
- Rated Lifting Moment：1000kn.M
- Transport Package：Nude
- Specification：1265X250X338mm
- Trademark：Oriemac
- Origin：Xuzhou
- Production Capacity：100unit,Month
Description
Basic Info.
Model NO. QY25K5D Shaft Number 3 Crane Jib Five-Arm Type Straight Arm Max Lifting Capacity 25t Engine Model Sc8dk280q3 Color Yellow Power Hydraulic System Span 5.14m Rated Lifting Moment 1000kn.M Transport Package Nude Specification 1265X250X338mm Trademark Oriemac Origin Xuzhou Production Capacity 100unit/MonthProduct Description

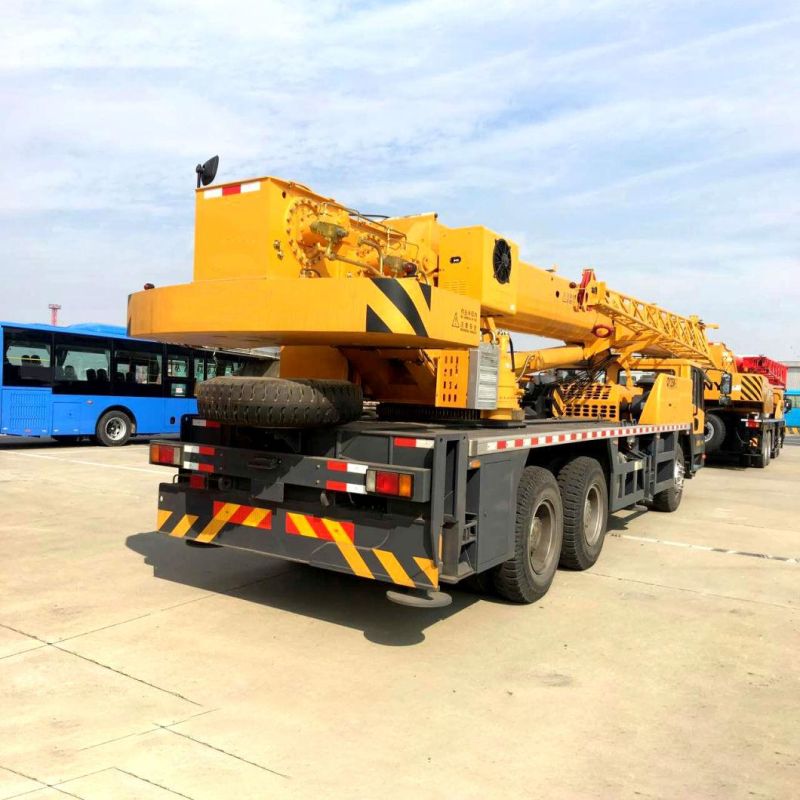

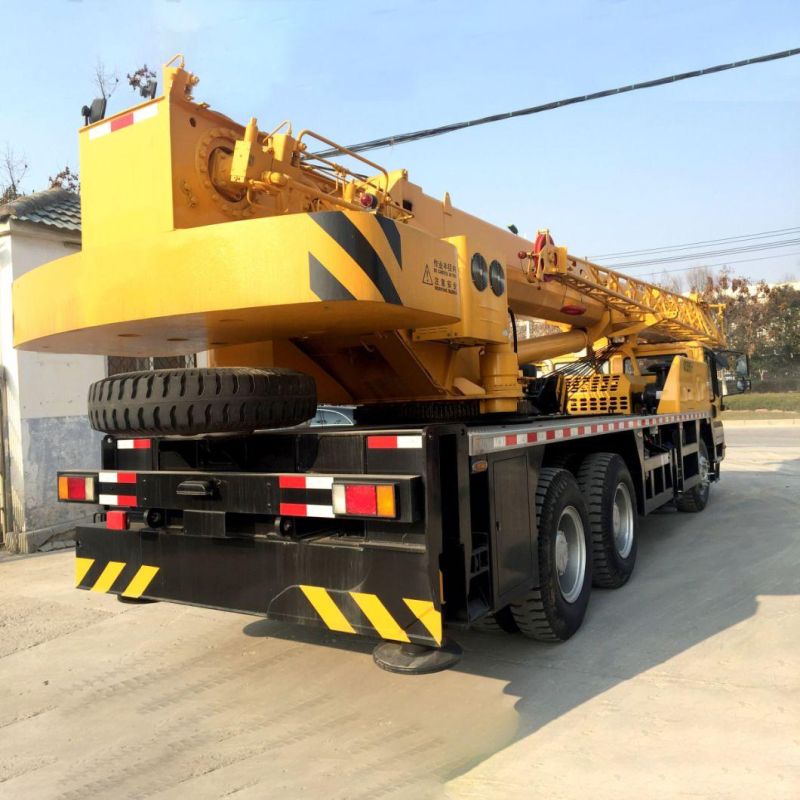

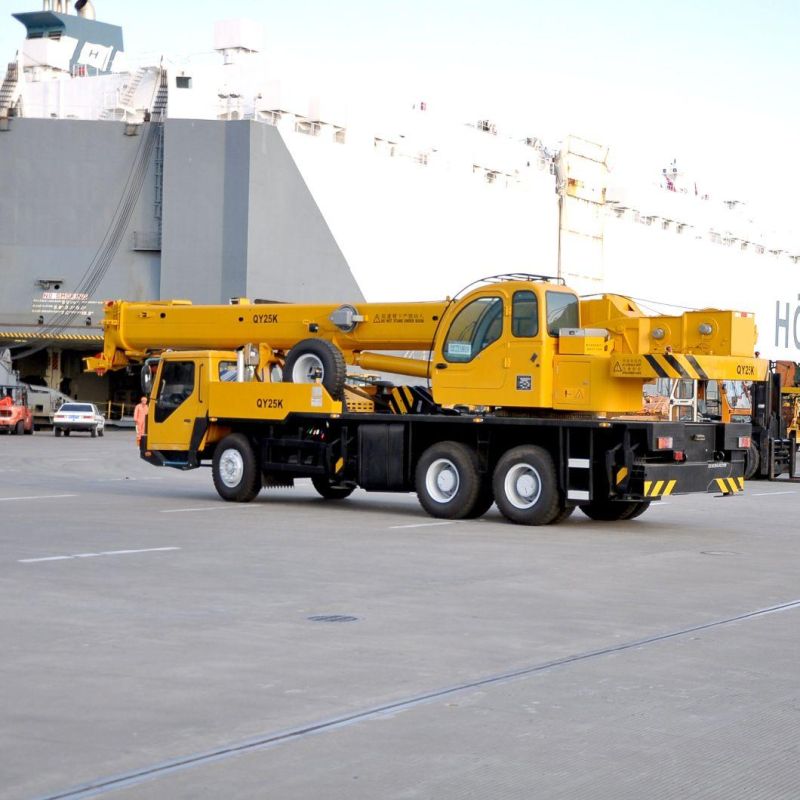

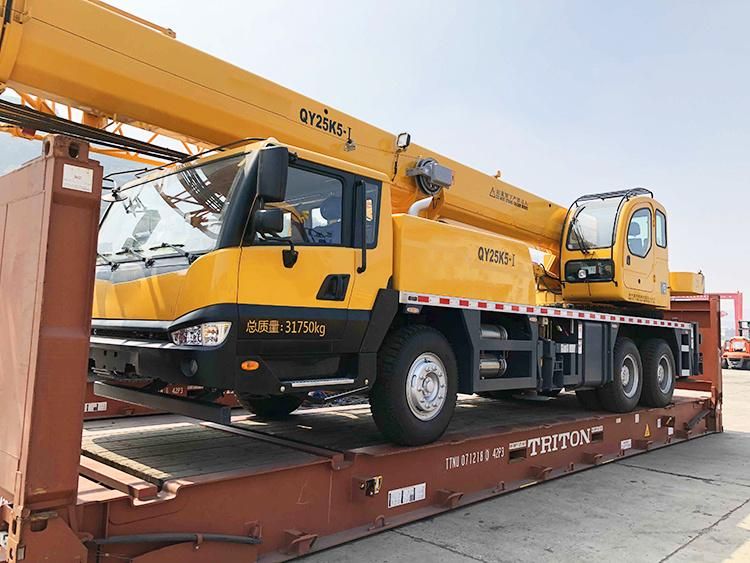

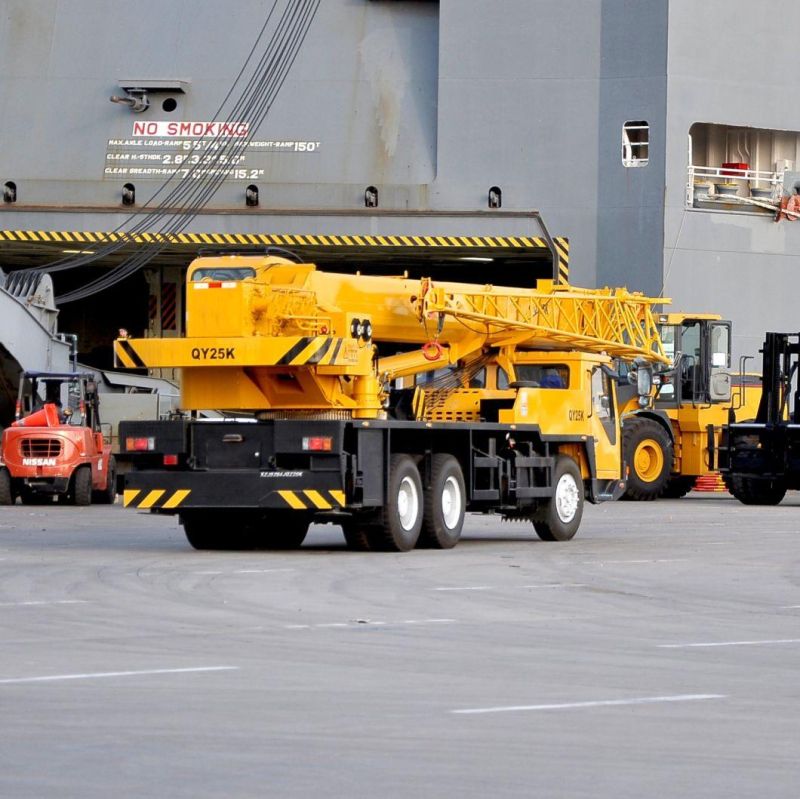

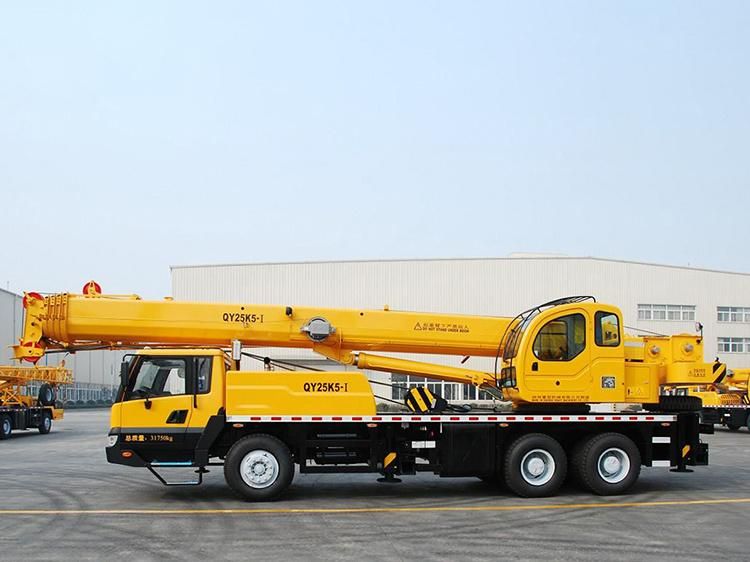

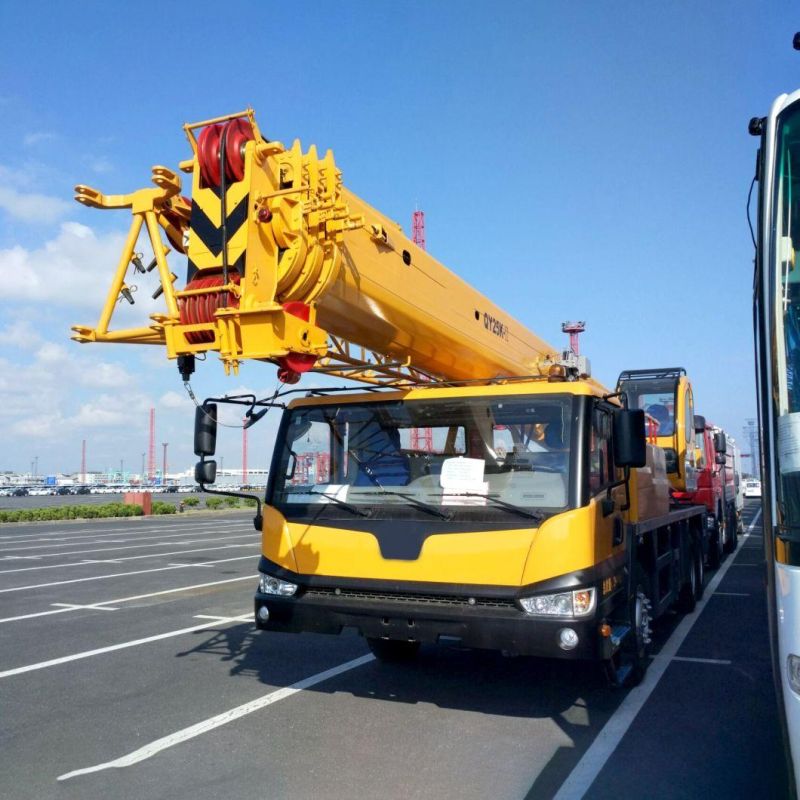

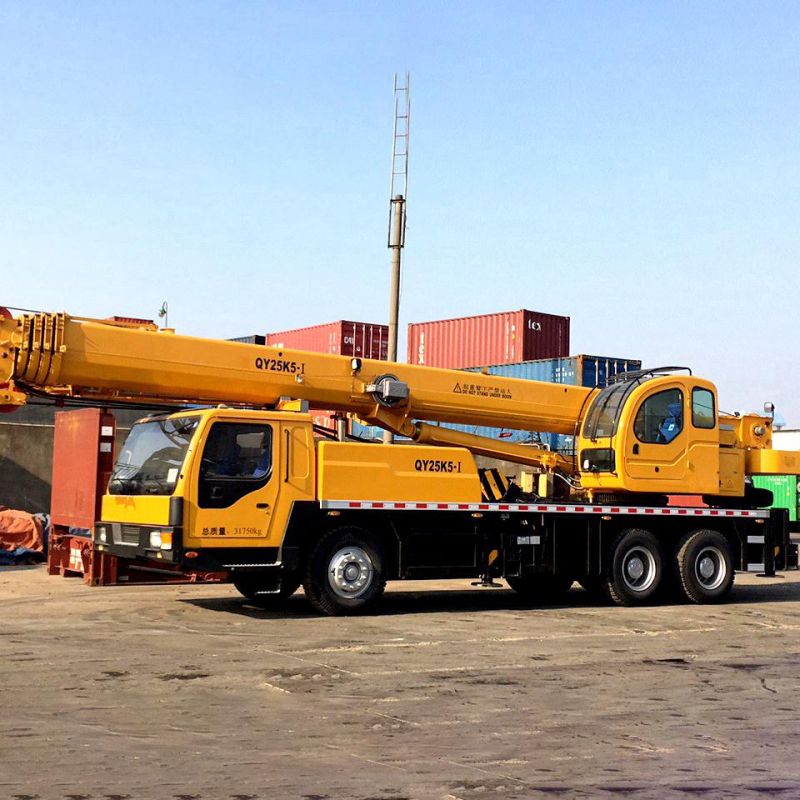

China brand new 25ton mobile crane QY25K5D truck mobile crane in Uzbekistan
Oriemac QY25K5D-1 truck crane is a truck crane with a rated lifting capacity of 20~70t manufactured . The rated total lifting capacity of QY25K5D-1 is 25 tons.QY25K5D-1 truck crane is the product with high reliability inheriting Oriemac classical and advanced technology about design and manufacture truck crane of many years and based on mature technology.
Special truck crane chassis designed and manufactured by our company, all covered working surface and classic K-series appearance outline are equipped.
The operations of crane are very simple, convenient and flexible. It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
| Parameter item | QY25K5D-1 |
| Basic arm length (mm) | 10800 |
| Extension (mm) | 1724 (Xugong Automobile)/ 1711 (Qixing, Hubei) |
| Chassis length (mm) | 10833/10846 |
| Outrigger span (mm) | Vertical 5500 Horizontal 6400 |
| Wheelbase (mm) | 4500/1350 |
| Wheelbase (mm) | 2059/1834 |
| Overall length (mm) | 13007 |
| Overall width (mm) | 2550 |
| Overall height (mm) | 3490 |
| Approach angle (°) | 11 |
| Departure angle (°) | 13.5 |
| Curb weight (kg) | 33270 |
| Self-disassembly and assembly balance weight (kg) | |
| Engine Model | 1.SC9DF300.1Q5 2.MC07H.32-50 |
| Engine rated power/speed (kw r/min) | 1.221/2200 2.235/2200 |
| Working range*Maximum rated lifting capacity (m*t) | 3*25 |
| Maximum lifting moment of basic boom (kN·m) | 1148 |
| Longest main boom (m) | 43 |
| Main boom raising time (s) | 52 |
| Main boom raising time (s) | ≤38 |
| Full extension time of main boom (s) | ≤100 |
| Main lifting speed (four layers without load) (m/min) | ≥135 |
| Maximum rotation speed (r/min) | ≥2.5 |
| Maximum driving speed (km/h) | ≥80 |
| Maximum climbing ability (%) | ≥40 |
