Qd Model Heavy Duty Double Girder Overhead Crane

Henan Kuangshan Crane Co., Ltd.
  • Certification：CE, ISO9001: 2000, GOST
  • Condition：New
  • Operation Form：Air Operation+Ground Operation
  • Maximum Lifting Height：25-30m
  • Maximum Lifting Weight：40t-320t
  • Main Girder Form：Double Girder

Base Info

  • Model NO.：QD
  • Type：Double Beam Crane
  • Max. Lifting Load：320,80t
  • Working Duty：A5~A6
  • Crane Traveling Limited Switch：Include
  • Weight Overload Protection Device：Include
  • Motor：Ngp
  • Power Source：380V~480V
  • Installation：Assembled
  • Transport Package：High Quality Plastic Woven Cloth!
  • Specification：GB,T3695-2008
  • Trademark：KUANGYUAN
  • Origin：Xinxiang City, China
  • HS Code：84261120
  • Production Capacity：4000sets,Year

Description

ifting Capacity   T51016/3.220/5.025/5.032/5.050/10.0Span M10.5-31.5Lifting height(M)Main Hook1616161212/11.01612Aux Hook  181114/131816Speed(M/min)hoistMain hookA512.58.57.97.27.37.85.9A615.513.3139.79.89.57.8Aux hook   14.512.712.719.513.2Trolley traveling37.243.844.644.63742.438.5Bridge travelingA589.8 /92.389.8-91.984.7-87.684.7/ 87.685.5/8874.2-87.674.6A6116.2/ 117.4112.5-116.8112.5112.5/ 101.4112/ 101.486.8-101.487.3Weight(Kg)TrolleyA5212634246227685671851087715425A6222435626427718078561165215765Total WeightA512715-3140514270-3440519128-3942819947-4149720795-4279626901-5274835317-64880A612991-3159614719-3469920045-4131520984-4422522632-1632428061-5527236075-67242Max Wheel Load KNA574-125102-160141-205163-231185-255237-327333-450A675-126104-162145-211167-239189-263242-335336-457Rail recommendedTrolley15kg/m43kg/mBridge43kg/mQU70QU80Power Source380V 50HZ 3Phase or based on your request

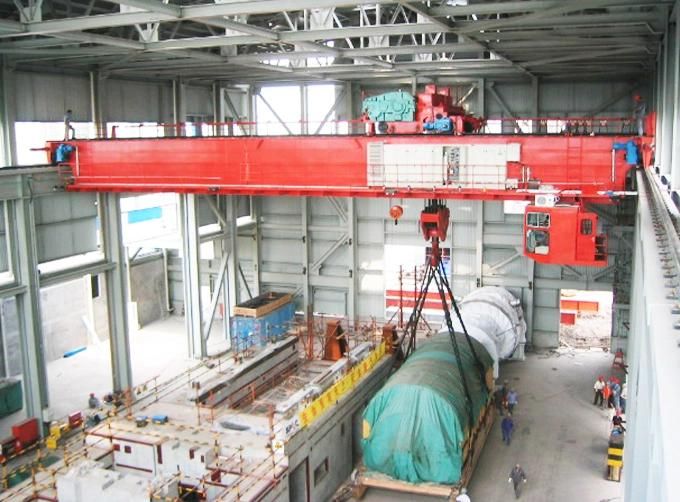

Qd Model Heavy Duty Double Girder Overhead Crane

All types
LH type double girder electric hoist overhead crane:
Lifting capacity:3ton~50tons,Lifting height: Customized, Span: 10.5~31.5m, Working grade:A3,Working temperature: -20.C~45.C.
QD type double girder overhead hook crane:
Lifting capacity:5ton ~ 800tons,Lifting height: Customized, Span: 10.5~31.5m, Working grade:A3~A8,Working temperature: -20.C~45.C.
QDY type double girder casting overhead hook crane:
Lifting capacity:5ton ~ 74tons,Lifting height: Customized, Span: 10.5~31.5m, Working grade:A7,Working temperature: -20.C~60.C.
YZ type casting overhead crane:
Lifting capacity:75ton ~ 320tons,Lifting height: Customized, Span: 19~28m, Working grade:A7,Working temperature: -20.C~60.C.
QB type explosion-proof overhead crane:
Lifting capacity:5ton ~ 50tons,Lifting height: Customized, Span: 10.5~31.5m, Working grade:A5,Working temperature: -20.C~60.C.
Double girder grab overhead crane:
Lifting capacity:5ton ~ 20tons,Lifting height: Customized, Span: 10.5~31.5m, Working grade:A6,Working temperature: -20.C~60.C.

Main product showcase
Qd Model Heavy Duty Double Girder Overhead Crane

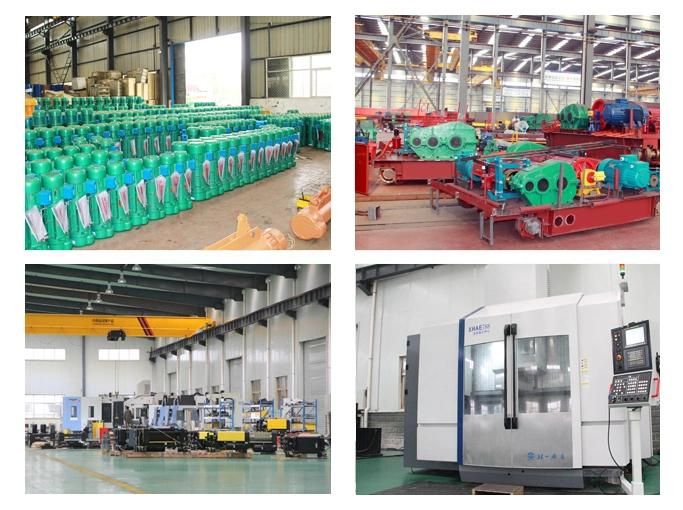

Processing Facility
Qd Model Heavy Duty Double Girder Overhead Crane

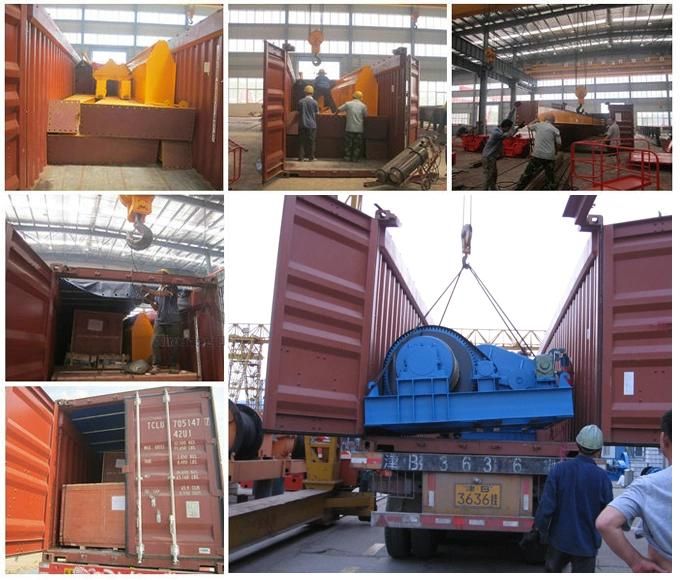

Packaging & shipment

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.

2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.

3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
