High Performance Qy25K5-1 Pickup 25ton Truck Crane

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • After-sales Service：Support
  • Warranty：Support
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：QY25K5-1-1
  • Shaft Number：3
  • Crane Jib：Five-Arm
  • Type：Straight Arm
  • Total Weight in Travel：31750kg
  • Front Axle Load：6550kg
  • Rear Axle Load：25200kg
  • Max. Travel Speed：80km,H
  • Min. Turning Diameter：22m
  • Min. Ground Clearance：260mm
  • Max. Grade Ability：40%
  • Min. Rated Working Radius：3000mm
  • Max. Lifting Torque：961kn.M
  • Base Boom：10.4m
  • Fully Extended Boom：39.5m
  • Fully Extended Boom+Jib：47.8m
  • Lateral Outrigger Span：6m
  • Transport Package：Nun
  • Specification：12300*2500*3350mm
  • Trademark：X-
  • Origin：China
  • HS Code：87051091
  • Production Capacity：1000,Year

Description

DimensionUnitQY25K5-IOverall lengthmm12300Overall widthmm2500Overall heightmm3350Weight  Total weight in travelkg31750Front axle loadkg6550Rear axle loadkg25200Power  Engine model SC8DK280Q3WD615.329Engine rated powerkW/(r/min)206/2200213/2200Engine rated torqueN.m/(r/min)1112/14001160/1400Travel  Max. travel speedkm/h80Min. turning diameterm22Min. ground clearancemm260Approach angle°16Departure angle°13Max. grade ability%40Fuel consumption for 100kmL≈37Main performance  Max. rated total lifting capacityt25Min. rated working radiusmm3000Turning radius at turntable tailm3.065Max. lifting torquekN.m961Base boomm10.4Fully extended boomm39.5Fully extended boom+jibm47.8Longitudinal outrigger spanm5.14Lateral outrigger spanm6Working speed  Boom luffing times68Boom full extension times150Max. swing speedr/min2.5Max. speed of main winch (single rope) (no load)m/min125Max. speed of aux. winch (single rope) (no load)m/min125
Pictures:

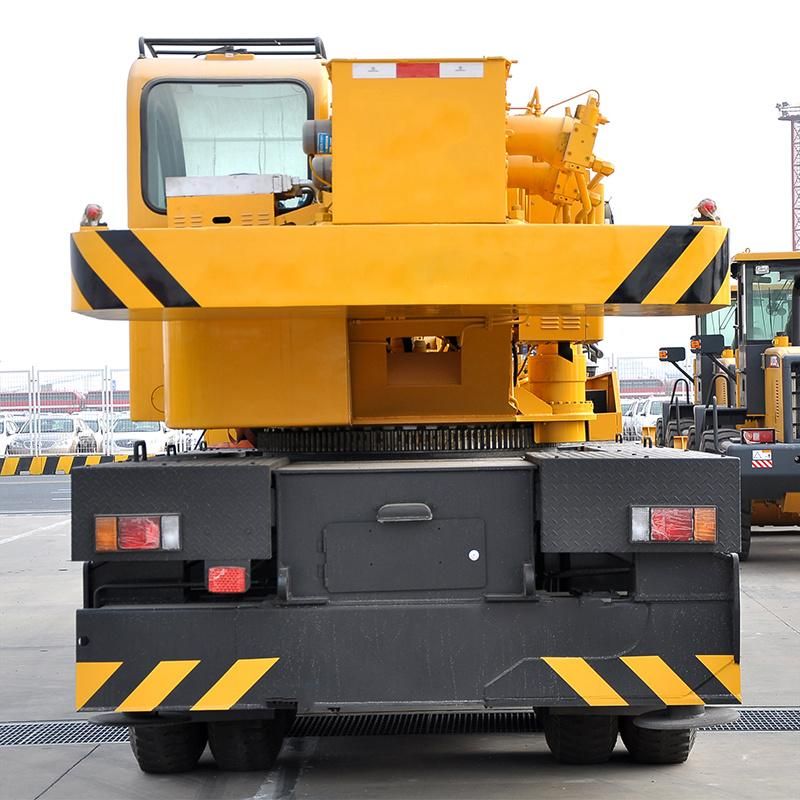

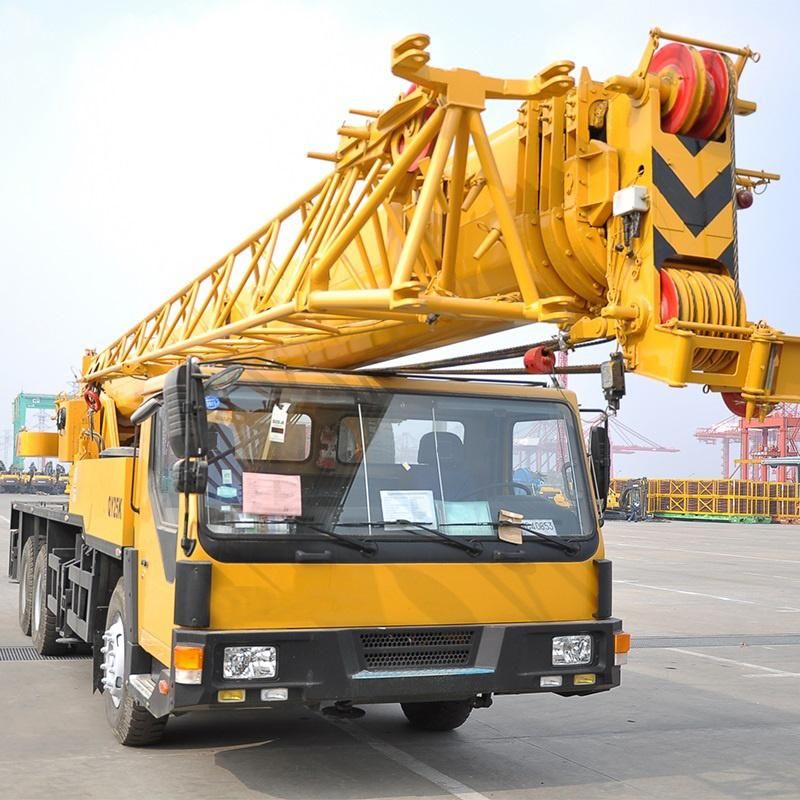

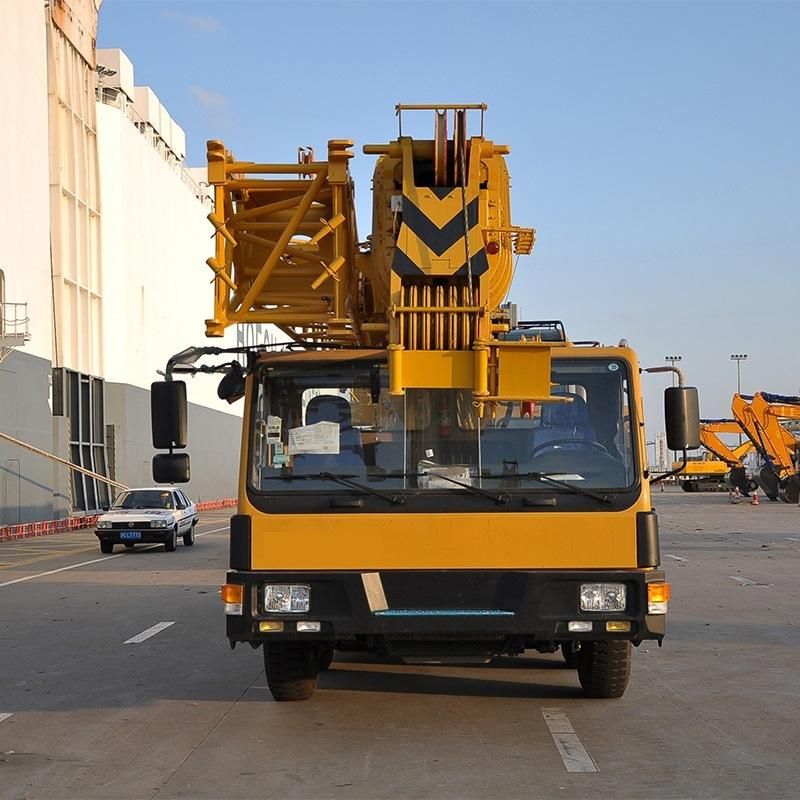

High Performance Qy25K5-1 Pickup 25ton Truck CraneHigh Performance Qy25K5-1 Pickup 25ton Truck CraneHigh Performance Qy25K5-1 Pickup 25ton Truck Crane
